123.1 How to use RabbitMQ Outbound Adapter for CSV Payload format?

Rabbit MQ differs from Active MQ and other message brokers in a way that we need to post a message to an Exchange provided by it. This Exchange will then forward the message to a queue or topic based on the routing key property. This adapter supports 3 types of data formats i.e. CSV, XML, and JSON. [su_box title="Note" box_color="#2a8af0" title_color="#000000"] We can check CSV Data on RabbitMQ Server:  Link:http://18.197.54.48:15672/#/queues. Where exchange will be automatically created once you callout code. [/su_box]

UseCase: Agent RabitMQ Adapter for CSV payload.

Objective: Test rabbitMQ outbound adapter for CSV Format

Pre-requisite:

• Create Integration.
• Create Metadata Provider, IStructure Repository, and Create Flat Message Type.

Example:

• Metadata Provider:Agent_ActiveMQ_RabbitMQ_JMS_Metadata

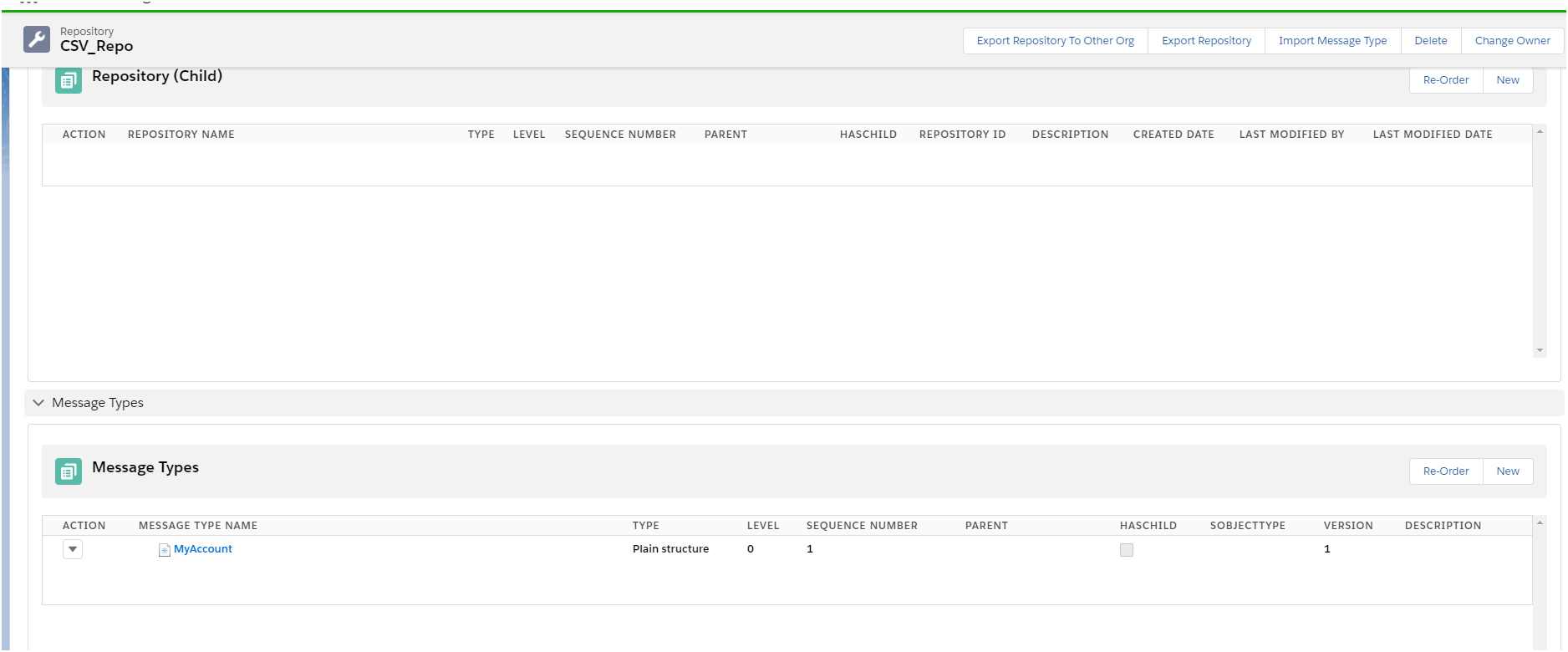

• IStructure Repository:CSV_Repo
• Message Type:MyAccount

Steps:

Step1:To Create Agent RabbitMQ CSV Outbound Adapter:

• Go to Integration (Example: Agent_RabbitMQ_Integration)
• Click on link AGENT Control Board.
• Go to Adapter Tab and Click on New Button.

Input values for Mandatory Properties

• exchangeType - Direct
• exchangeName - It can be anything. For example: CamelA
• host- String type. Denotes the IP address of the Rabbit MQ server.
• port- String type. Denotes the port number of the Rabbit MQ server.
• routingKey - String type. It can be anything.

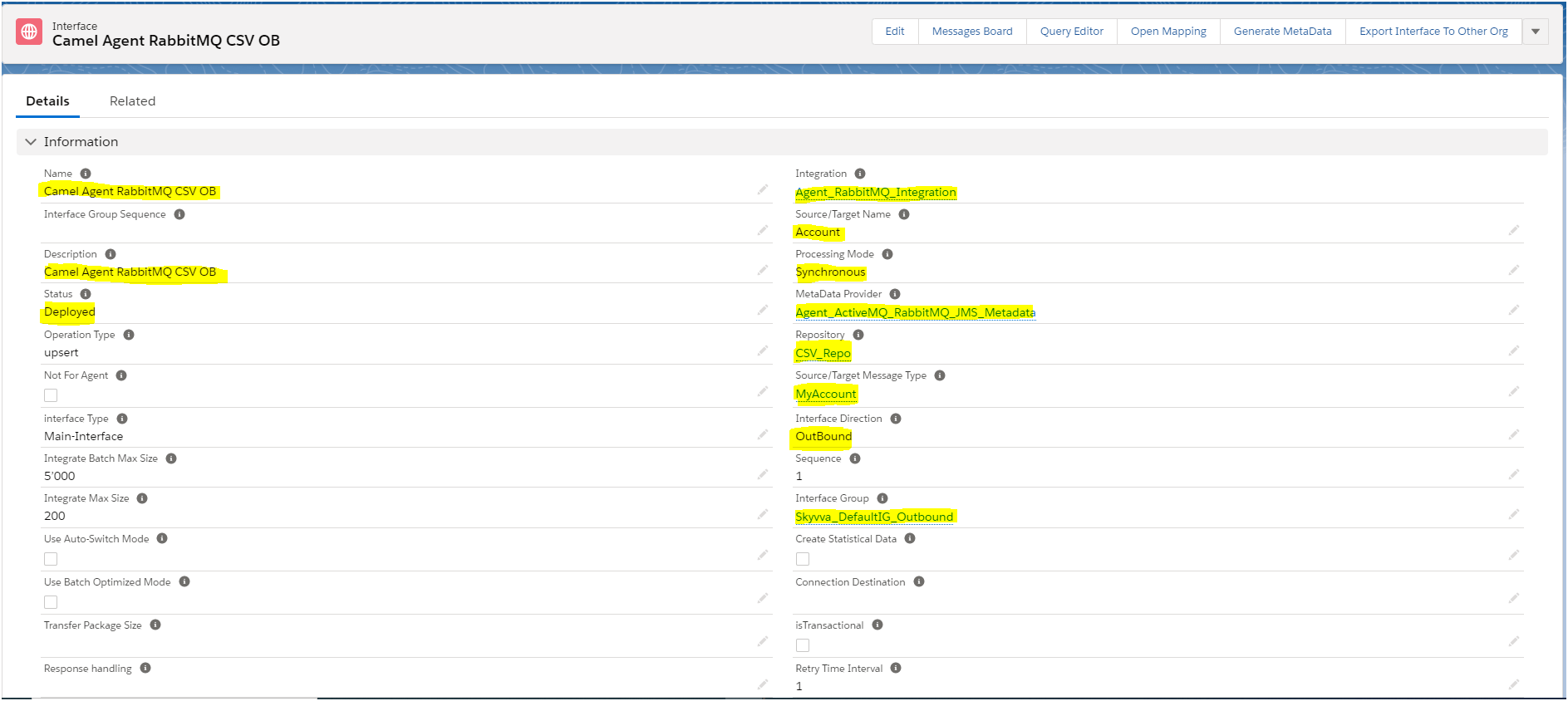

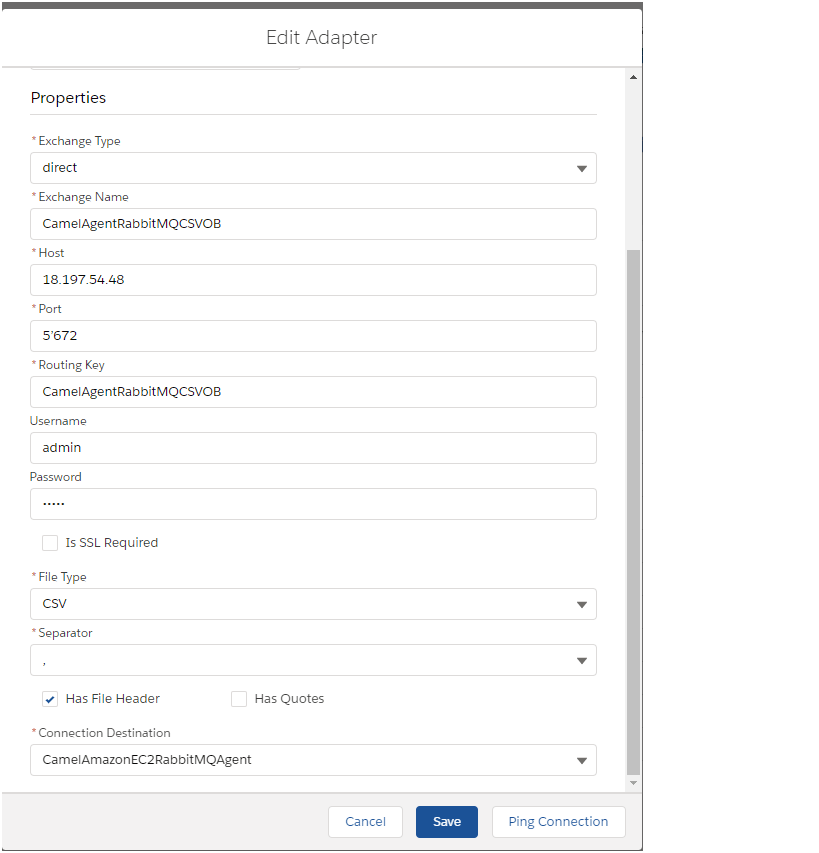

Configure Agent RabbitMQ CSV Outbound Adapter: you need to enter adapter properties base on system requirement and Select Connection Destination (Example:CamelAmazonEC2RabbitMQAgent). Step2: Create Outbound Interface: Example:

• Integration: Agent_RabbitMQ_Integration
• Outbound Interface: Camel Agent RabbitMQ CSV OB

step3: Link Outbound Adapter: Camel Agent RabbitMQ CSV OB

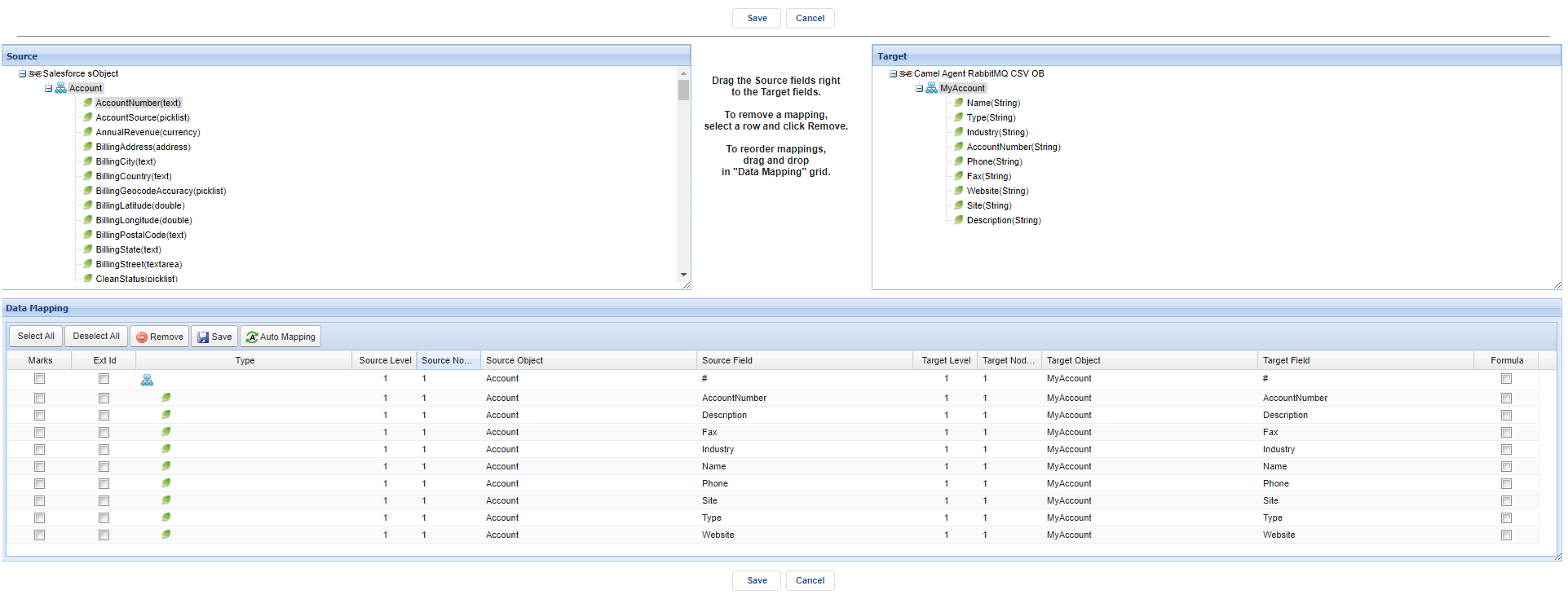

step4: Do mapping and save it.

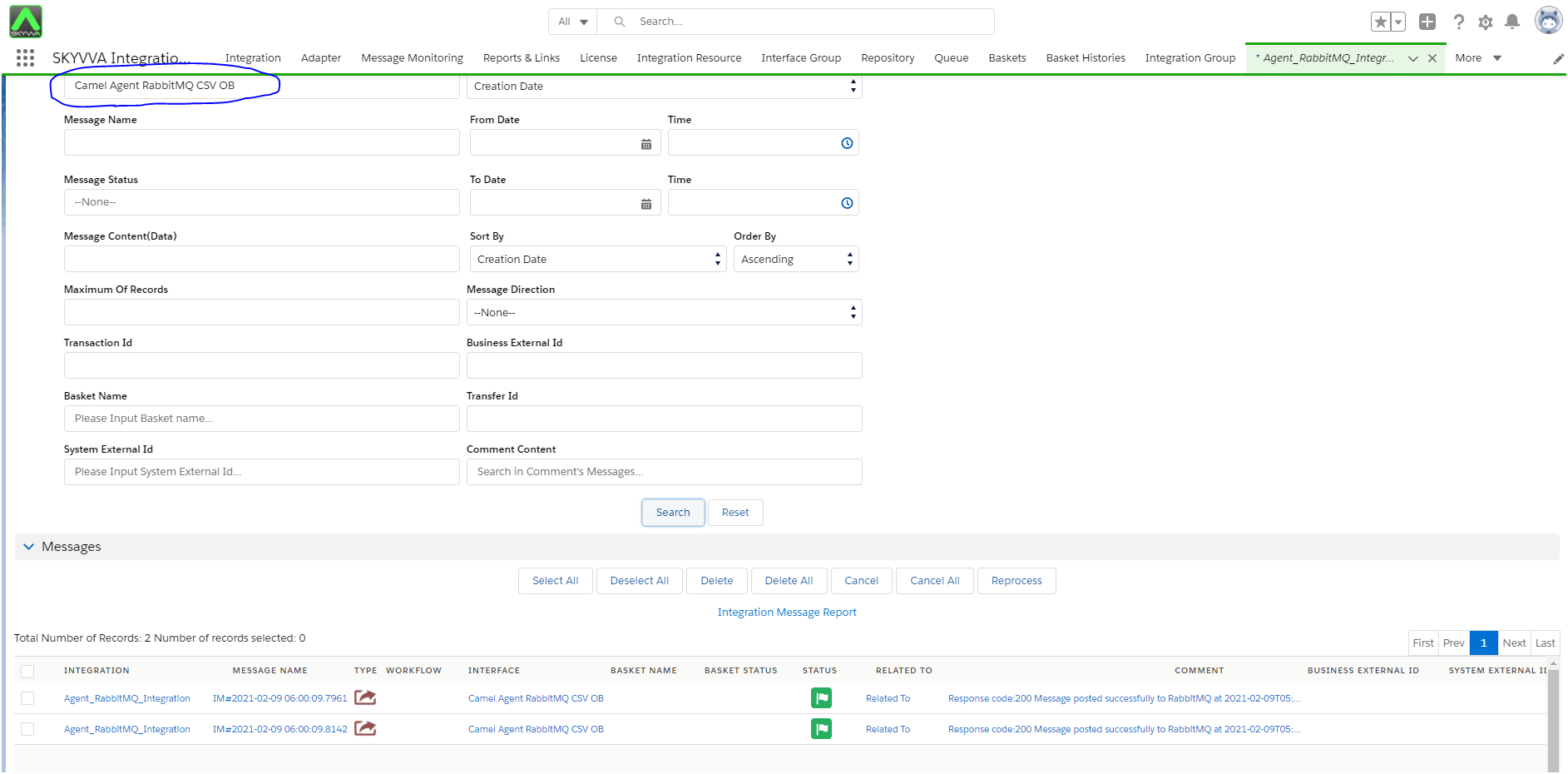

Step5: Go to Developer console and callout: Callout: skyvvasolutions.CallOutControl c = new skyvvasolutions.CallOutControl(); c.returnJSONComplete=true; c.actionDoIntegrate=false; c.isCreateMessage=true; String[] ids= new String[]{'0011j000011qHW8AAM','0011j000011qHW9AAM'}; List result = skyvvasolutions.Iservices.invokeCalloutV3('Agent_RabbitMQ_Integration','Camel Agent RabbitMQ CSV OB',ids,'SYNC',c); Step5: Check result on Message Monitoring:

RabbitMQ Server:

Check CSV Data on RabbitMQ Server:

• Open Link:http://18.197.54.48:15672/#/queues
• Username: admin
• Password: admin

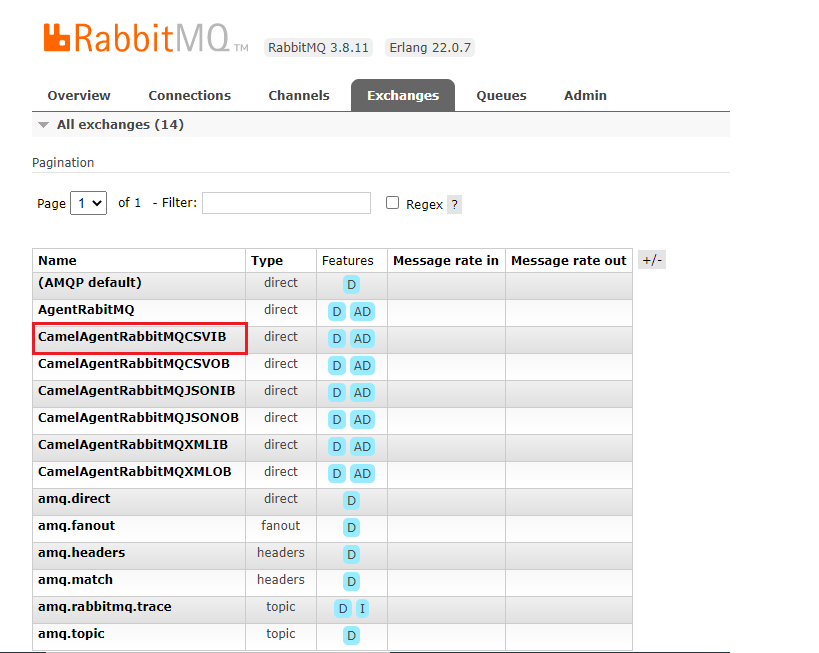

Go to Exchange

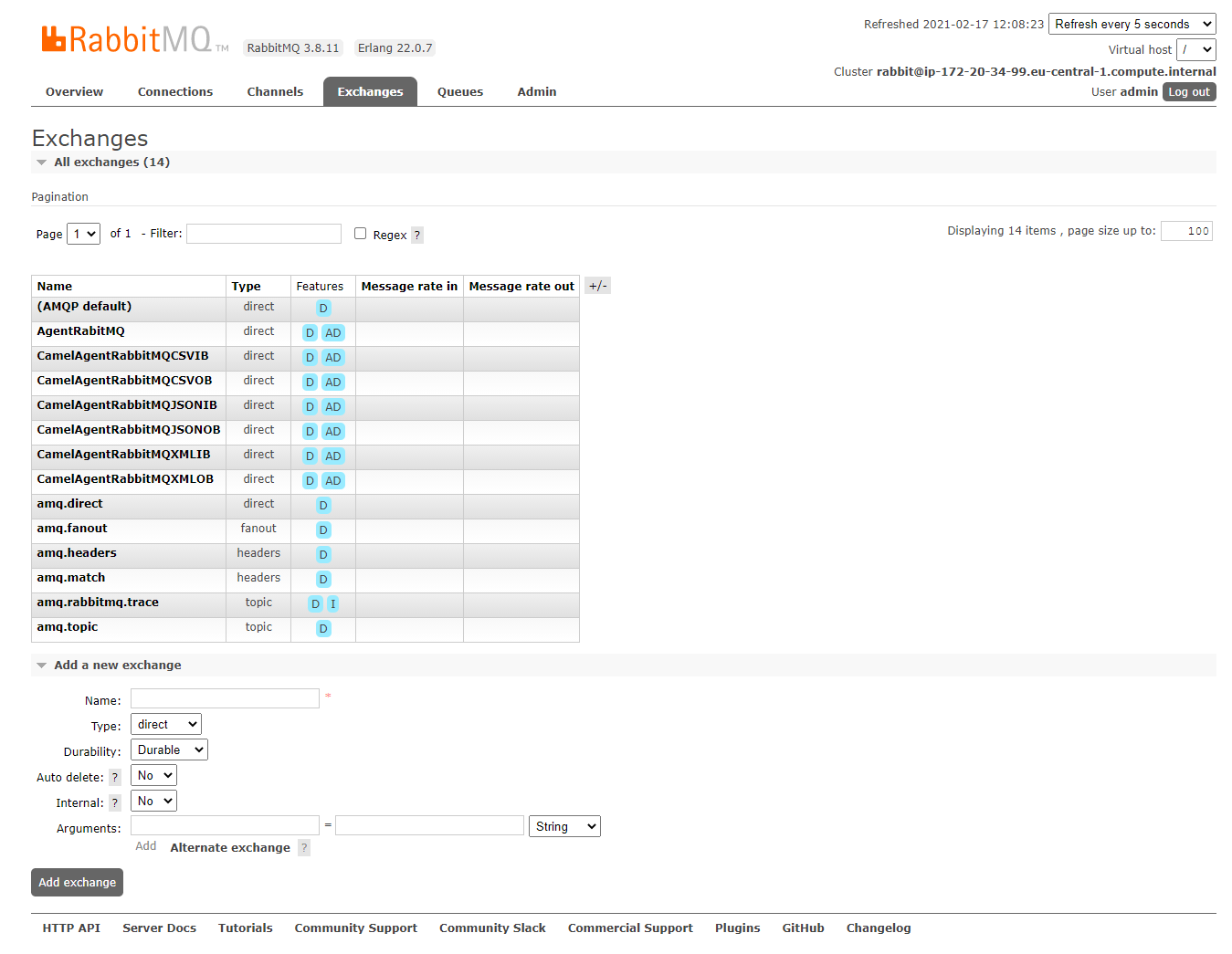

After V3 Callout new Exchange is generated Example: CamelAgentRabbitMQCSVOB (Note: CamelAgentRabbitMQCSVOBExchange name is coming from adapter configuration)

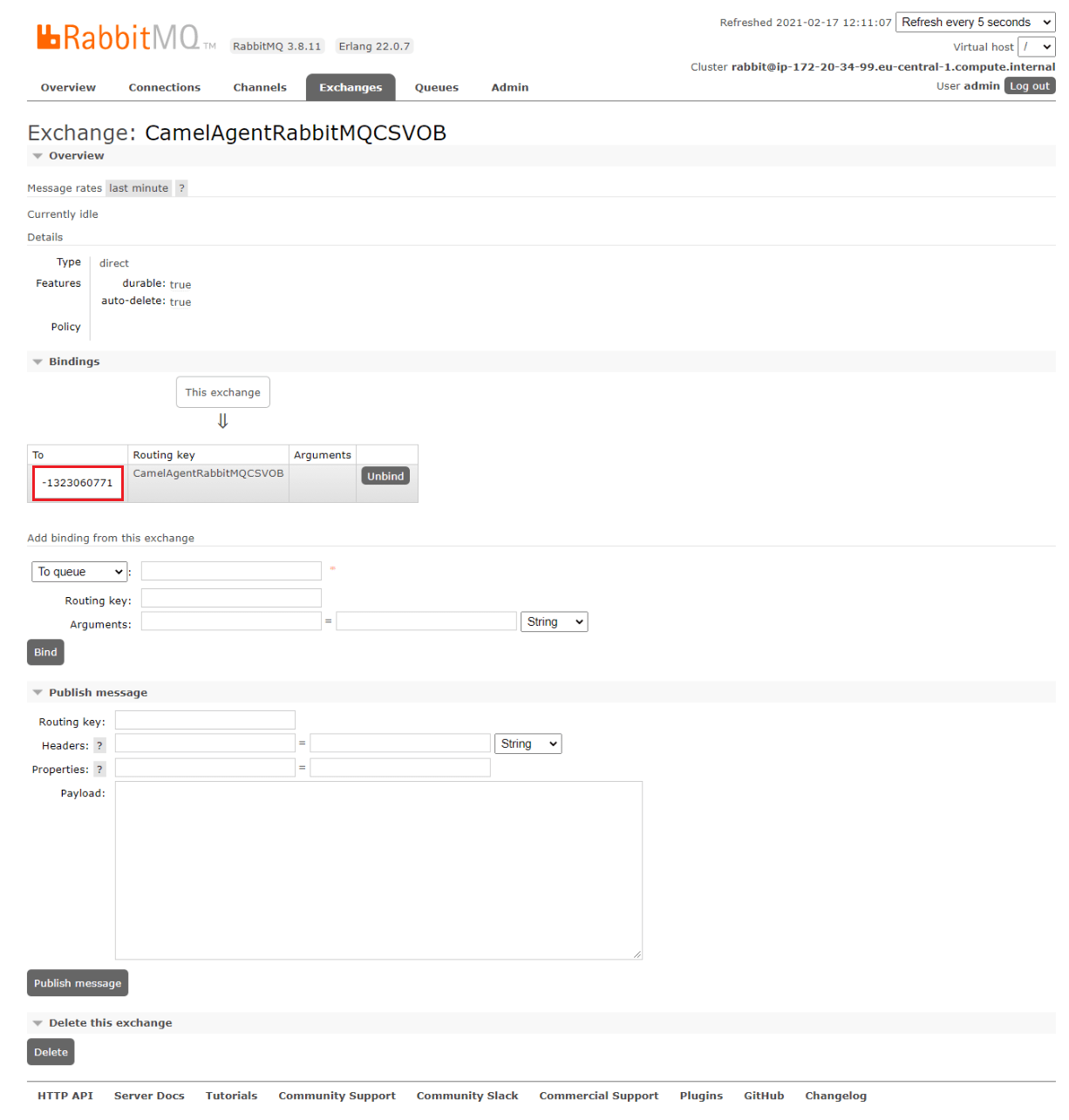

  Click on the Exchange name, It will redirect you to the Exchange detail page.

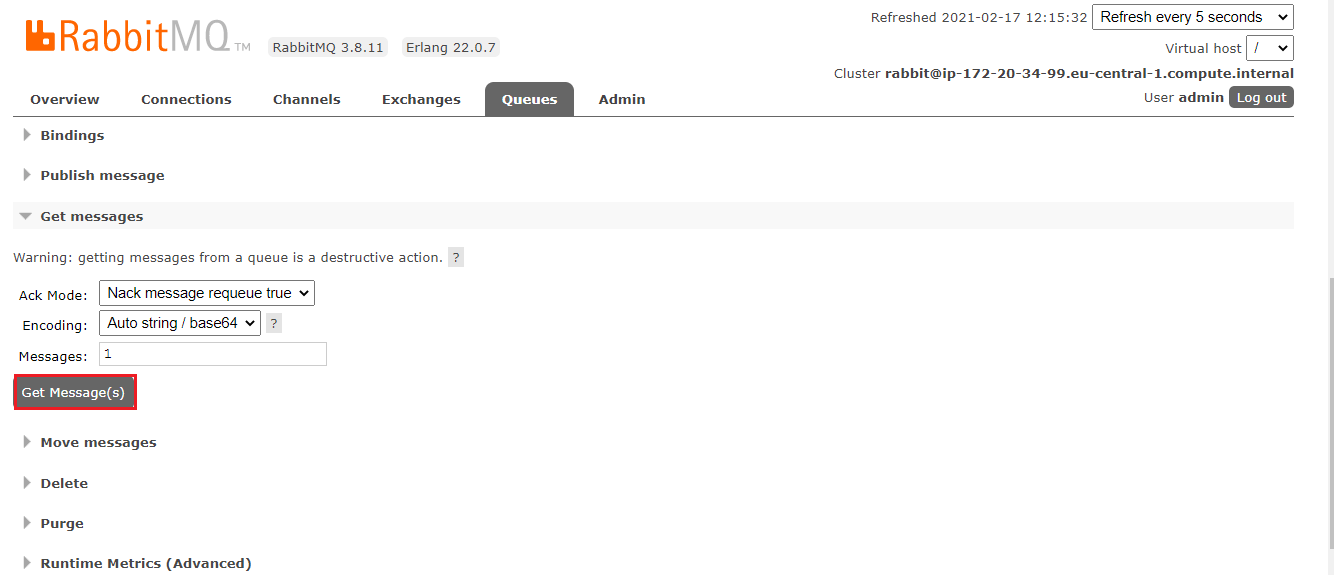

Click on Queue -1323060771 It will navigate to the get the message section.

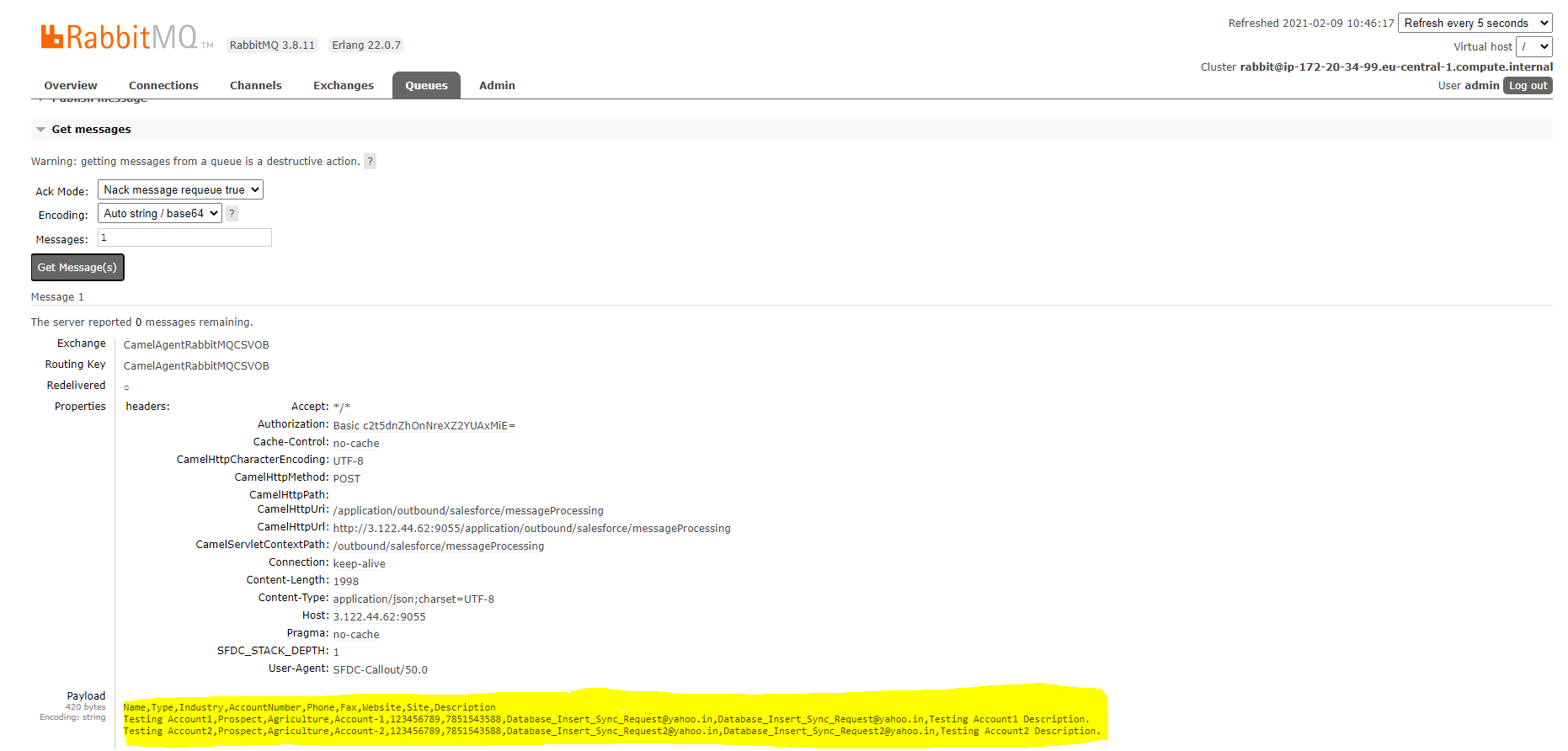

• Go to Get Messages block
• and click on Get Messages button.
