124. How to develop inbound interface to consume message from RabitMQ queue?

Rabbit MQ differs from Active MQ and other message brokers in a way that we need to post a message to an Exchange provided by it. This Exchange will then forward the message to a queue or topic based on the routing key property. This adapter supports 3 types of data formats i.e. CSV, XML and JSON.

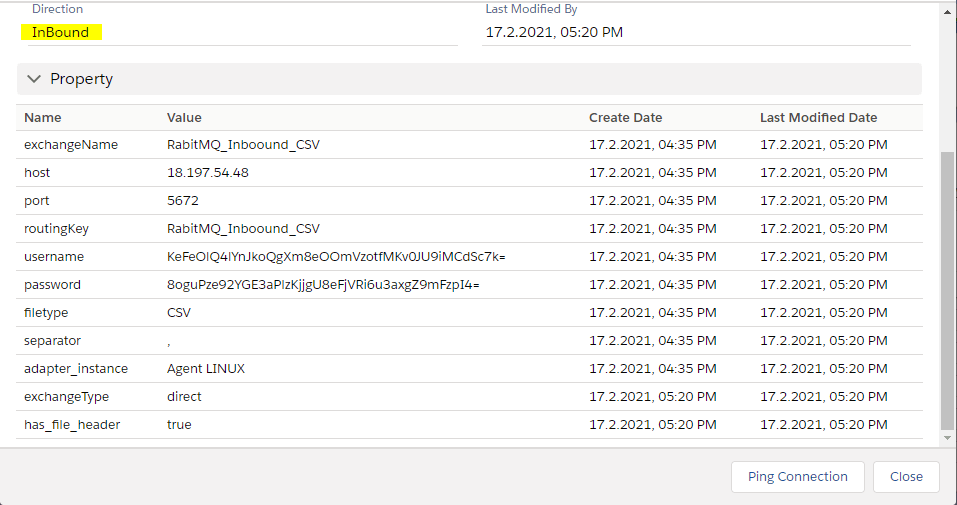

Mandatory Properties

• exchangeType - Pick List consisting of 4 values i.e. direct, topic, headers, fanOut. direct will be the default value. Its a String type value.
• exchangeName - Name of the exchange. Its a String type property.
• host- String type. Denotes the IP address of the Rabbit MQ server.
• port- String type. Denotes the port number of the Rabbit MQ server.
• routingKey - String type. Denotes the key with which an Exchange will bind in order to deliver or consume a message.

Common Properties

• username - String type. Contains the connection username.
• password - String type. Contains the connection password.
• isSSLRequired - Boolean. Default is false. Denotes whether to use SSL to connect to Message Broker.
• filetype - Pick List. Should contain CSV, XML, JSON, Binary & EXCEL
• separator - Pick list. Should contain following values , ; | Tab
• has_file_header - Boolean
• has_quotes - Boolean
• xmlRootTag- String type.

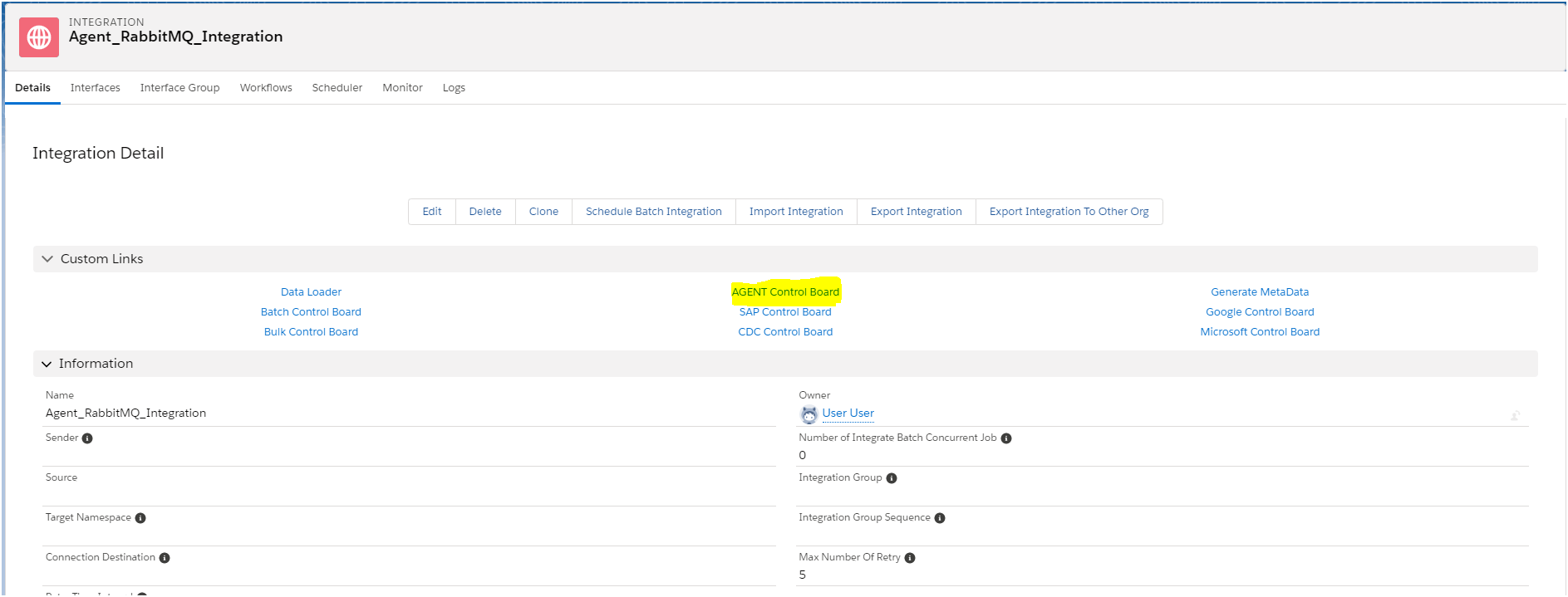

How to configure New Agent Control Board? To configure new agent control board follow the given steps: Step1: Create Integration. => Go custom Link => Clickon agent control board.

Step2: The custom link (Agent control board) Navigate to Dashboard of new agent control board.

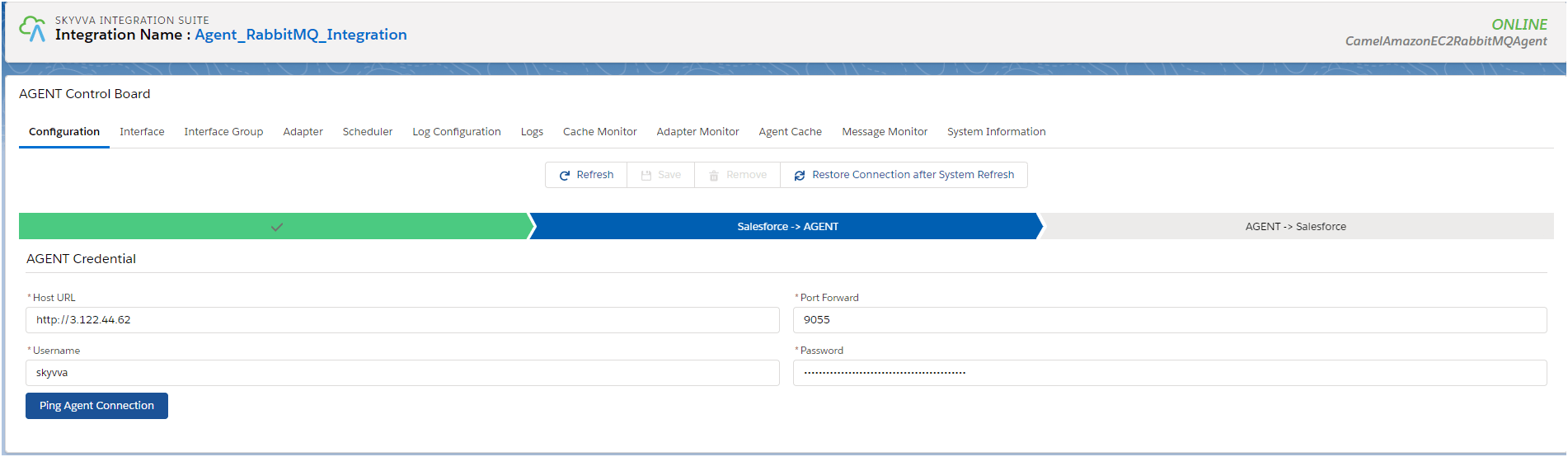

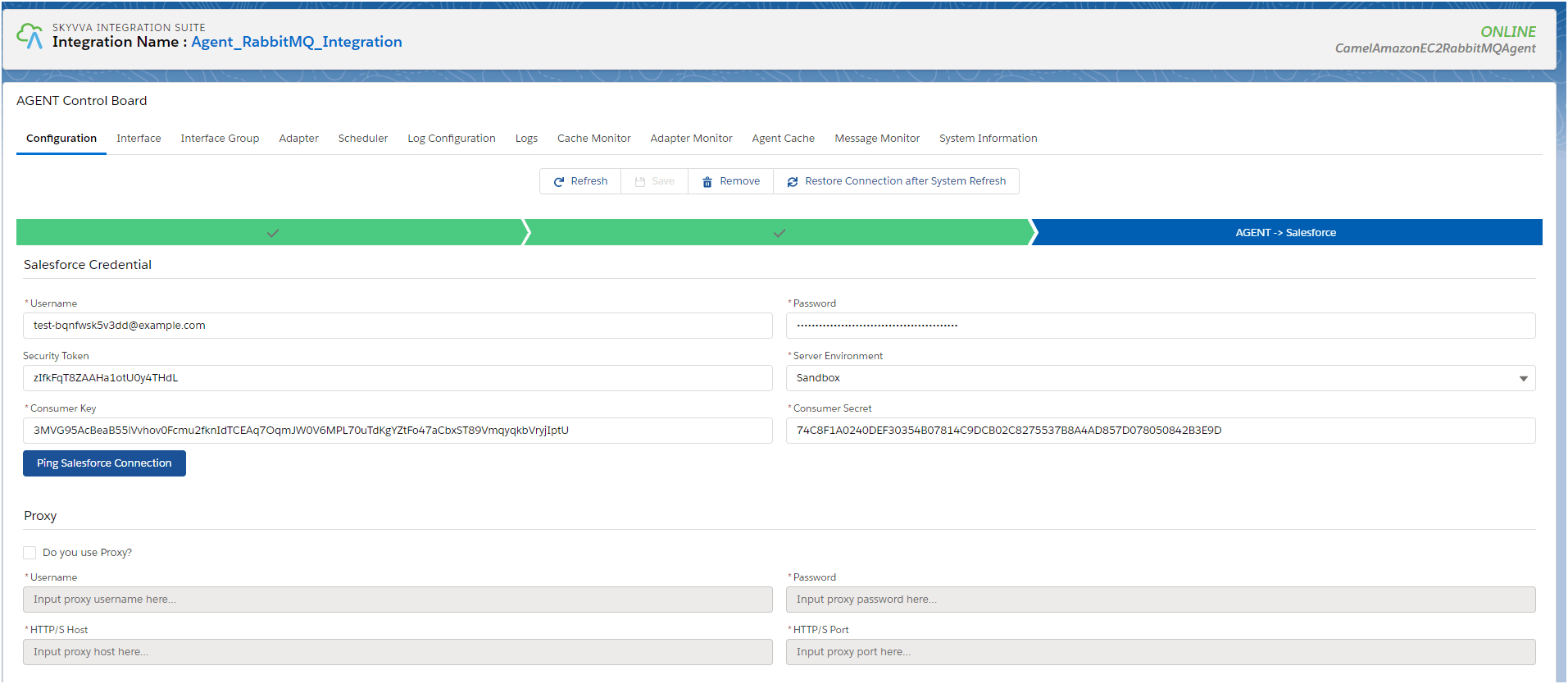

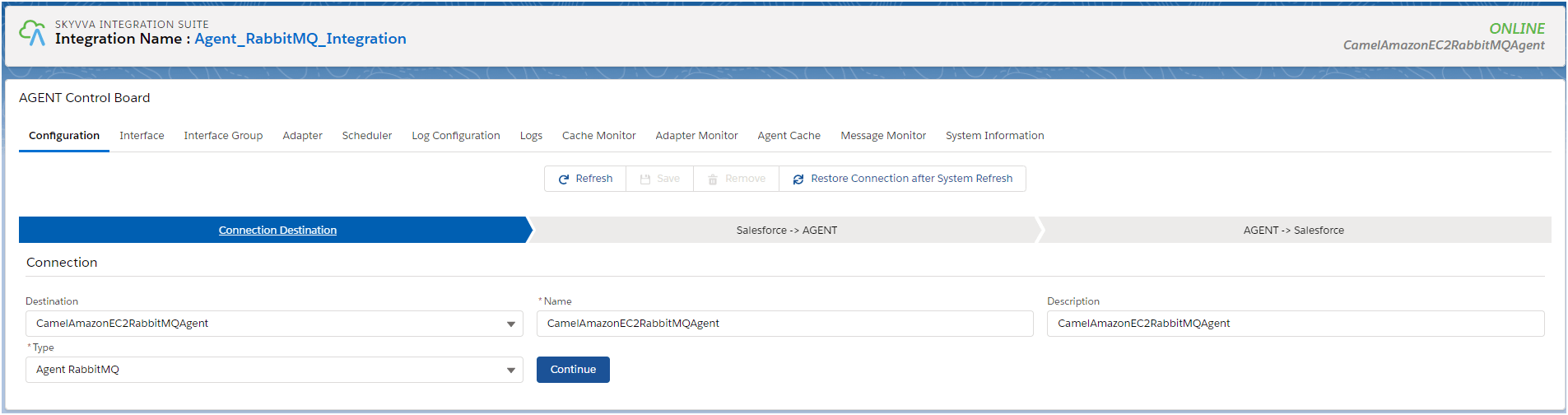

Step 3: Create your own " Connection destination file or you can select existing one". Then click on Ping connection button.  Make sure server is running.

Step4: Click on ping connection button to make it online.

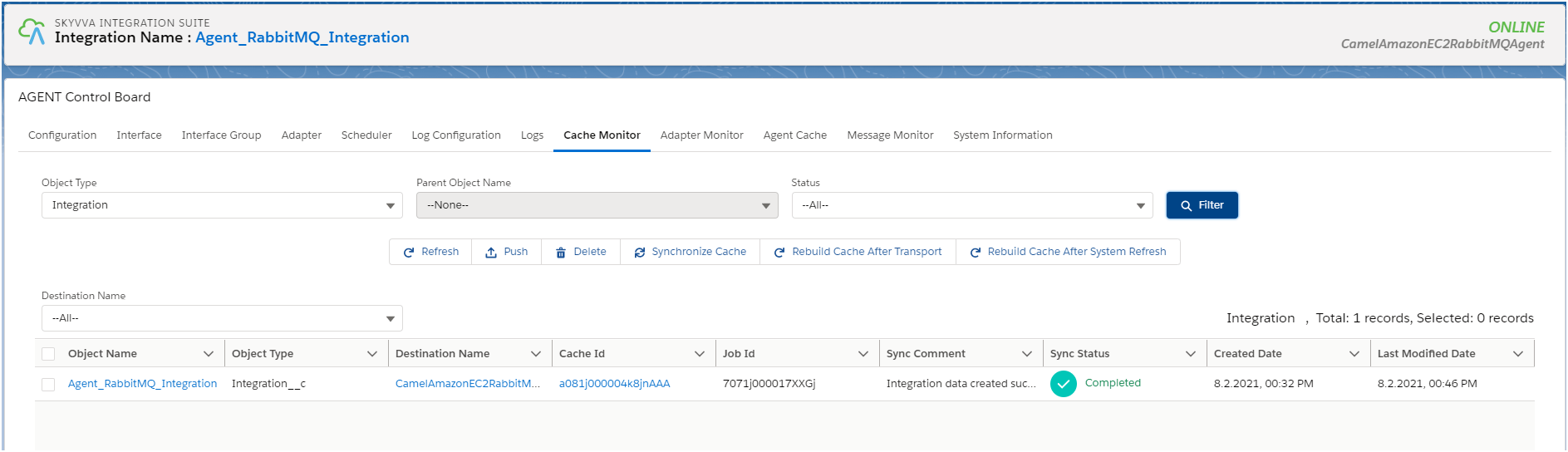

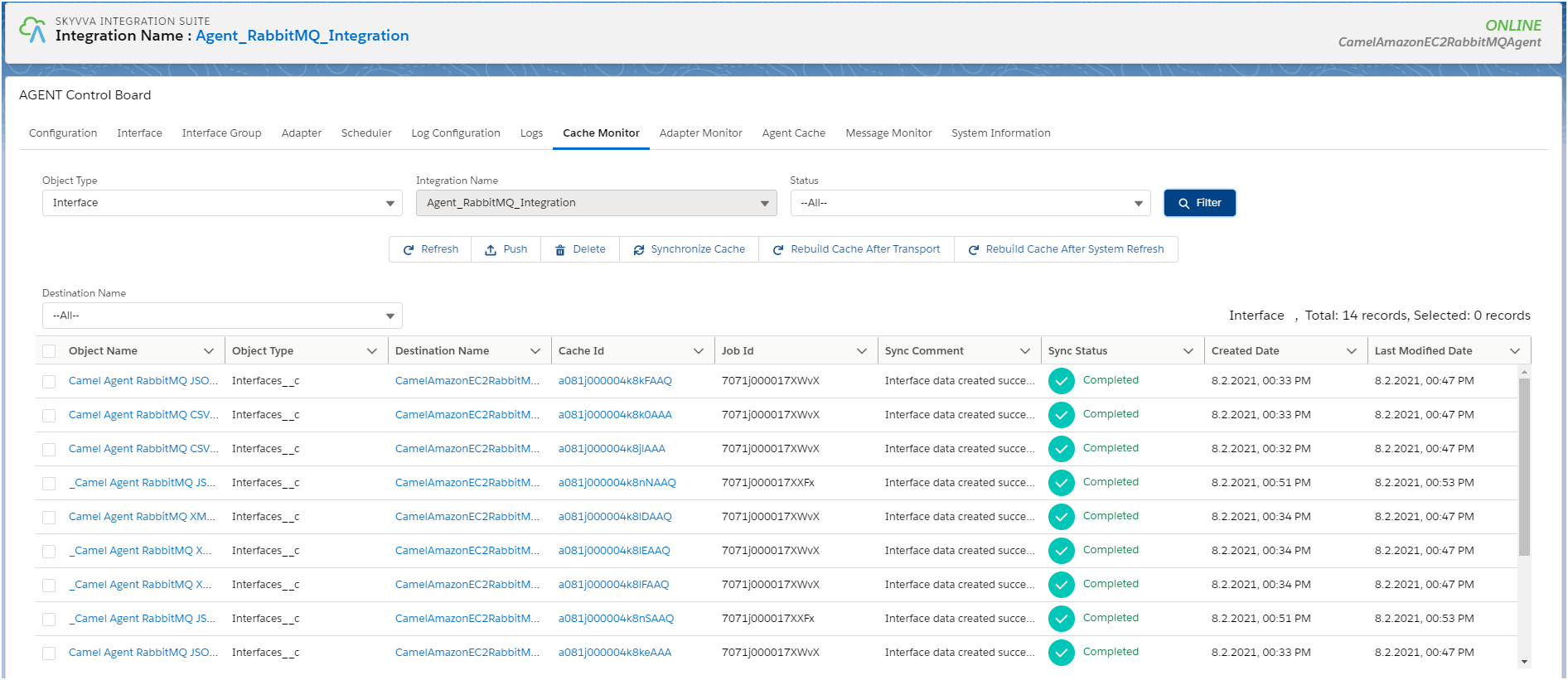

How to check caching New Agent Control Board: To check caching first you should create all the data. Integration:

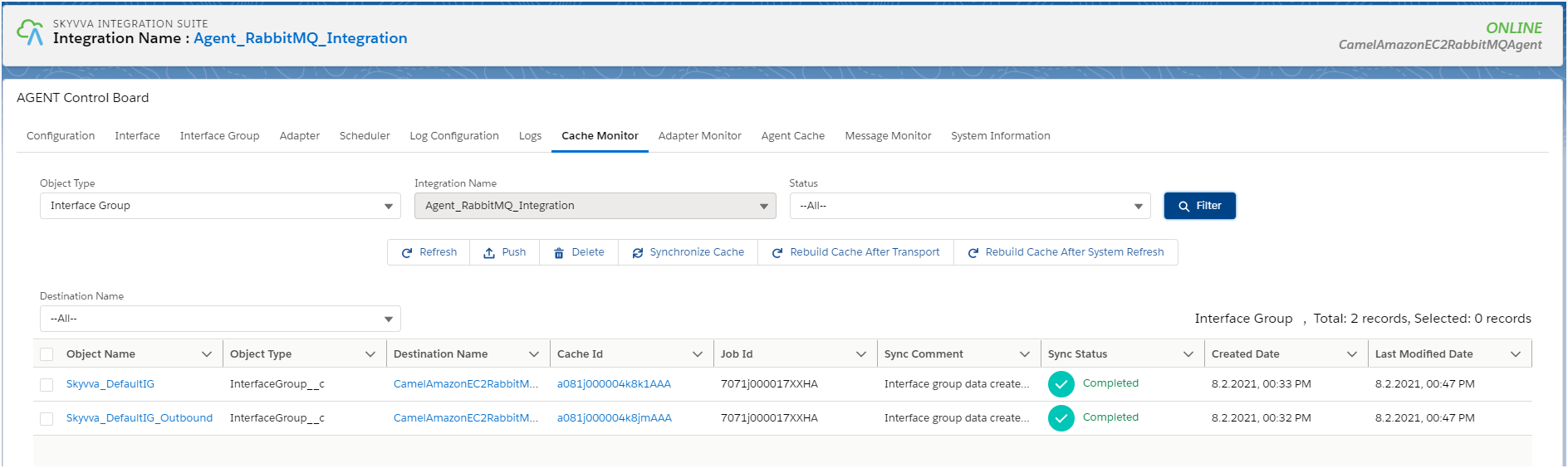

Interface Group:

Interfaces:

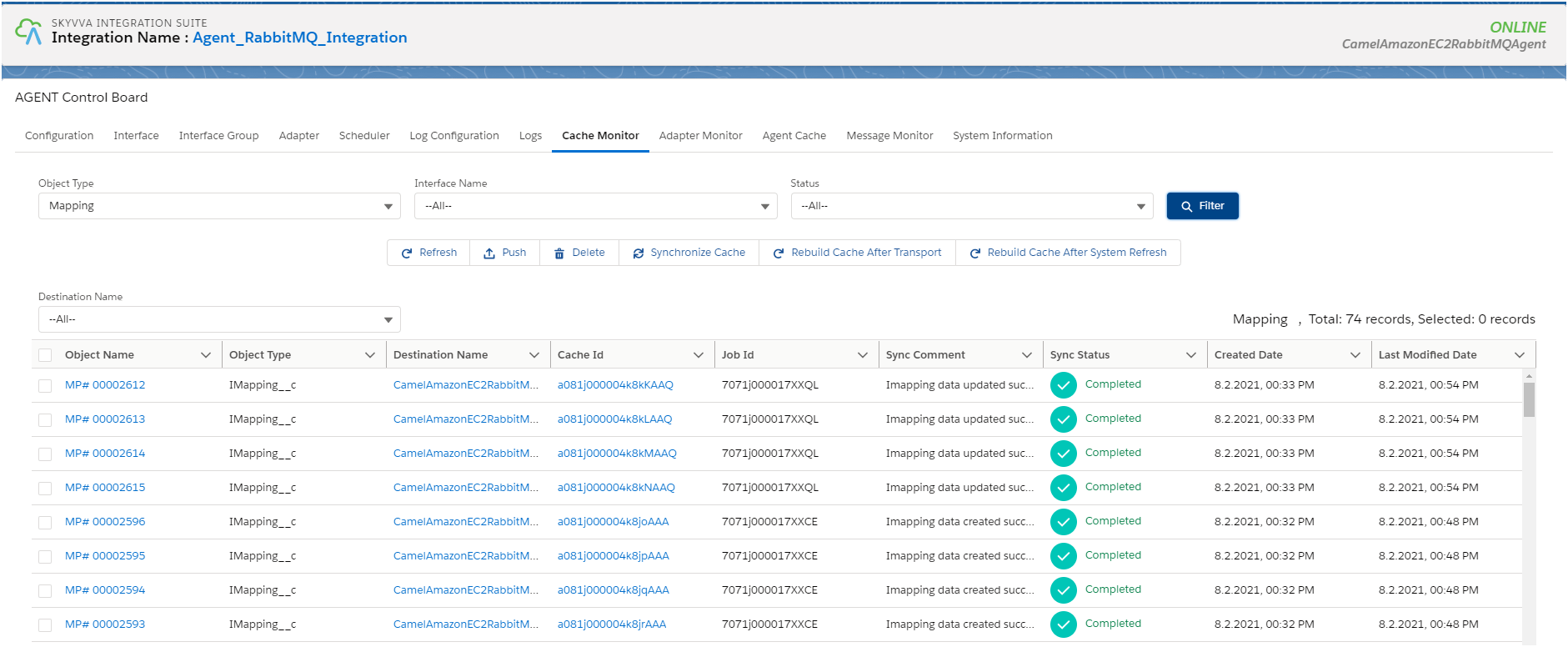

Mapping:

Here we are showing usecase with Flat CSV, Hierarchical XML and Hierarchical JSON payload format. Usecase with Flat CSV: Find the tutorial for "How to use RabbitMQ Inbound Adapter with CSV Payload?"
