126.3 How to use ActiveMQ Outbound Adapter with JSON Payload?

ActiveMQ adapter is used to send messages. Messages are just what they sound like, payloads of data that can be shipped between various systems. These payloads can have headers and properties associated with them This adapter supports 3 types of data formats i.e. CSV, XML and JSON.

UseCase: Agent ActiveMQ Adapter for JSON payload.

Objective: Test ActiveMQ Outbound adapter for JSON Format

Pre-requiste:

Create Integration.

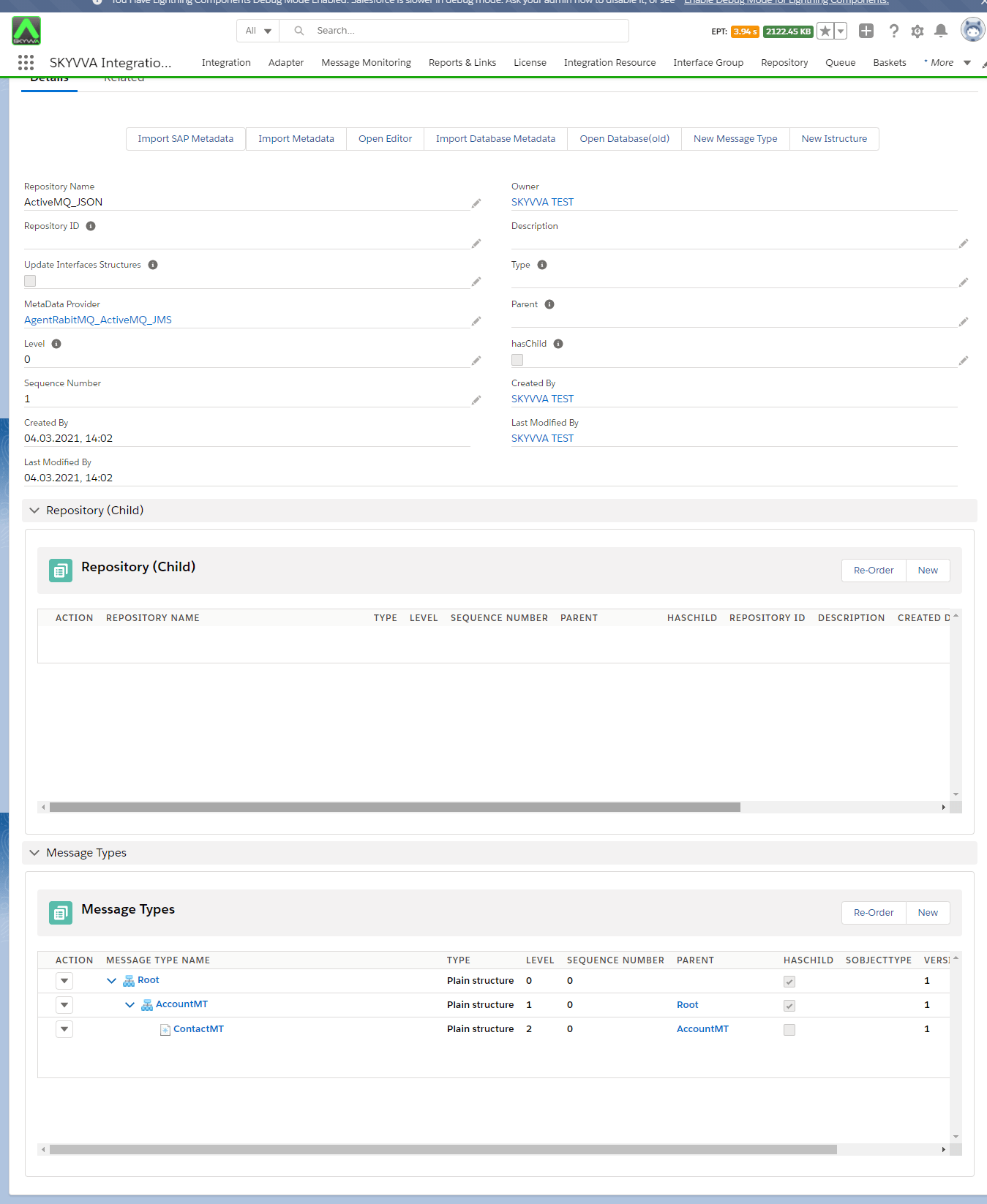

Create Metadata Provider, IStructure Repository and Create Flat Message Type.

Metadata Provider:Agent_ActiveMQ_RabbitMQ_JMS_Metadata
IStructure Repository: ACtiveMQJSON
Message Type:Root

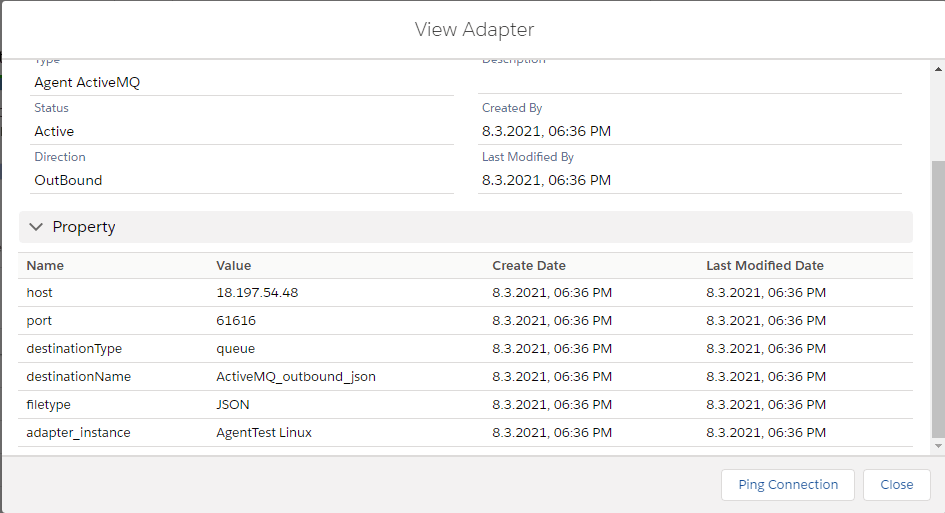

Step1:To Create Agent ActiveMQ Json Outbound Adapter:

Go to Integration (Example: Agent_new _adapter)
Click on link AGENT Control Board.
Go to Adapter Tab and Click on New Button.

Step2: How to Create Agent ActiveMQ Json Inbound Adapter:

Click on link AGENT Control Board.
Go to Adapter Tab and Click on New Button.

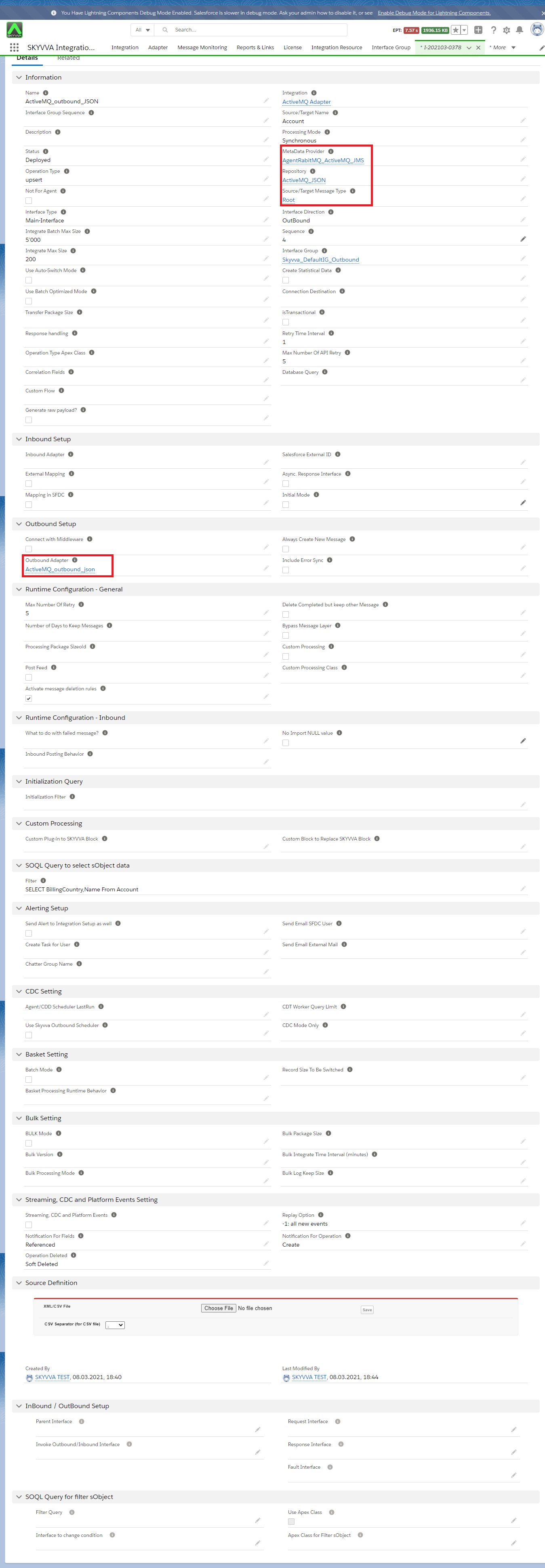

Configure Agent RabbitMQ CSV Inbound Adapter: you need to enter adapter properties base on system requirement and Select Connection Destination (Example:Agent LINUX). Step3: Create Integration and Outbound Interface:

Inbound Interface: ActiveMQ_Intbound_xml
Metadata: AgentRabitMQ_ActiveMQ_JMSCSV
Respository:RAbitMQCSV
MessageType:Root
Adapter: ActiveMQ_Outbound_JSON

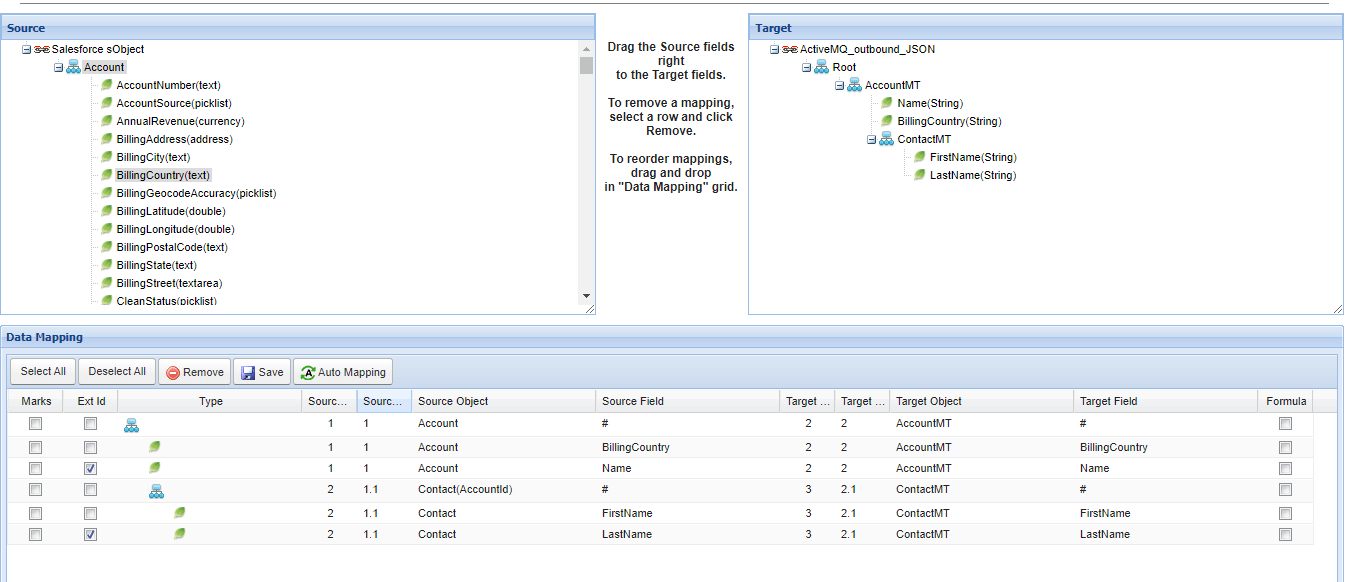

Step4: Do mapping

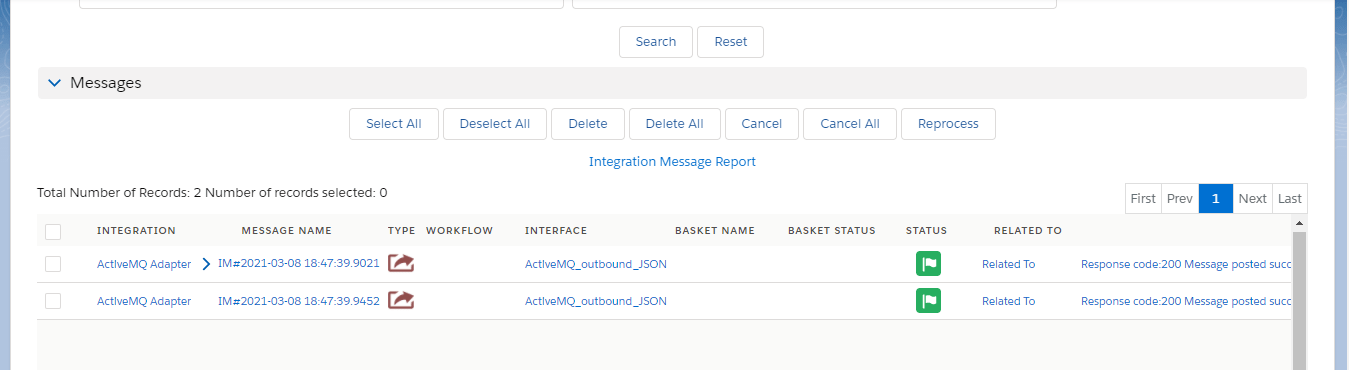

Callout: skyvvasolutions.CallOutControl c = new skyvvasolutions.CallOutControl(); c.returnJSONComplete=true; c.actionDoIntegrate=false; c.isCreateMessage=true; String[] ids= new String[]{'0011X00000nMy8jQAC','0011X00000nO1KoQAK'}; List result = skyvvasolutions.Iservices.invokeCalloutV3('ActiveMQ Adapter','ActiveMQ_outbound_JSON',ids,'SYNC',c); Step5: Check result on Message Monitoring:

ActiveMQ Server:

Check CSV Data on ActiveMQ Server:

Open Link: http://18.197.54.48:8161/admin
Username: admin
Password: admin

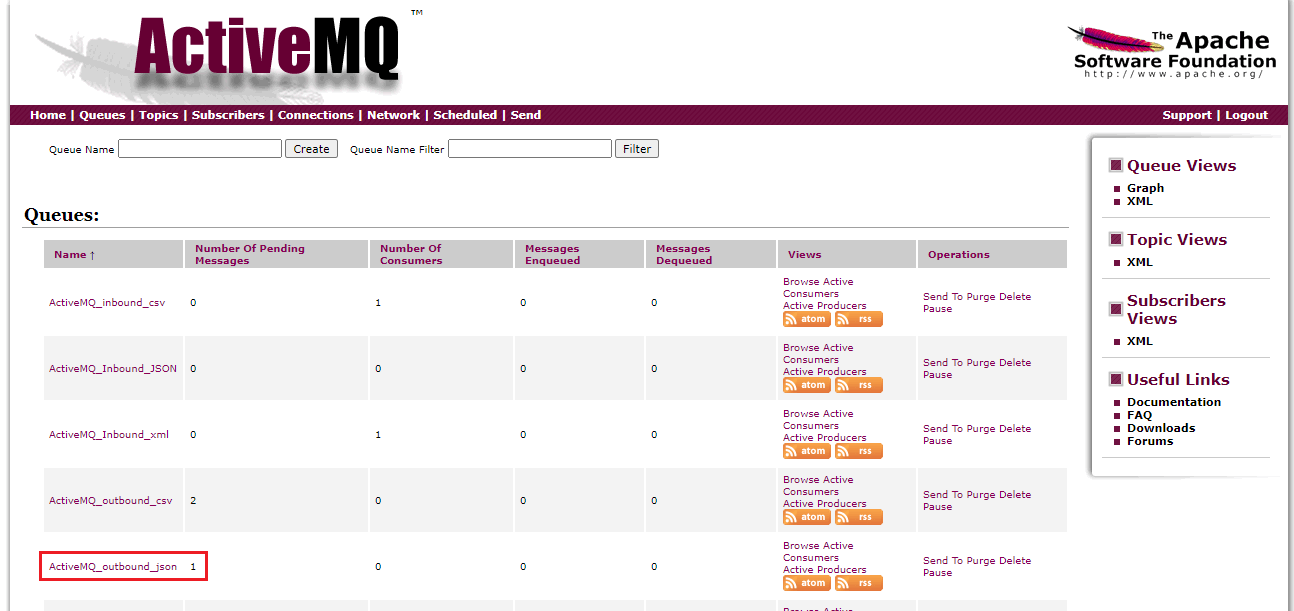

Go to Queue:

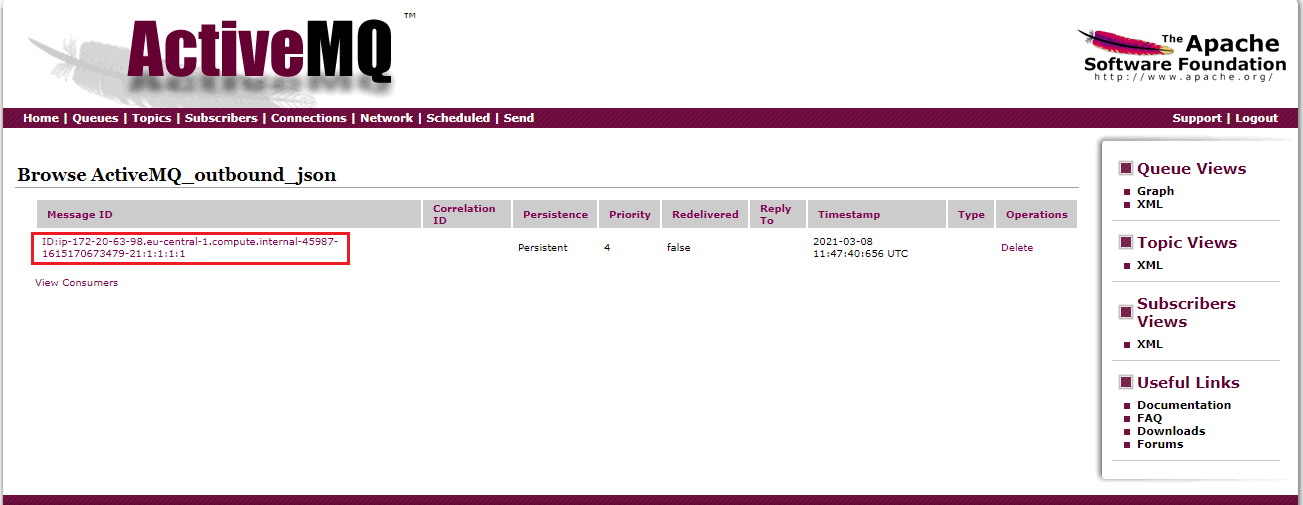

click on the Queue name:

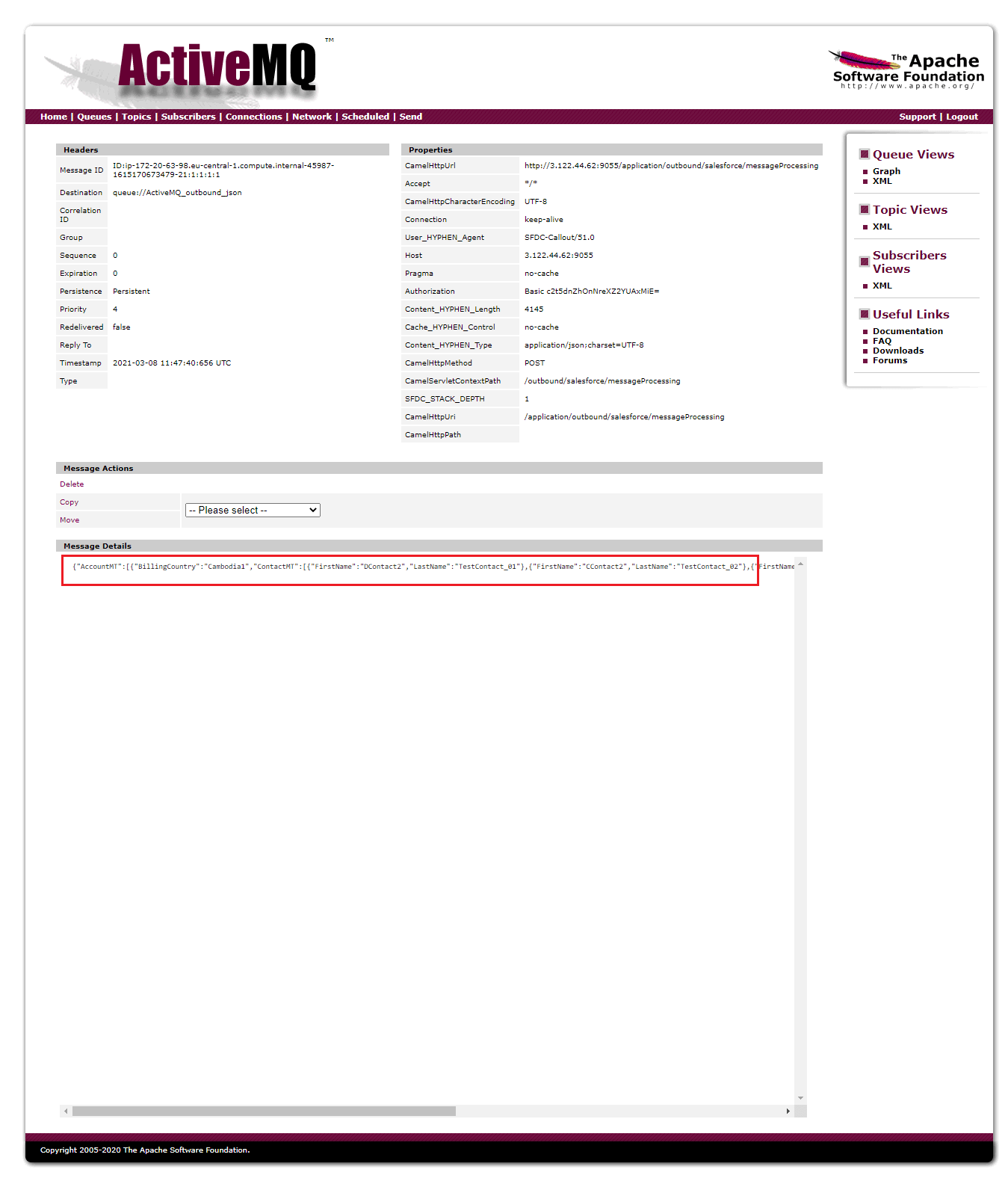

Click on Message ID generated on server to see message detail:
