8. Import OpenAPI 3.x to create message type

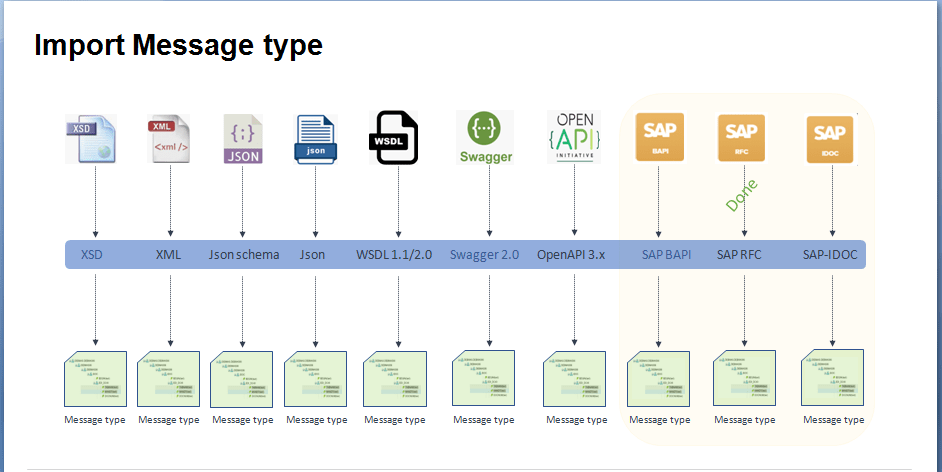

SKYVVA has been added a new feature that can import message type and supported different files format such as XSD, JSON schema, wsdl1.1 & 2.0, swagger 2.0, openAPI3.x.After import the message type; therefore, you can further mapping in the SKYVVA mapping tool.

Message Type: Skyvva provide message type feature to create Istructure repository using different file format. We introducing the new concept of using message type as interface data type. So basically there are two way to put field mapping in interface is:

Use sobject: we use the sobject fields as source field in interface
Message type: we use costume fields created in message type as source field.

Import file feature is used to create message type and ISTructure. Skyvva support different format to create message type: xsd, json schema, wsdl 1.1 & 2.0, swagger 2.0 and openAPI 3.x This functionality is processing based on the message type node. It’s working with REST adapter and have a specific template message type contain URL, header, body.we have a different template for request and response .it has Format Structure as following:

it will generate like structure as below

Under of Components:

Will generate default “ReferenceObject” (Type = Reference Object) as a message and cover field on components.

It will generate IStructure and MessageType based on Primitive Data or object Type: For example, Field has type as primitive (int, string, boolean, double ……..)So it will be the IStructure. A field is an object so it will be MessageType.

Under of Paths

Paths Section will be API name type REST_Service

Request

Request URL

Request Header
Request Body

Response

Response Header

Response Body

[su_box title="Note" box_color="#2a8af0" title_color="#000000"] Operation such as post, get, delete, patch and put you can check under parameter of operation.

Name of creating Messagetype or Istructure
“in” the place where we can put in the Request template
Description for add value into the description of IStructure or Message type
“ref” link to other messagetype[/su_box]

Basic Pre-requisite: First, you need to do some required steps before you can use the function “Importing OpenAPI3.x“

Create Metadata Provider /Repository
File OpenAPI3
Create integration /interface
REST Adapter
MockService

Configuration

Import metadata

Create Metadata Provider, Repository, and click the Import Metadata button.

Generate Message type

In the section, you got a message type and you can further be mapping in the SKYVVA mapping tool, here is an example Callout V3 with Rest adapter using Message Type. Use Case: Step-1: Create Integration and Interface

Create an Outbound interface for Account object, Status: Deployed, Operation type: Query and Choose MetaData Provider name, Repository, and Message Type click Save button.

Step-2: Do Mapping

Step-3: Create Remote site

Go to setup and create the new remote site.

Step-4: Create rest adapter from the SAP control board Create an Adapter and link to the outbound interface.

The Configuration create a new adapter

Step-5: The Configuration MockService We callout V3 with Rest adapter using Message Type to Mock Service.

Step-6: Query Data

Navigate to setup -> developer console

[aux_code language="javascript" theme="tomorrow" title="Apex code" extra_classes=""] skyvvasolutions.CallOutControl c=new skyvvasolutions.CallOutControl(); c.returnXml=true; c.returnListRecord=true; c.isCreateMessage=true; c.actionDoIntegrate=true; String[] ids=new String[]{0016E00001BEi9cQAD}; skyvvasolutions.Iservices.invokeCalloutV3('Test openAPI','OutBound',ids,'SYNC', c); [/aux_code]

Check the result on monitor after execute callout

Check Message details

Summary: This feature we have learned about importing open API3x, and we have understood how to importing message type from open API3.x file format.
