1. How to invoke IDOC XML using SKYVVA SOAP Adapter?

Posting IDOC XML to SAP ERP over Skyvva SOAP Adapter In SAP ERP we have to do the following settings Transaction: SRTIDOC

• Execute with the default values in the transaction with the option “Register Service” selected
• Registration should be successful with the message “Registration Successful”
• If this service has already been registered, you may get the error message – “Access Address already used for Web service”.

In such a case, this step can be ignored as the SOAP Service is already registered and running.

Transaction: SICF Hierarchy Type: SERVICE & Execute Navigate to Default Host –> sap –> bc –> srt –> IDoc. Right Click & Test Service Note the URL that comes in your browser. This is the generic endpoint for idoc xml posting to SAP. http://host:port/sap/bc/srt/idoc?sap-client=>.  The following is the endpoint for our SAP system ID7 with client 800 "http://195.201.104.232:16080/sapid7/sap/bc/srt/idoc?sap-client=800" This endpoint we will use while creating the Skyvva SOAP adapter in skyvva. Creating the SOAP Adapter in Skyvva We need to provide the following details to create the soap adapter Name - Name of the adapter Type - SOAP Description - IDOC XML Adapter Direction - Outbound Status - Active

Authentication - Basic endpoint - http://195.201.104.232:16080/sapid7/sap/bc/srt/idoc?sap-client=800 Operation - POST

PayloadFormat - XML

Username - idadmin Password - HTTP Header - Server:{!servertype}|content-type:{!type}|content-length:{!length}

Now click on save button to create the adapter. Importing IDOC from Import SAP metadata To Import SAP metadata first we need to create SAP Connection in skyvva as shown below Go to Integration details tab and then select SAP Control Board

Provide the details as shown for the SAP system

In the Configuration tab. Provide the details Here we need to provide the sap configuration details as below Type: SAP ERP Deployment: Embedded Logical System: LS10 Host Url: http://xxxx.com Port: 16xxx Username: xxxx Password: SAPID: System Id Client: 820

Once we provide the details we need to ping the SAP Connection. Then we can see the pop-up like its successfully connected to SAP Backend.

Now we have to provide the salesforce details as shown below. Consumer Key and Consumer Secret we can get from the connected App.

Click on Ping Connection of Salesforce to check if its connected successfully.

With this connection. we can import the IDOC/RFC's from SAP. Create Metadata Provider

Create Repository

From the Repository Click on Import SAP Metadata Tab

Here we need to give the details of Connection Destination which we created earlier in the SAP Control Board and RFC destination from SAP and the Select the Application Data type IDOC/RFC.

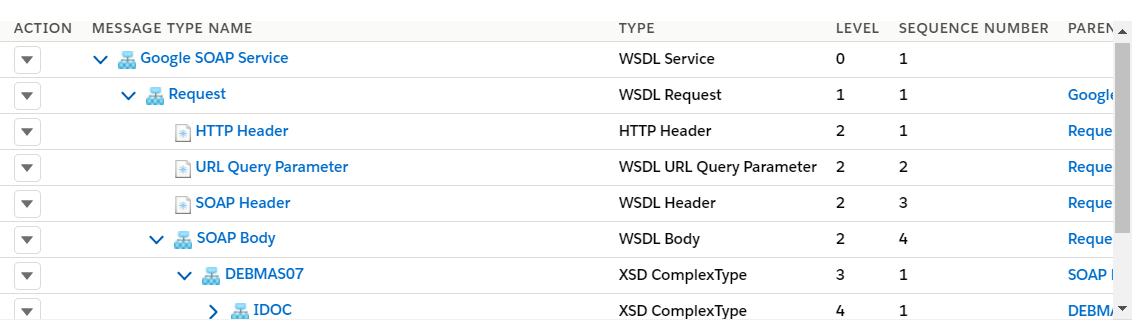

Now click on Retrieve to create the message type from SAP As we are using soap adapter. We have specific template for soap. Merging soap template with SAP IDOC message type.

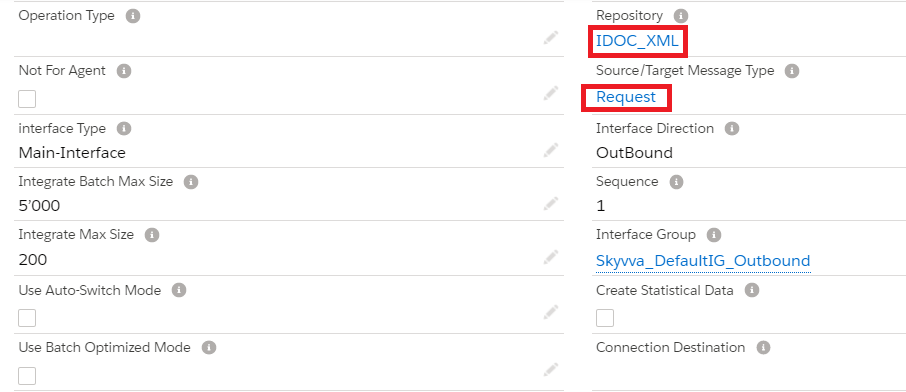

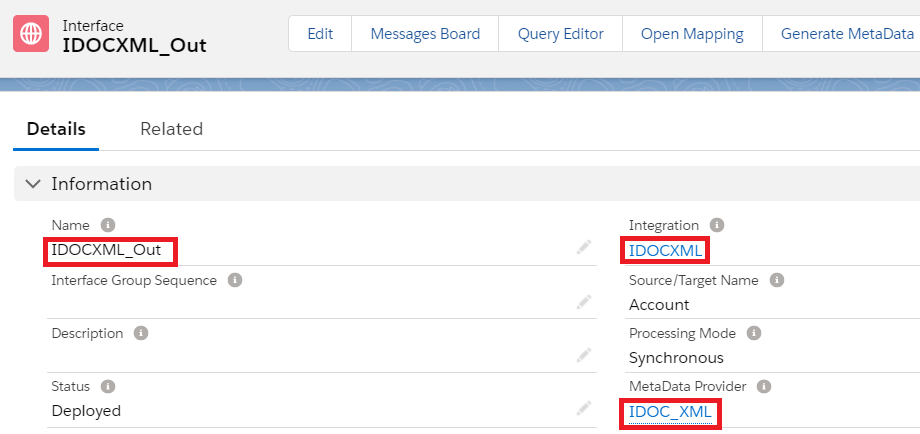

Creating an Outbound interface: Provide the Name, sObject type, Description, Processing mode, Status, Metadata provider, Repository, Message type, outbound adapter and the SQL statement as shown in the screenshots below

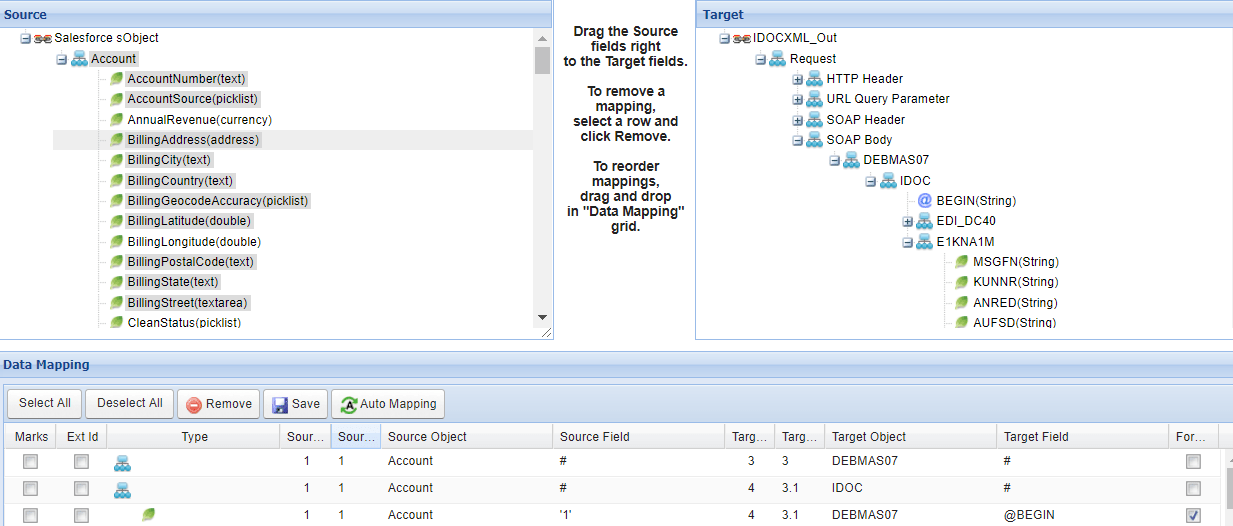

For outbound interface we have to do mapping in Skyvva as shown.

Save the interface once provide all the necessary details. Now do the callout using below apex code: CallOutcontrol c = new CallOutcontrol(); Map header = new Map(); // for HTTP Header. header.put('servertype','Apache'); header.put('type','text/xml; charset=utf-8'); header.put('length','279'); c.headerParam= header; IServices.invokeCalloutV3('IDOCXML','IDOCXML_Out',new String[]{'0011X00000gUY28QAG'},'SYNC',c);

Now we can see the message in the message monitor:

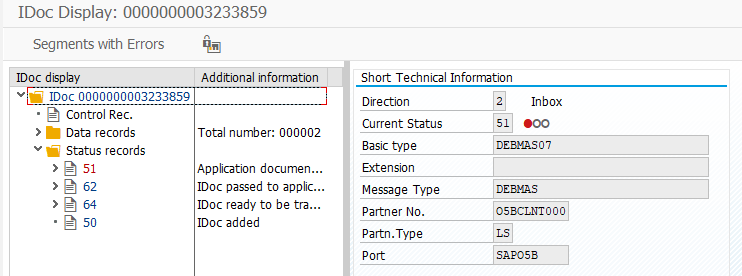

IDOC posted to SAP

And we got the acknowledgement response back from SAP to Skyvva
