169. Search by the Business External Id in outbound message (Interface)

Introduction

For new enhancement, the BUSINESS EXTERNAL ID on message monitoring will show the external id value when the user checks the flag external id in the mapping of the Outbound interface.

Pre-required

–  How to create an integration ?

–  What is hierarchical interface ? –  How to do Hierarchical mapping ?

How it works ?

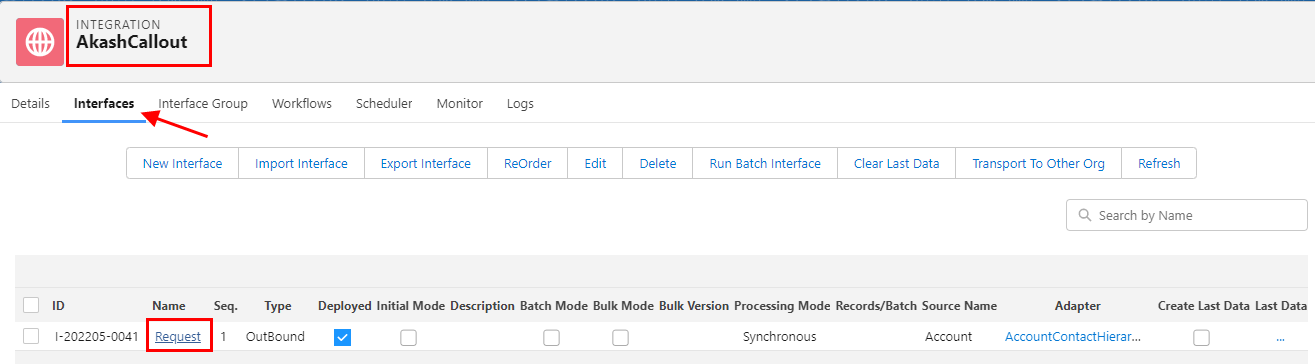

• Create integration and Interface

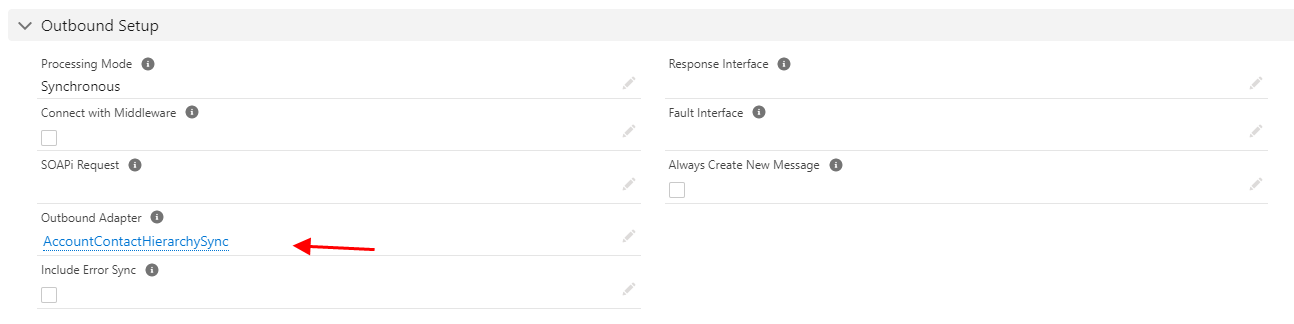

• Go to Interface and scroll down tp Outbound Setup Section
• Select Outbound Adapter

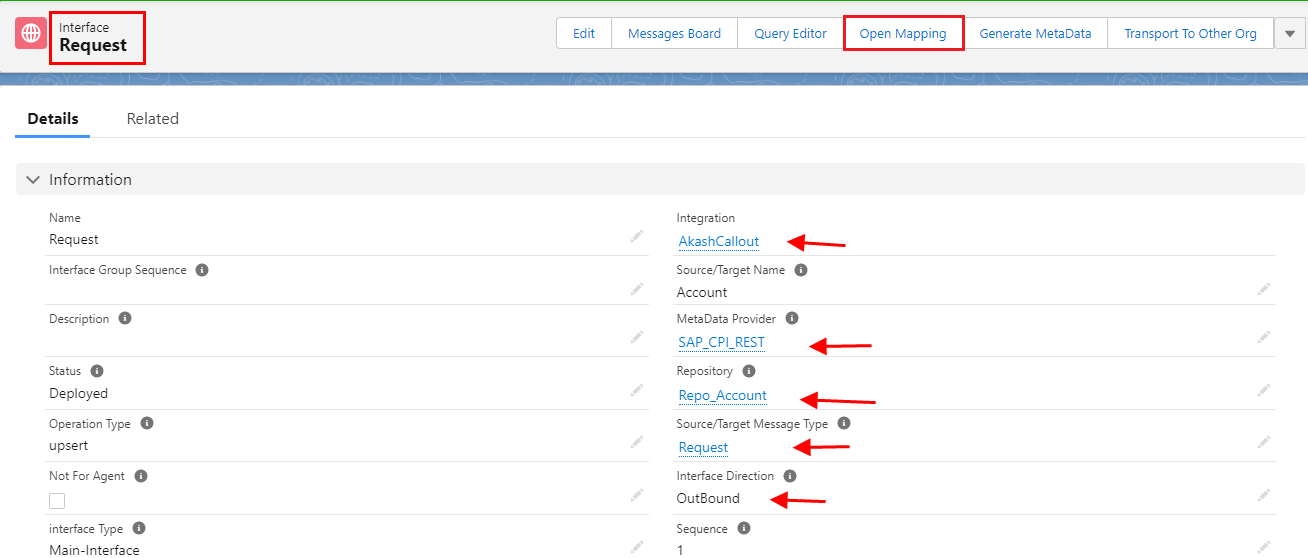

• Select MetaData Provider
• Select Repository
• Source/ Target Message Type

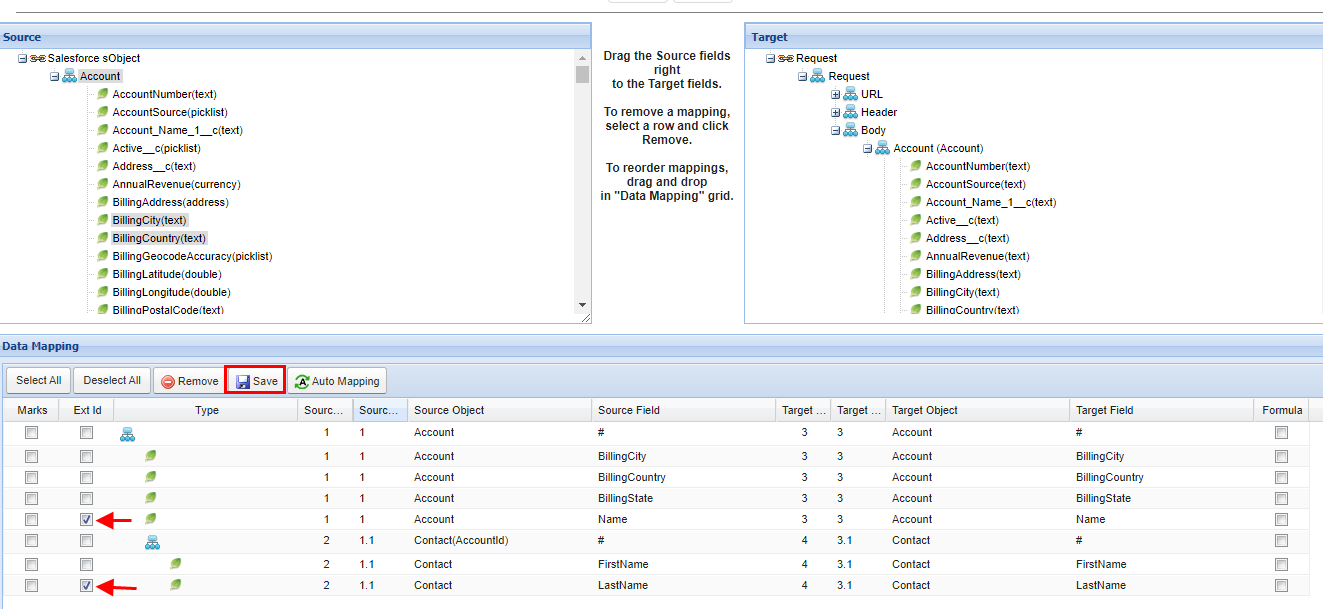

• Click on Open Mapping Tab

• Select Ex Id for both Account & Contact
• Save

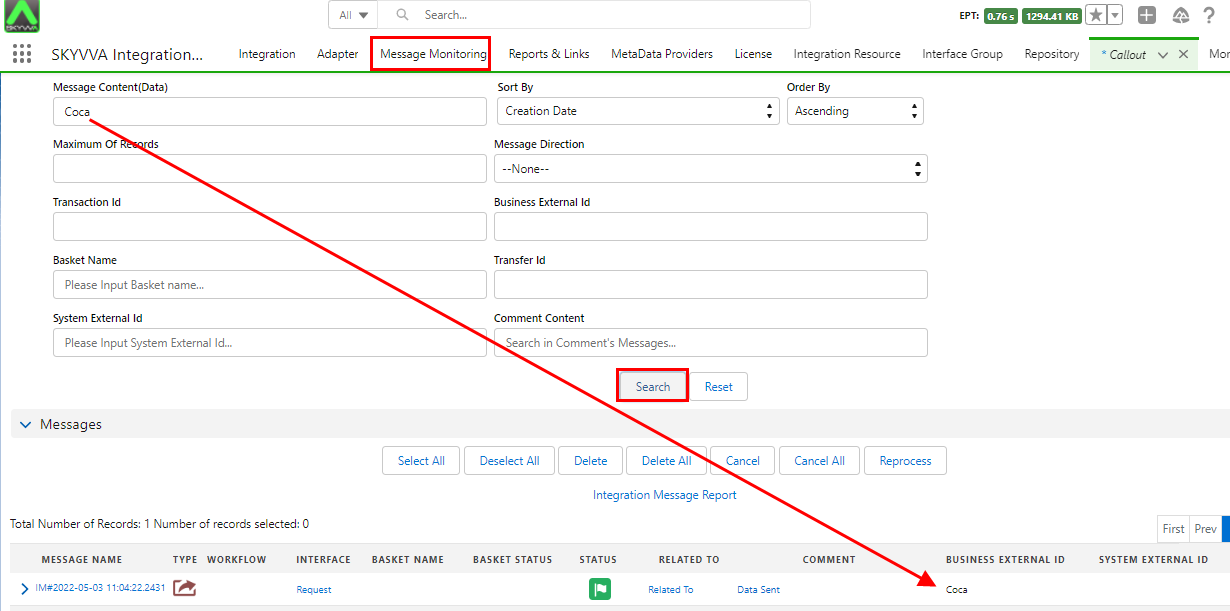

Now go to Message monitoring Tab

• Select Integration & Interface
• Click on search button

• Here user can see both External Ids with Outbound Interface
• Coca Business External Id (Account) Name
• John Business External Id (Contact) LastName

[su_box title="Note" box_color="#2a8af0" title_color="#000000"]

• Message Content(Data) can filter only the value of data in the message, not the field.

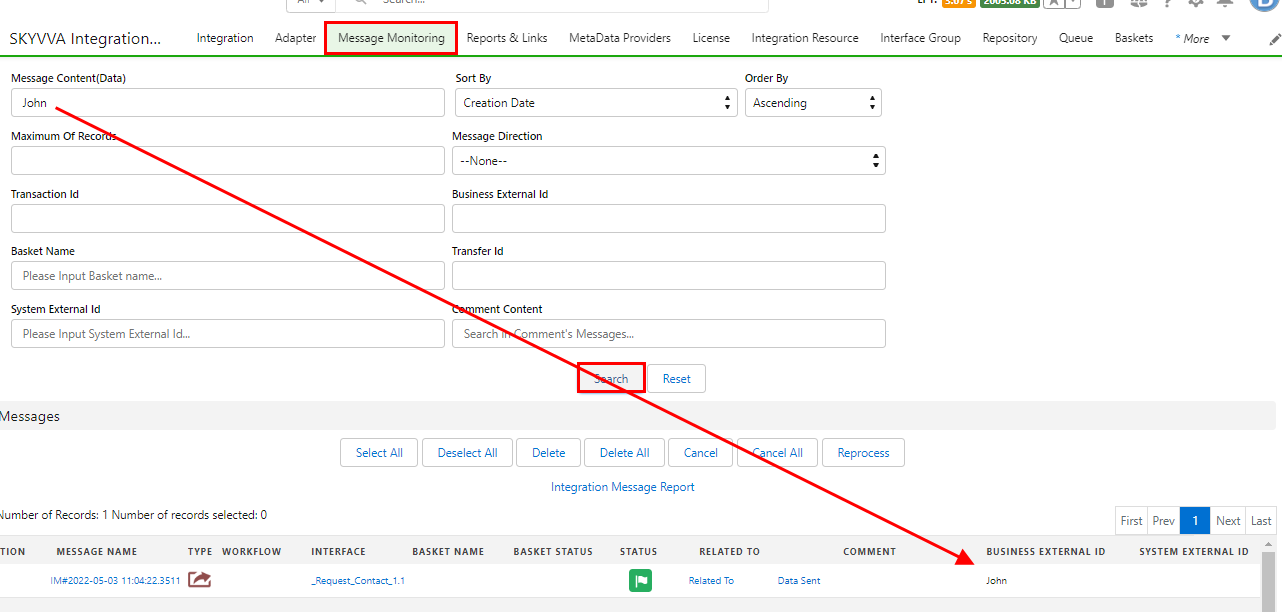

• E.g. in below example we search with External Business Id LastName John (Contact) [/su_box]

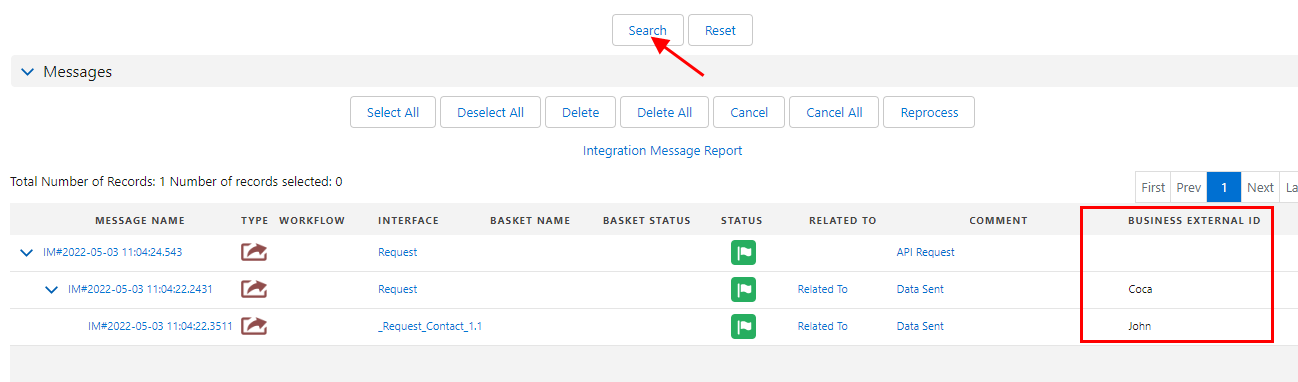

• Apart from that the Business External Id is shown like that without filter when user click on search button (Coca & John) in hierarchical format
• Coca Business External Id (Account) Name
• John Business External Id (Contact) LastName
