7. Monitoring of bulk and the related message

Bulk Monitor is provided in Bulk control board. Bulk Control Board is a dashboard where you can monitor Inbound Processing, Interfaces, and Schedulers. Inbound Processing tabs contain 5 differences sections which are Filter, Bulk Interface Scheduler, Bulk Data Inbox, Bulk Data Processing, and Bulk Monitor. Each section plays different roles in bulk processing.

Bulk Monitor

We can monitor total record count and its detail in bulk monitor section. Also you can monitor the total batch and batches that had processed.. With the bulk monitor you can search for attachment and see if it get posted or failed. You can see different status of messages e.g. green, red and grey.

Here a set of useful screen to customize into the view.

Field Description

Action Action you can carry out e.g. Edit and Delete

Integration The name of the integration

Interface Group The name of the interface group

Extended Status The queue where the attachment will be processed

Timestamp Creation time stamp of the attachment

Interface Name The name of the interface

Priority The priority assigned to the attachment

Status The status of the attachment

Job Type The Job processing type

Attachment Name The name of the attachment

Total job The number of records within an attachment

Failed Messages The number of messages which were failed

Complete Messages The number of messages which were processed successful

Batch Job The Batch job

Created Date Date of creation of the attachment

Last Modified Date Date of the last modification

When all the attachment are processed successfully We can monitor the result on message monitor.

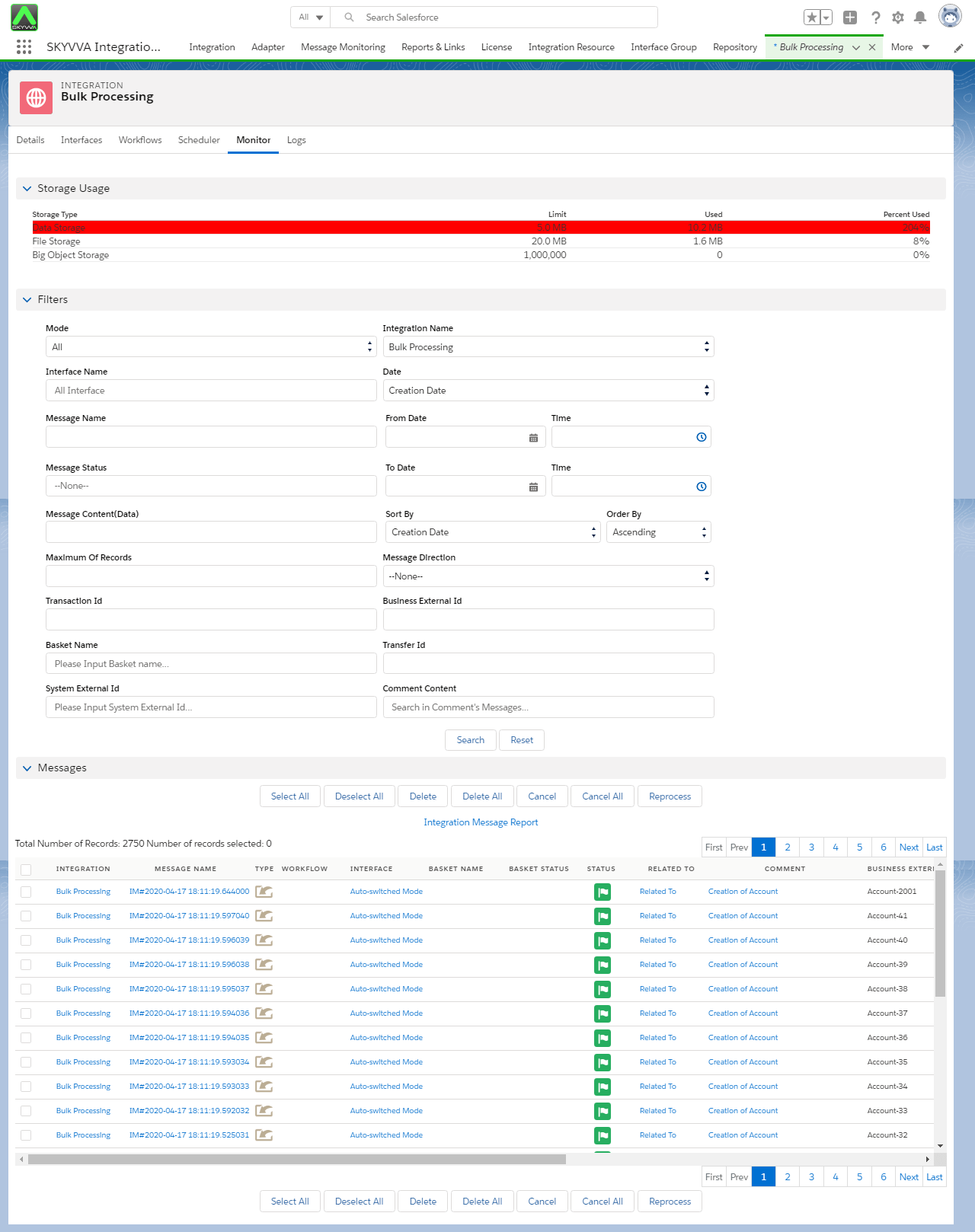

Message Monitor:

With the message monitor you can search for messages and see if it get posted or failed. Message monitor tab is located in Integration Page. You can see different status of messages e.g. green, red and grey.

With the message monitor you can search over different criteria. For example you can search message by date e.g. the creation or modified date. You can sort the view and search message over its content.

Following are the search criteria you can use:

Field Description

Integration Name The name of the integration

Interface Name The name of the interface

Message Name The key of the message

Message status The status of message e.g. Completed or Failed

Message Content The content of the message

Date You can specify Creation or Modified date

From The from date

To The to date

Sort By You can specify Creation date, Modified date or Message Name

You can jump into the detail of a message. Click on the message name to jump into the detail. Here is an example of a message detail.
