2.6 Integration Scheduling

2.6.1 Integration Scheduling

• Create Integration

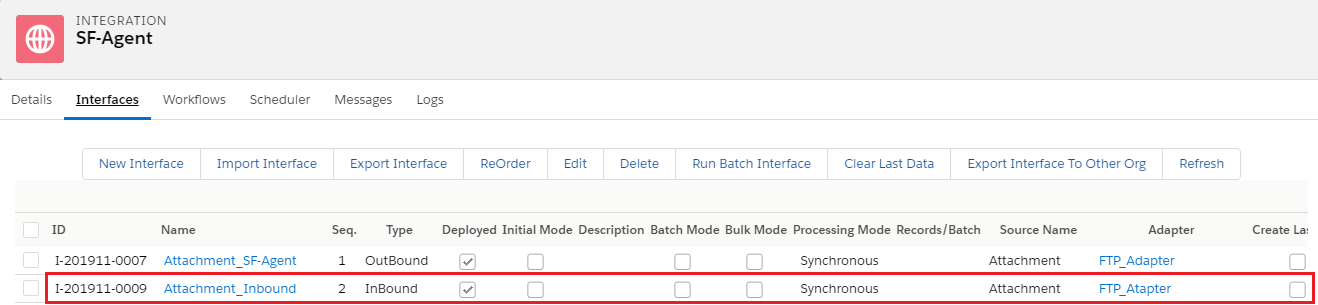

• Click on Interface

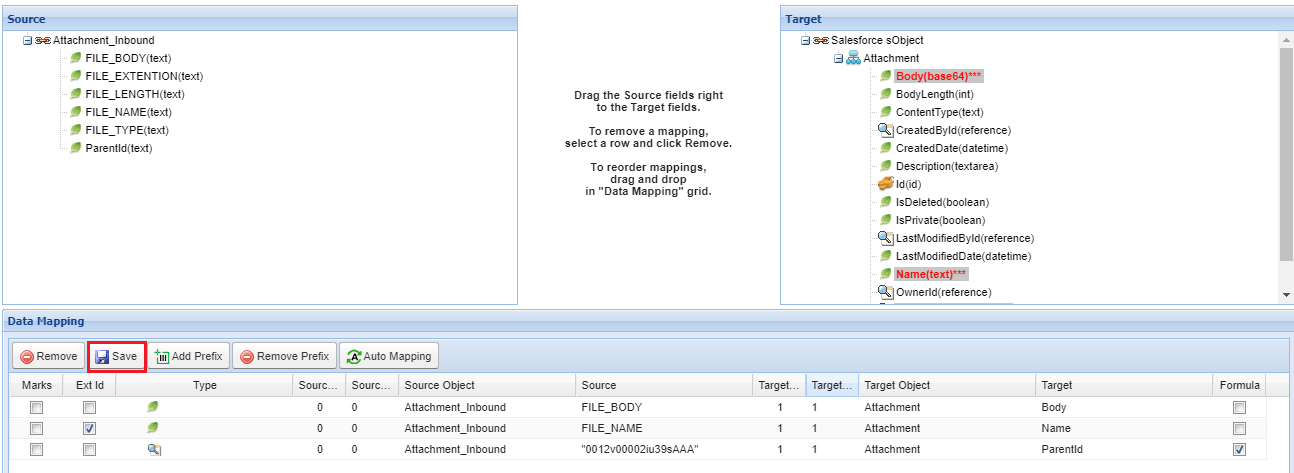

• Click on Open Mapping Button

• Select Ext ID
• Save

Go to Agent On the Integration Control Board, click on “Integration Scheduling”: Choose the integration name, Interface name, and Integration Direction you want to schedule among (“Agent-SF” | “SF-Agent”). Set the schedule through the screen.

After scheduling the agent, click “Save”. And it will ask to restart the agent service. Daily Frequency

• Run at: This option allow the user to specify exactly when he wants to Integration Agent running.
• Run every: This option is used for frequency of running schedule. It can be set to every ”Hours” or every ”Minutes” and user can specify

[su_box title="Remark" box_color="#2a8af0" title_color="#000000"]

• Do not change the last parts of the SQLite records (“com.iservice.integration.IntegrationOnDemandService”; “com.iservice.integration.IntegrationSF2AgentService false”; “com.iservice.integration.IntegrationSF2AgentService true”)
• It is recommended to change the schedules thru the UI.
• The auto data processing SQLite record is always fixed (scheduled for every hour as like on SF Integration thru the tick of the field “Automatic Data processing”
• How Auto data processing crontab works/is enabled?

[/su_box] Configuration of Integration Scheduler for SF – Agent

Go to Salesforce Org

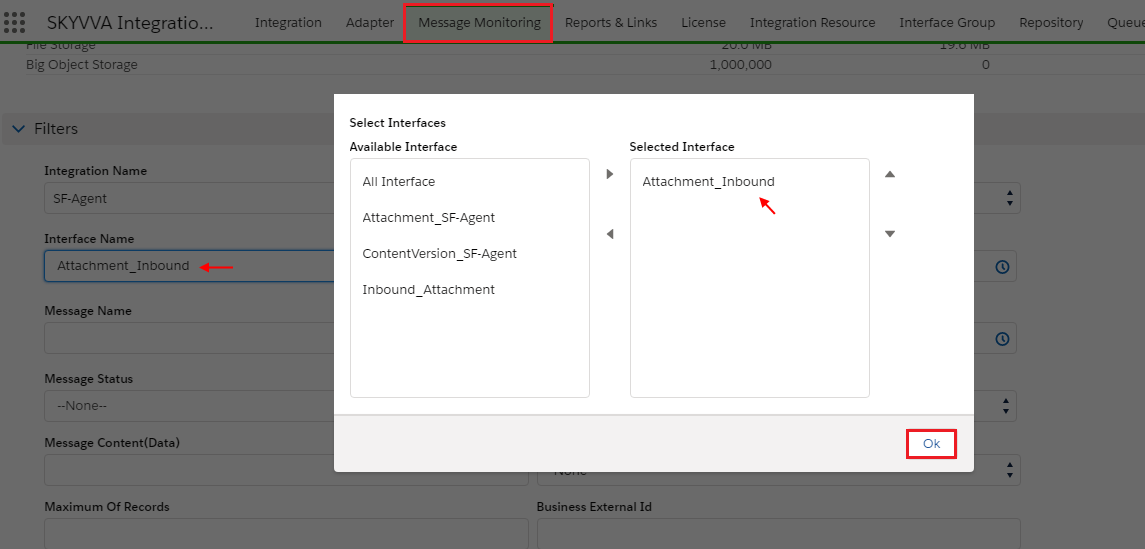

• Click on Message Monitoring Tab
• Select Integration Name
• Select Interface Name
• OK

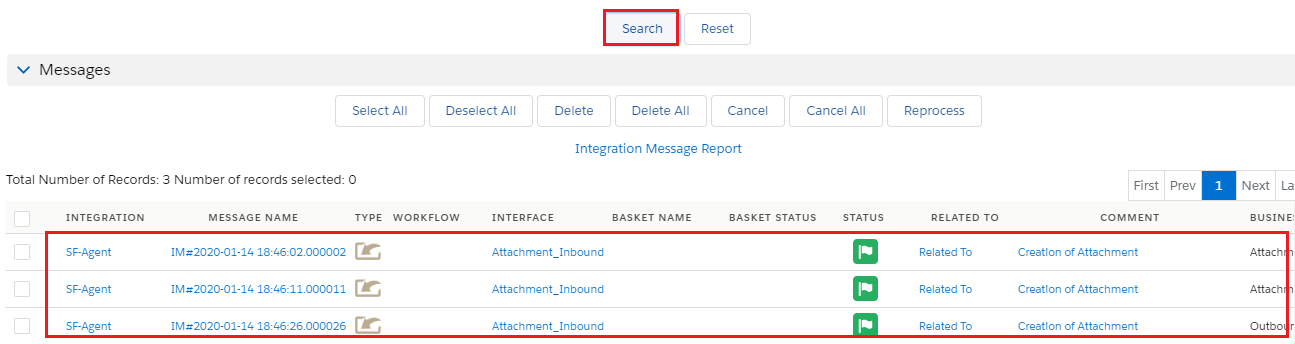

• Scroll down and click on button Search
• See Attachment has been created

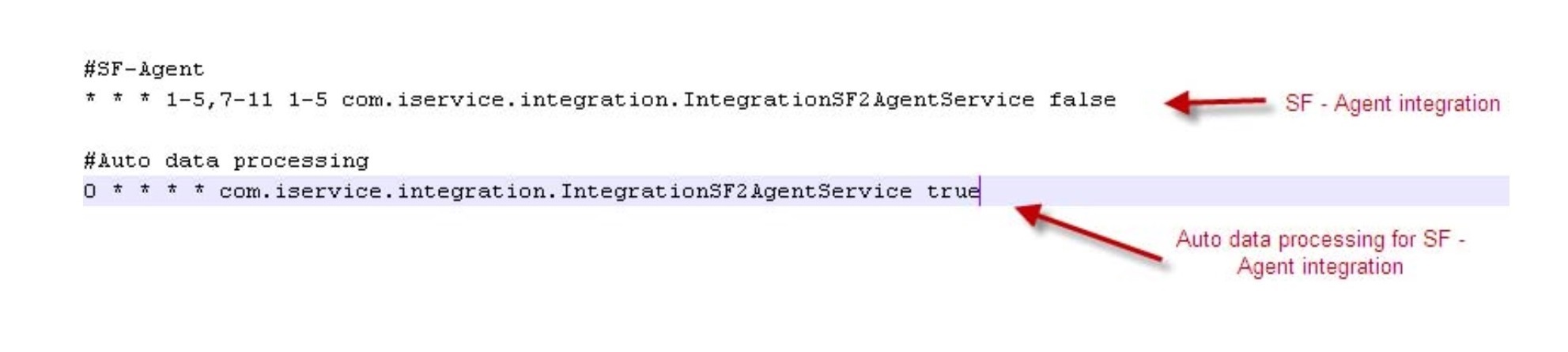

In the crontab file, the user will get the following crontab records:
