2. Export XML file using Amazon s3 Adapter

In this tutorial, you will learn how to do Manual Process to export an XML file via an AWS S3 adapter.

Pre-requisite

• Create Integration and outbound interface with operation query
• Create a message type
• Link a message type for the inbound interface

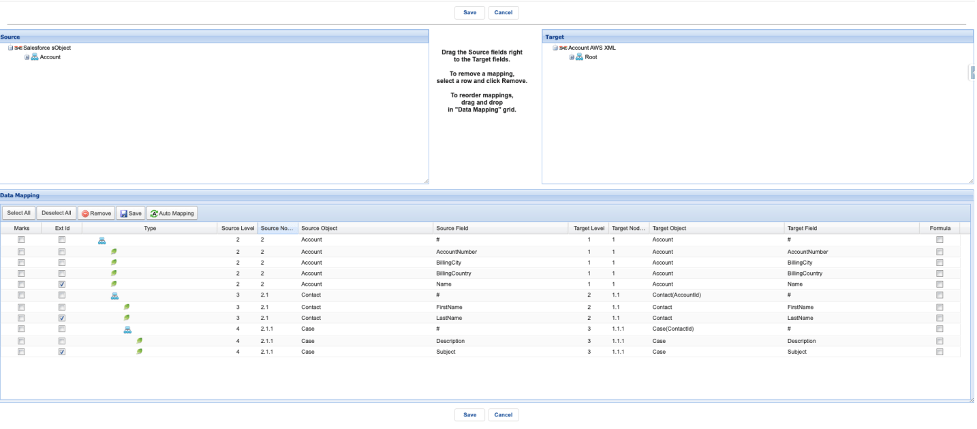

• Mapping

• Click save mapping
• Enter to integration detail page
• Click the link Amazon Control Board on the Custom Link section
• You will arrive at the Amazon Control Board
• Click Adapter tab

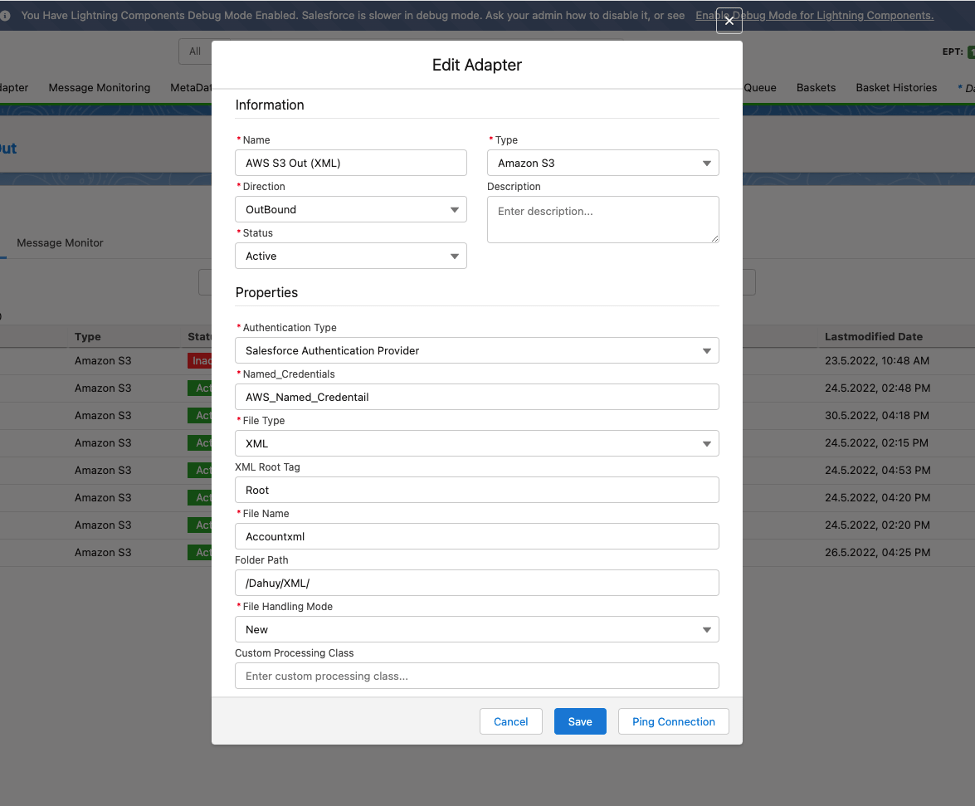

• Click the New button to create the adapter

Fill Name adapter

• Choose Amazon S3 on Type
• Choose Outbound as the direction
• Choose Status
• Choose Salesforce Type as a Salesforce Authentication Provider
• Fill Named_Credentials (Note: Please follow the link to create the Named_Credentials #article/2-named-credentials-to-access-the-aws-s3)
• Select XML on File Type
• Fill XML Root Tag
• Fill Folder Path
• Fill File Name
• Choose File Handling Mode (It means that you want to create a new file on AWS s3 or you want to override the existing file)

• Click Save Button
• Link this adapter to the interface
• Click the interface Tab on Amazon Control Board
• Select an interface

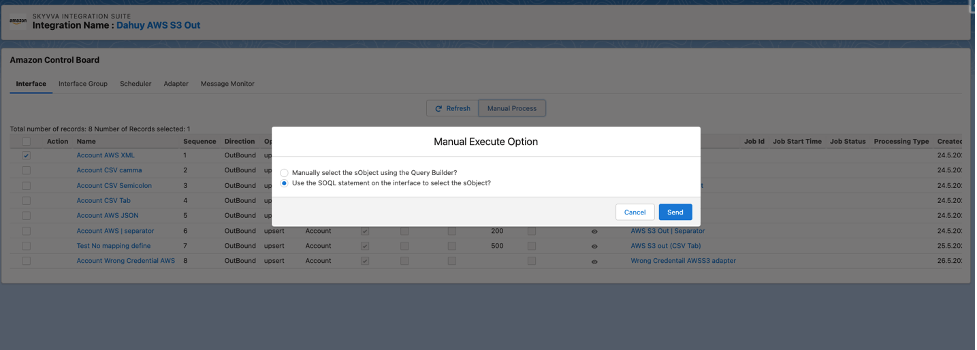

• Click the Manual Process Button
• It will display the Manual Execute Option pop-up screen
• Check Use the SOQL statement on the interface to select the sObject? (if you wish to select sObject based SOQL statement on the interface setting)

• Click Read button

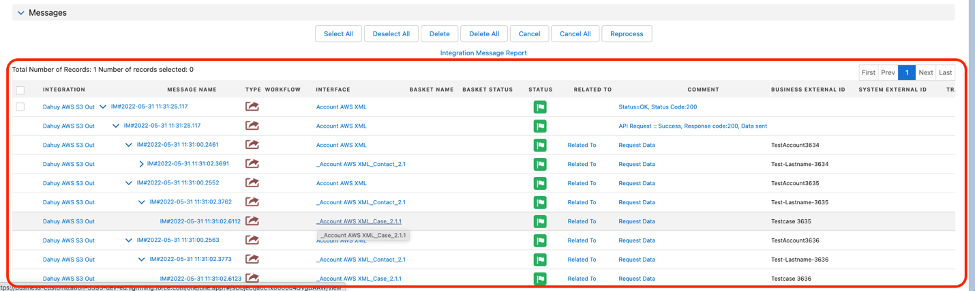

It creates the completed message as screenshot below

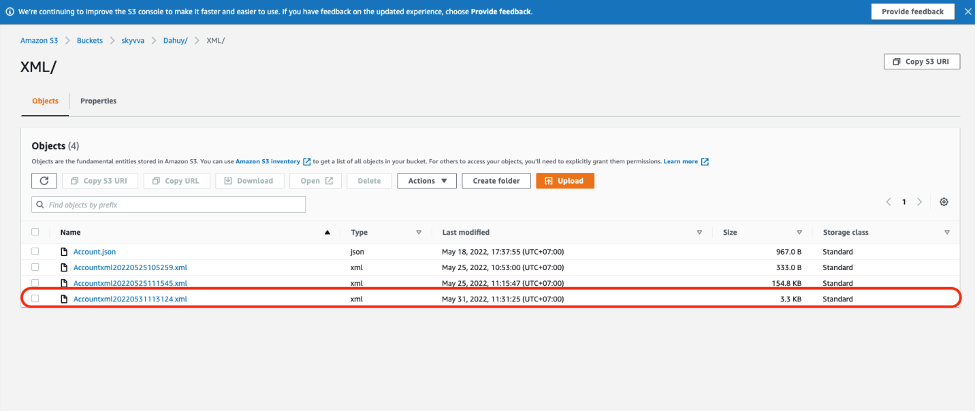

The records are saved into an XML file and it will export to the AWS S3 service on the/Dahuy/XML/ path folder. The file name will be File Name value + Date + Time + .xml

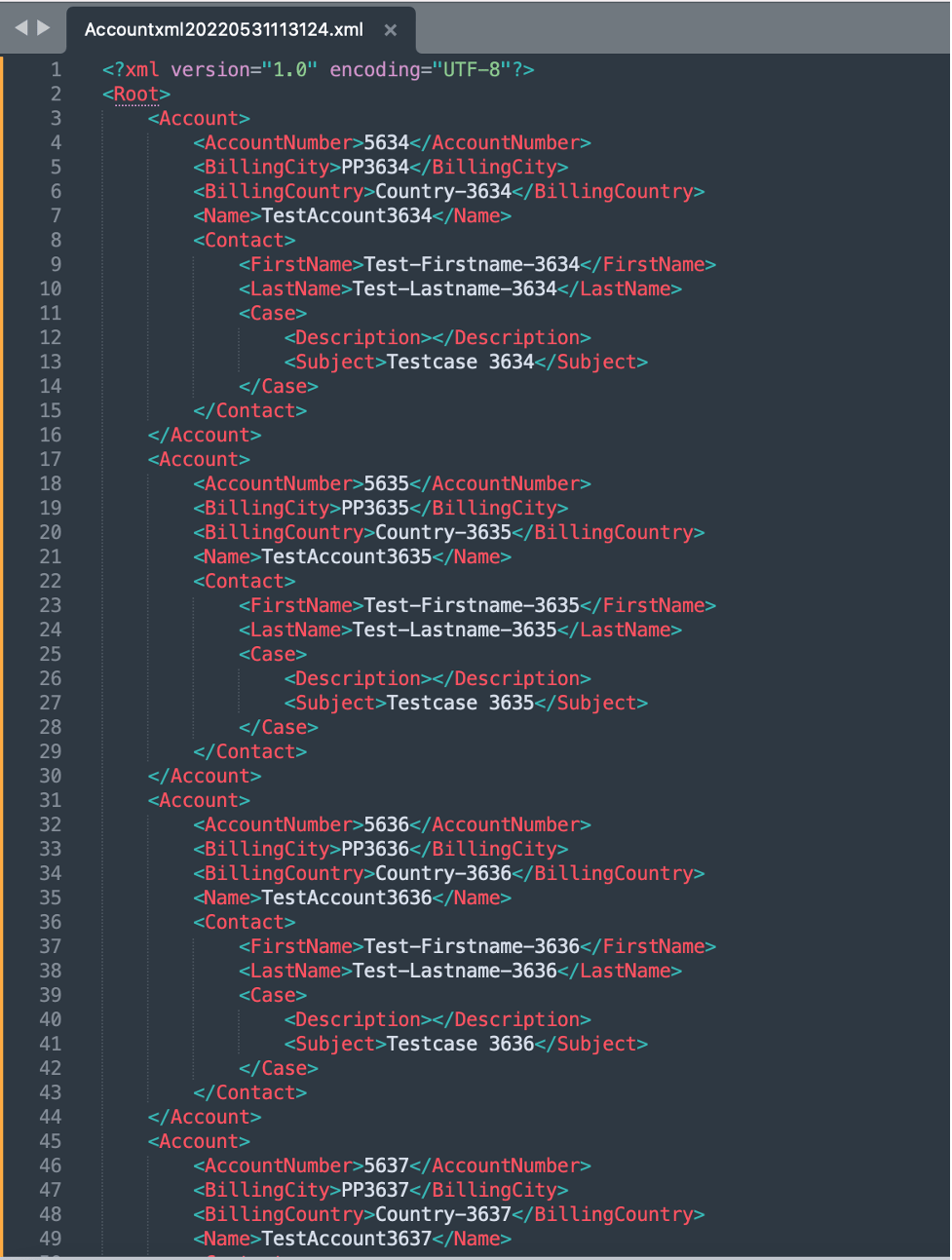

Here are the records that have been exported
