3. Interface Group Queue Processing Behavior

1. Overview

The Interface Group Queue framework provides centralised runtime orchestration for processing multiple Interfaces within an Interface Group. The framework controls how Interfaces are executed, monitored, recovered, and managed during runtime processing.

An Interface Group represents a collection of Interfaces that are executed together as part of a business integration process. During execution, the system creates runtime queues that coordinate Interface execution and monitor processing status across all Interfaces and Messages.

The Interface Group Queue framework is designed to support enterprise-level integration processing with:

• Runtime queue orchestration

• Sequential and parallel processing

• Message-level processing control

• Failure handling

• Queue recovery management

• Restart processing strategies

• Runtime monitoring and governance

2. Runtime Processing Architecture

When an Interface Group is executed, the system creates a runtime processing hierarchy. Each layer in the hierarchy has a different responsibility during execution.

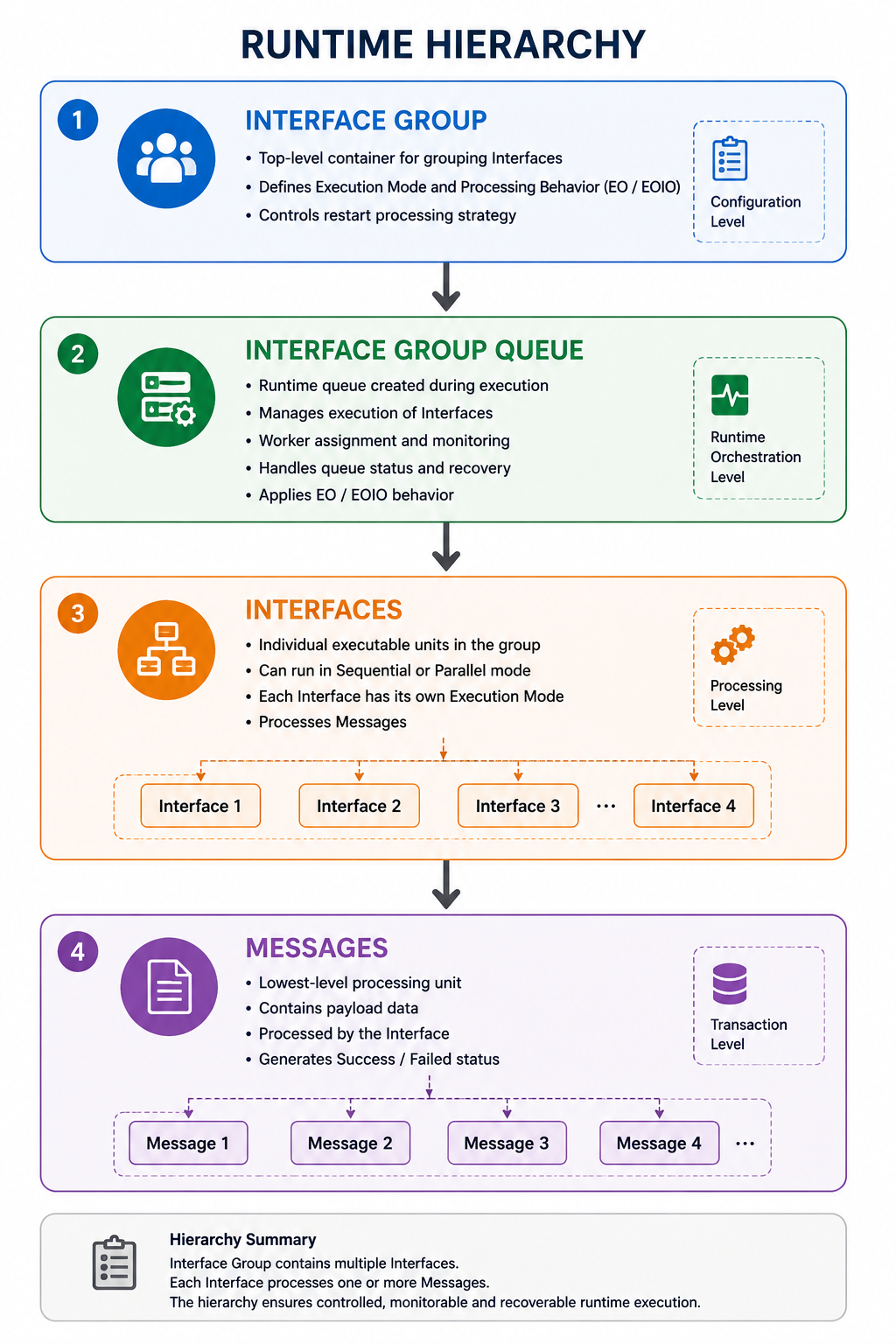

2.1 Runtime Hierarchy

2.2 Runtime Layer Description

Interface Group

The Interface Group is the top-level configuration object that contains multiple Interfaces.

Responsibilities:

• Defines Interface execution order

• Controls processing behavior

• Controls restart processing strategy

• Defines runtime orchestration rules

Interface Group Queue

The Interface Group Queue is the runtime execution container created during processing.

Responsibilities:

• Controls Interface execution

• Monitors processing status

• Handles runtime orchestration

• Controls queue lifecycle

• Applies EO or EOIO processing behavior

• Coordinates queue recovery and restart processing

Interface

An Interface is an executable processing unit inside the Interface Group.

Responsibilities:

• Processes Messages

• Executes mappings and transformations

• Handles adapter communication

• Applies Interface Execution Mode

• Controls message-level processing behavior

Message

A Message is the lowest processing unit.

Responsibilities:

• Contains runtime payload data

• Executes individual processing transactions

• Generates processing status

• Produces success or failure results

3. Queue Creation Process

The Interface Group Queue is automatically created when Interface Group execution starts.

Execution can be triggered by:

• Manual execution

• Scheduler execution

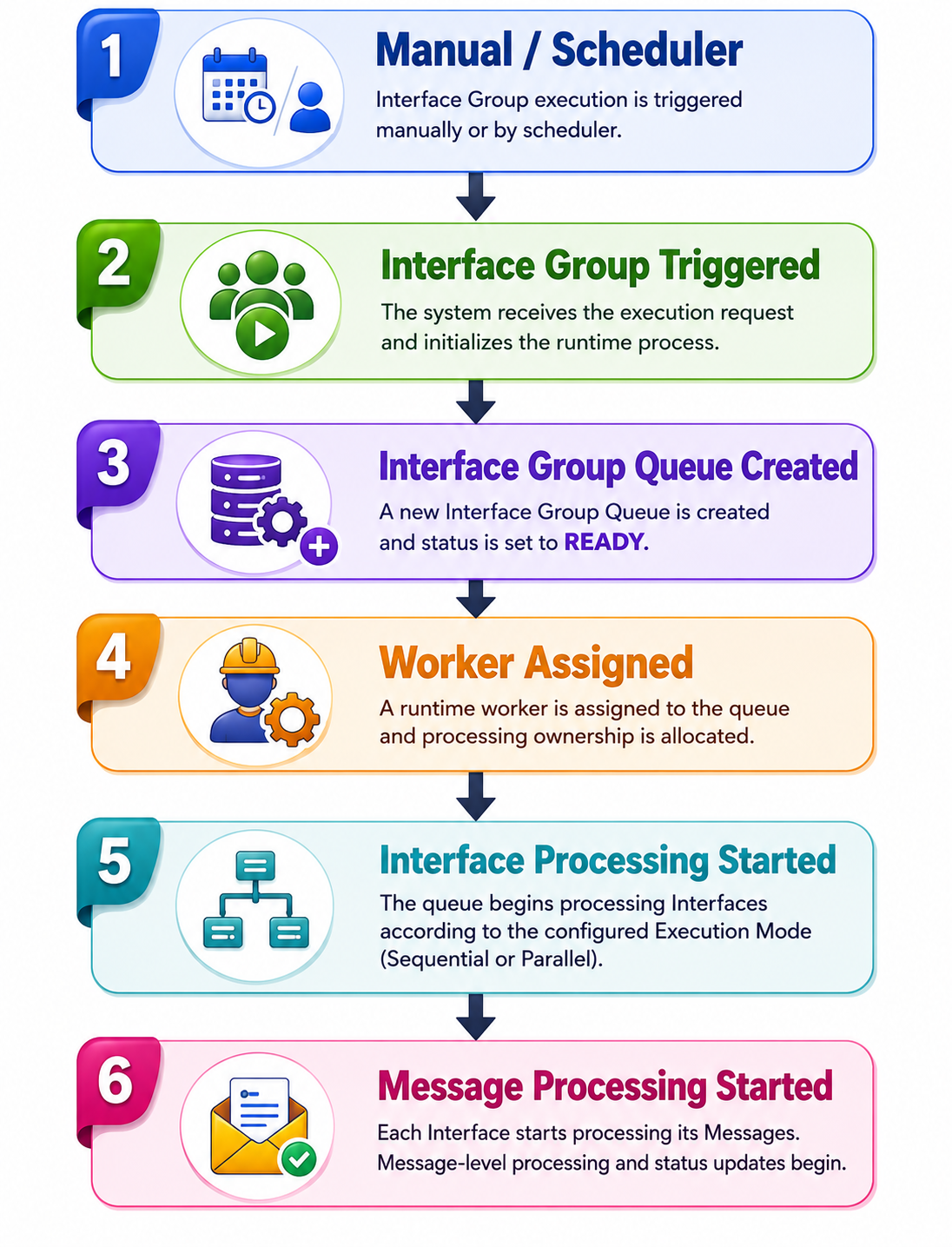

3.1 Queue Creation Flow

3.2 Runtime Initialization

During queue creation:

1. The system generates a new Interface Group Queue record

2. Runtime worker resources are allocated

3. Queue status changes to READY

4. Worker assignment begins

5. Interface processing starts according to configured Execution Mode

• Processing completes successfully

• Processing fails

• Queue enters HOLD status

• Queue is manually stopped

4. Queue Runtime Lifecycle

The queue lifecycle defines how queue statuses change during runtime execution.

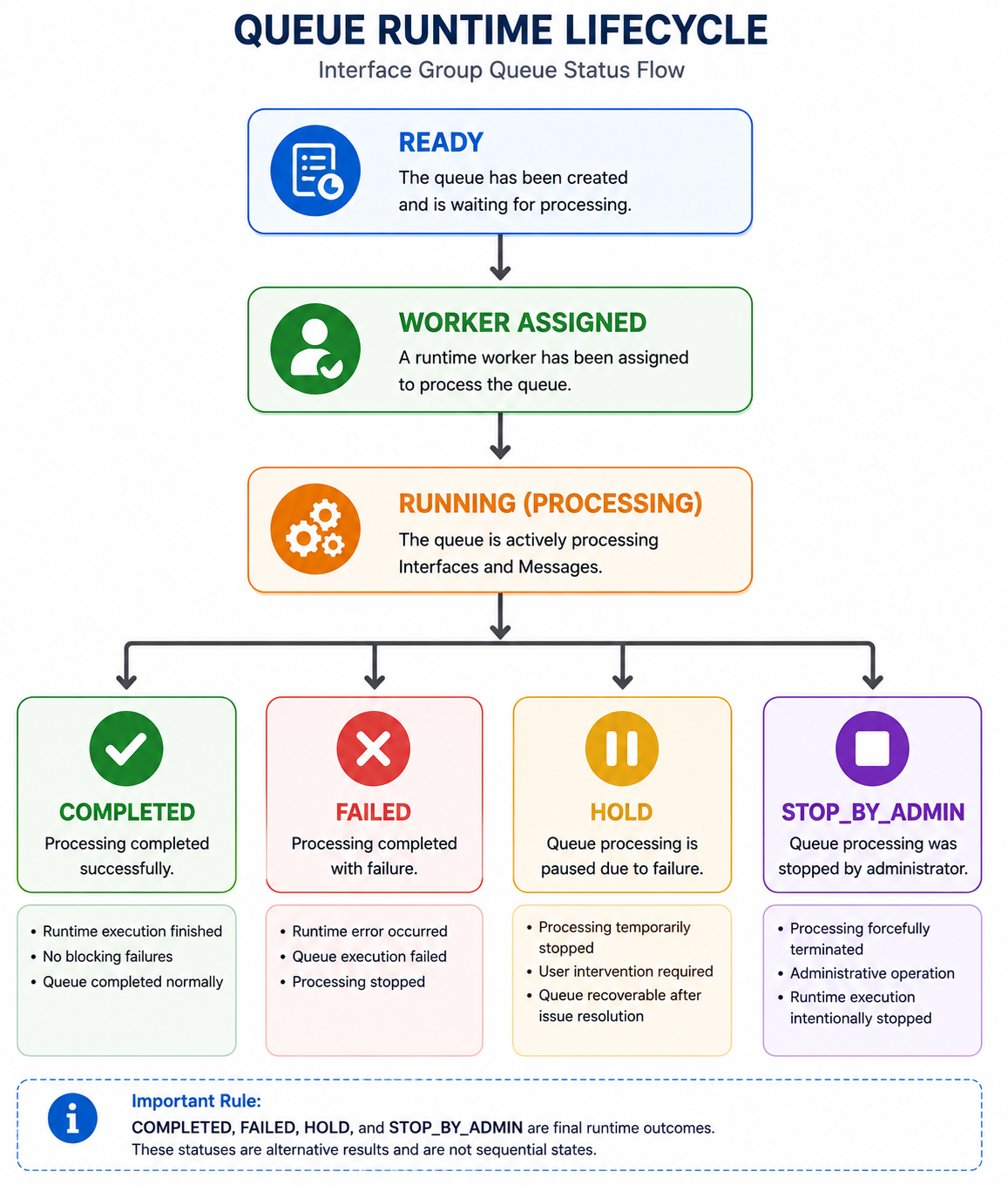

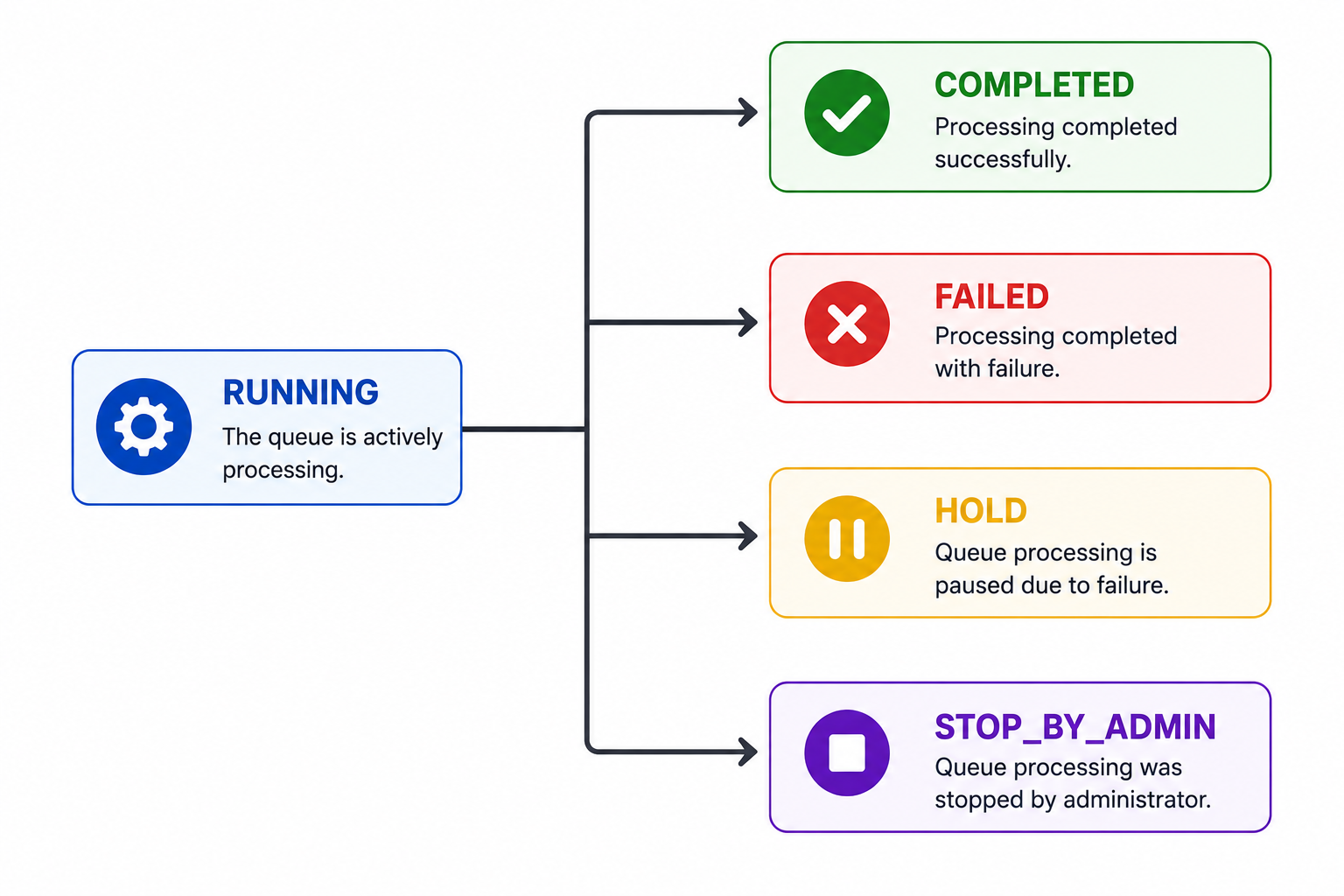

4.1 Queue Status Flow

4.2 Important Runtime Rule

The following statuses are final runtime outcomes:

• COMPLETED

• FAILED

• HOLD

• STOP_BY_ADMIN

Example:

RUNNING

A queue cannot move from COMPLETED to FAILED because both are final runtime states.

5. Queue Status Definitions

5.1 READY

The queue has been created but processing has not yet started.

Runtime Characteristics

• Queue initialized

• Waiting for worker assignment

• Processing not yet active

5.2 WORKER ASSIGNED

A runtime worker has been assigned to the queue.

Runtime Characteristics

• Worker allocated

• Runtime resources prepared

• Queue initialization completed

• Processing about to start

5.3 RUNNING (PROCESSING)

The queue is actively processing Interfaces and Messages.

Runtime Characteristics

• Interface execution active

• Message processing active

• Queue orchestration active

• Runtime monitoring enabled

• Interfaces may succeed or fail

• Messages may continue or stop depending on configuration

• Queue orchestration logic is continuously evaluated

5.4 COMPLETED

The queue finished processing successfully.

Runtime Characteristics

• Runtime execution completed

• No blocking failures occurred

• Queue processing finalized successfully

5.5 FAILED

The queue finished with runtime failure.

Runtime Characteristics

• Runtime processing terminated

• Failure condition encountered

• Queue processing unsuccessful

5.6 HOLD

The queue is paused due to processing failure and requires user intervention.

Runtime Characteristics

• Processing stopped

• Queue recoverable

• Manual recovery required

• Runtime execution paused

Common Causes

• EOIO processing failure

• Interface failure

• Validation exceptions

• External system errors

• Authentication issues

• Connectivity failures

5.7 STOP_BY_ADMIN

Queue processing was manually stopped by an administrator.

Runtime Characteristics

• Administrative stop operation

• Processing forcefully terminated

• Runtime execution intentionally stopped

6. Execution Mode

Execution Mode controls how Interfaces are processed inside the Interface Group Queue.

6.1 Available Execution Modes

7. Sequential Processing

Sequential Processing executes Interfaces one after another according to the configured sequence order.

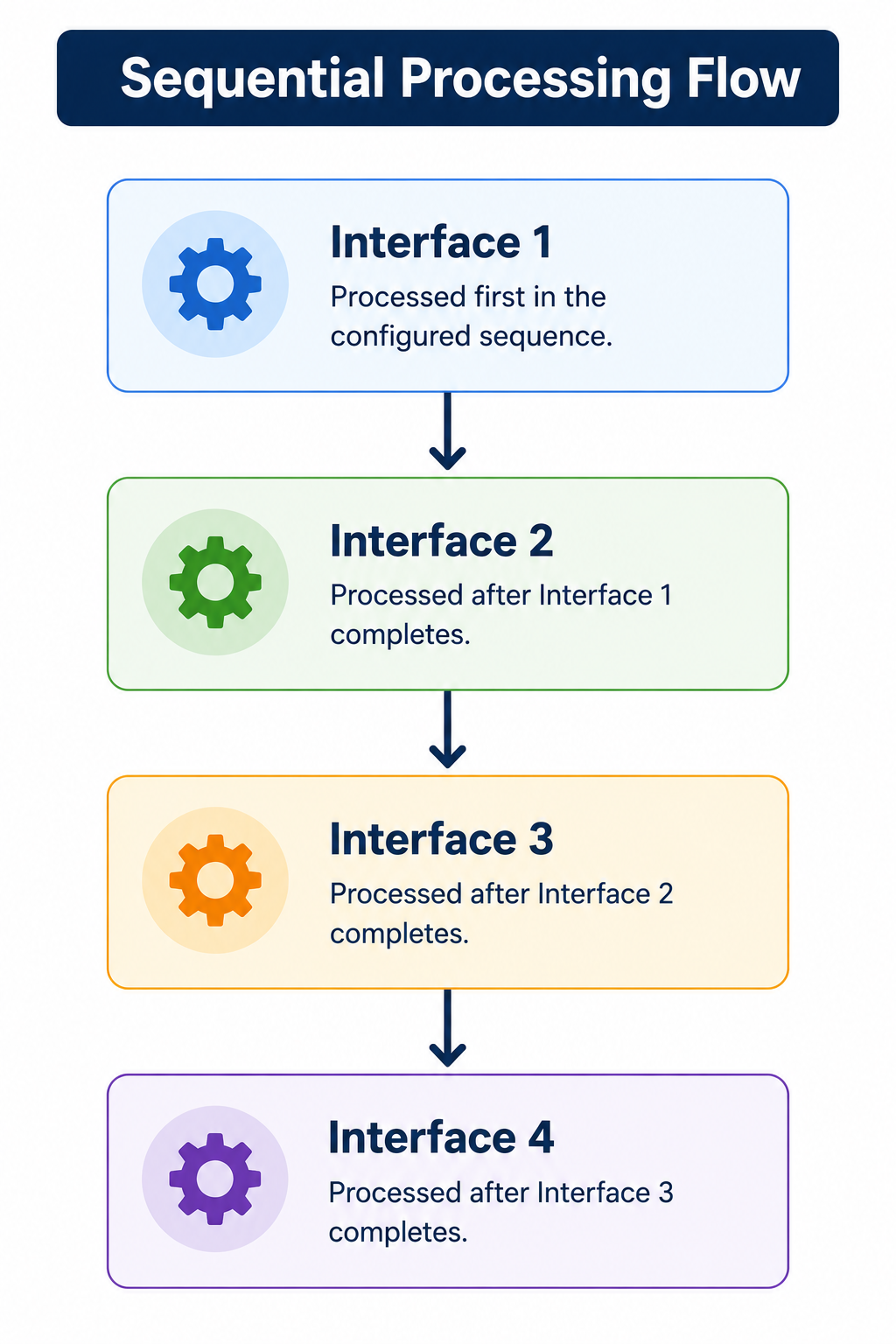

7.1 Sequential Processing Flow

7.2 Runtime Behavior

During Sequential Processing:

• Only one Interface executes at a time

• Next Interface starts only after previous Interface finishes

• Interface order is strictly maintained

• Runtime dependency control is preserved

7.3 Typical Use Cases

Sequential Processing is recommended when:

• Interfaces depend on previous processing results

• Transaction order must be preserved

• Business process sequencing is required

• Controlled execution flow is necessary

8. Parallel Processing

Parallel Processing executes multiple Interfaces simultaneously.

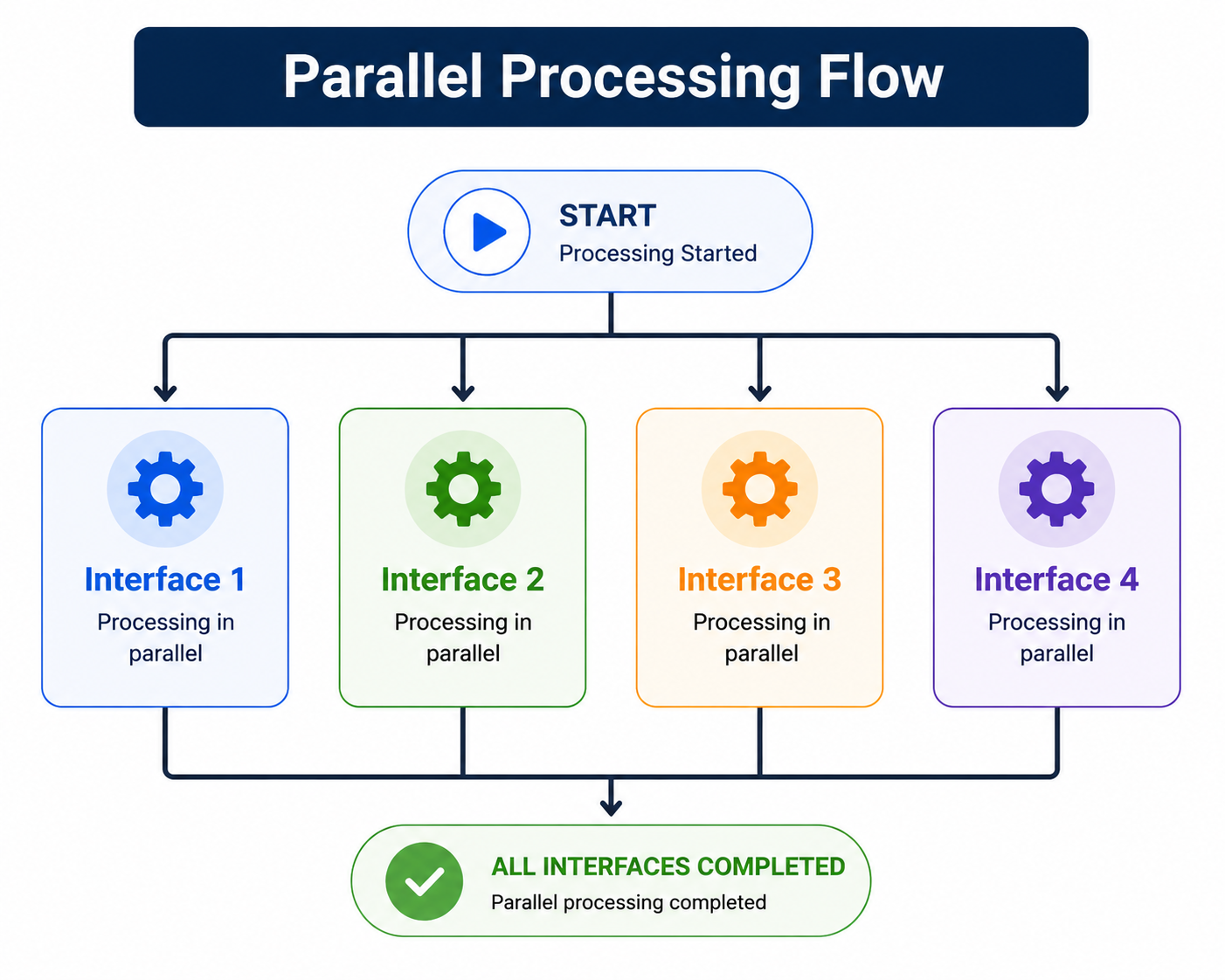

8.1 Parallel Processing Flow

8.2 Runtime Behavior

During Parallel Processing:

• Multiple Interfaces execute concurrently

• Runtime throughput increases

• Independent processing is optimized

• Overall processing time may be reduced

8.3 Typical Use Cases

Parallel Processing is recommended when:

• Interfaces are independent

• No execution dependency exists

• High-volume processing is required

• Runtime performance optimization is necessary

9. Processing Behavior

Processing Behavior controls how the Interface Group Queue reacts when Interface failures occur.

9.1 Available Processing Behaviors

10. Interface Execution Mode

Each Interface independently controls its own message-level processing behavior.

10.1 Available Interface Execution Modes

11. Direct Interface Execution

When an Interface is executed directly outside an Interface Group:

• One Interface Queue is created

• Interface Execution Mode fully controls message processing behavior

12. Continue when an error occurs

Under this mode, failed Messages do not stop remaining Message processing.

12.1 Runtime Behavior

If a Message fails:

• Remaining Messages continue processing

• Interface processing continues

• Queue processing completes

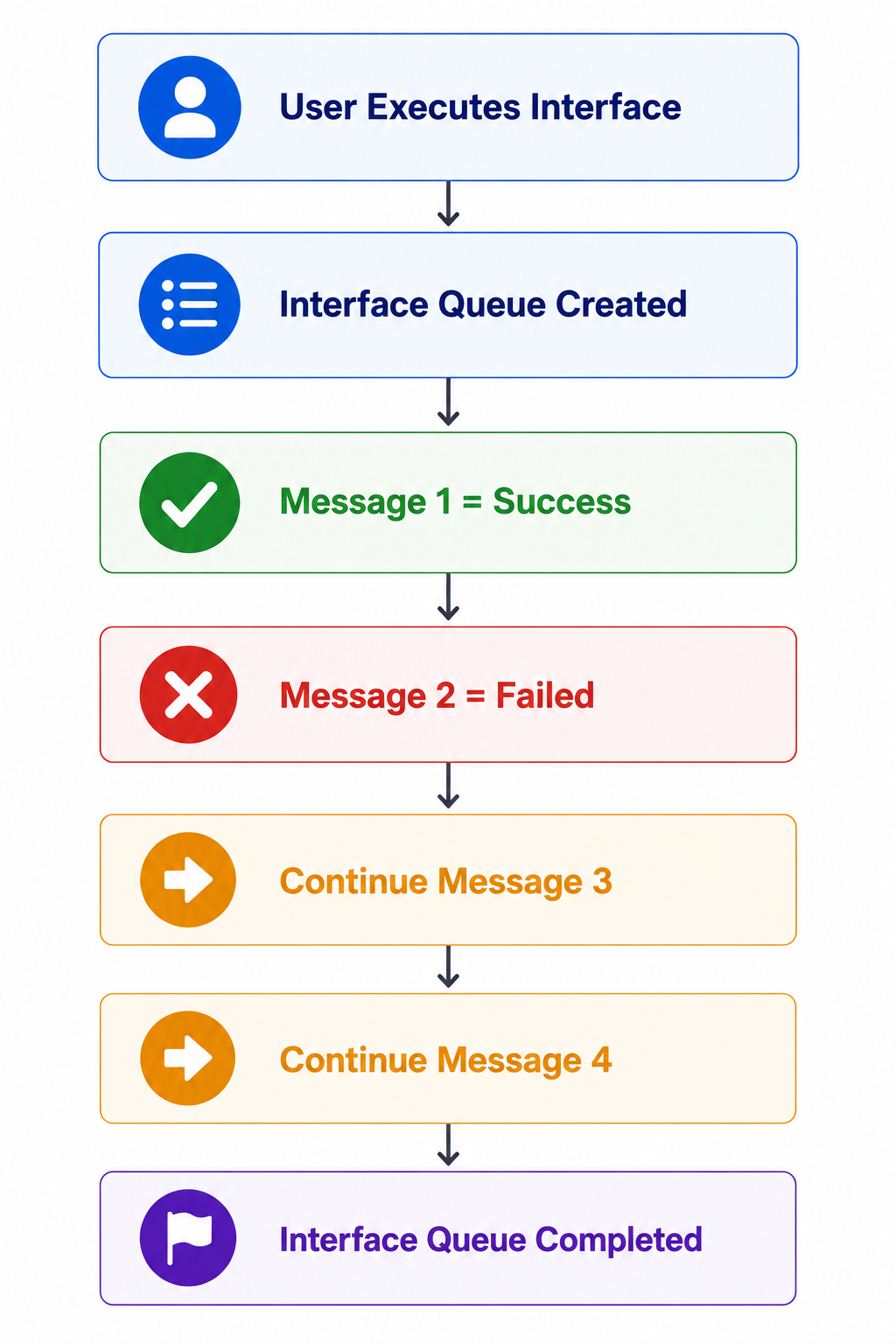

12.2 Processing Flow

12.3 Processing Result

• Failed Messages are logged

• Remaining Messages continue processing

• Interface Queue completes runtime execution

13. Stop when an error occurs

Under this mode, failed Messages immediately stop remaining Message processing.

13.1 Runtime Behavior

If a Message fails:

• Remaining Messages stop immediately

• Interface processing stops

• Queue enters HOLD status

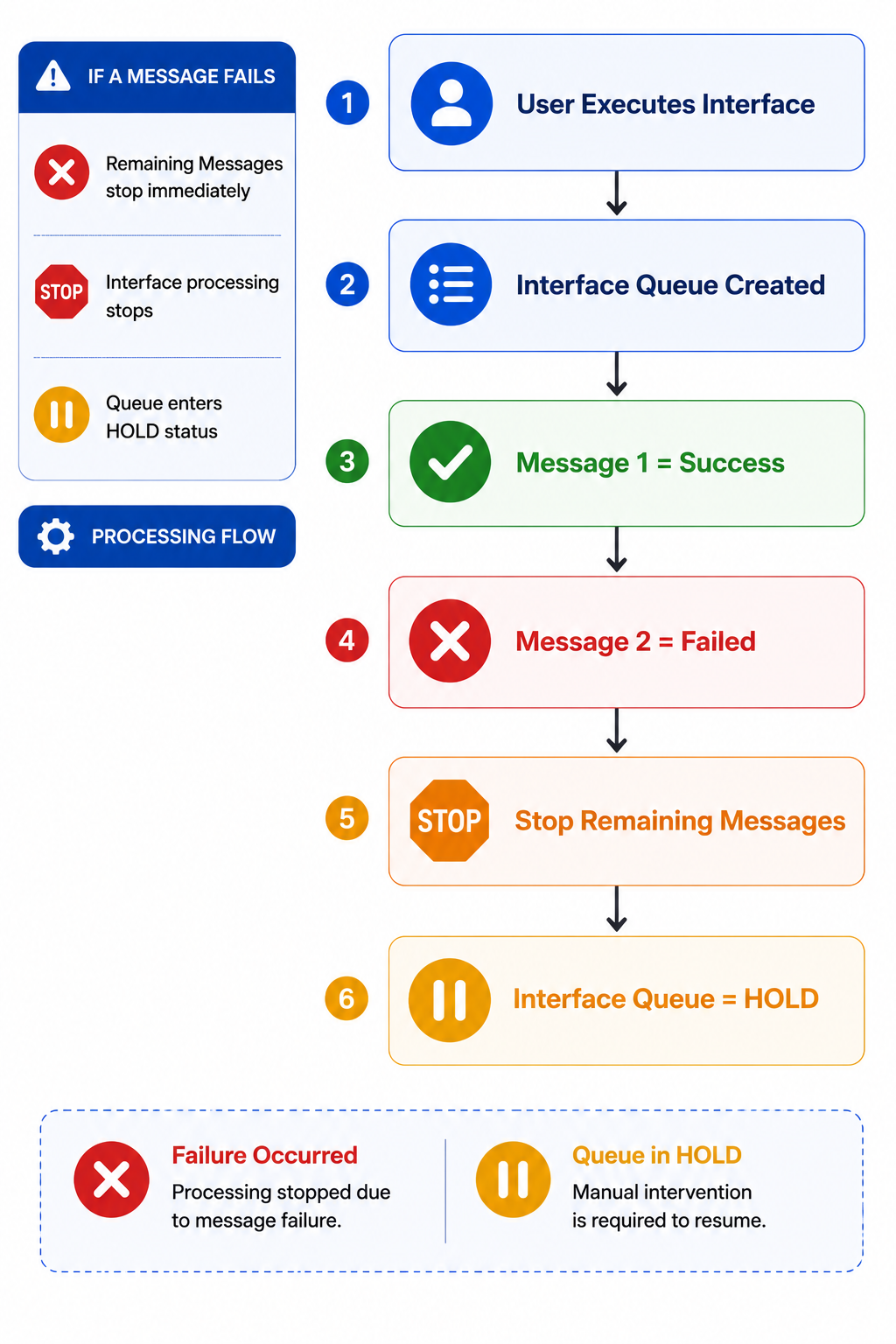

13.2 Processing Flow

13.3 Processing Result

• Processing immediately stops

• Queue becomes recoverable

• User intervention required before restart

14. EO Processing Behavior

EO means:
Continue Next Interface When an Error occurs.

Under EO processing:

• Interface failures do not stop remaining Interface execution

• Queue orchestration continues processing remaining Interfaces

14.1 Important EO Rule

When Processing Behavior \= EO:

• Interface Execution Mode is internally overridden

• All Interfaces behave as:


This applies even if the Interface configuration is:

• Stop when an error occurs

15. EO + Continue when an error occurs

15.1 Runtime Behavior

During processing:

• Failed Messages do not stop remaining Messages

• Failed Interfaces do not stop remaining Interfaces

• Queue processing continues until all Interfaces finish

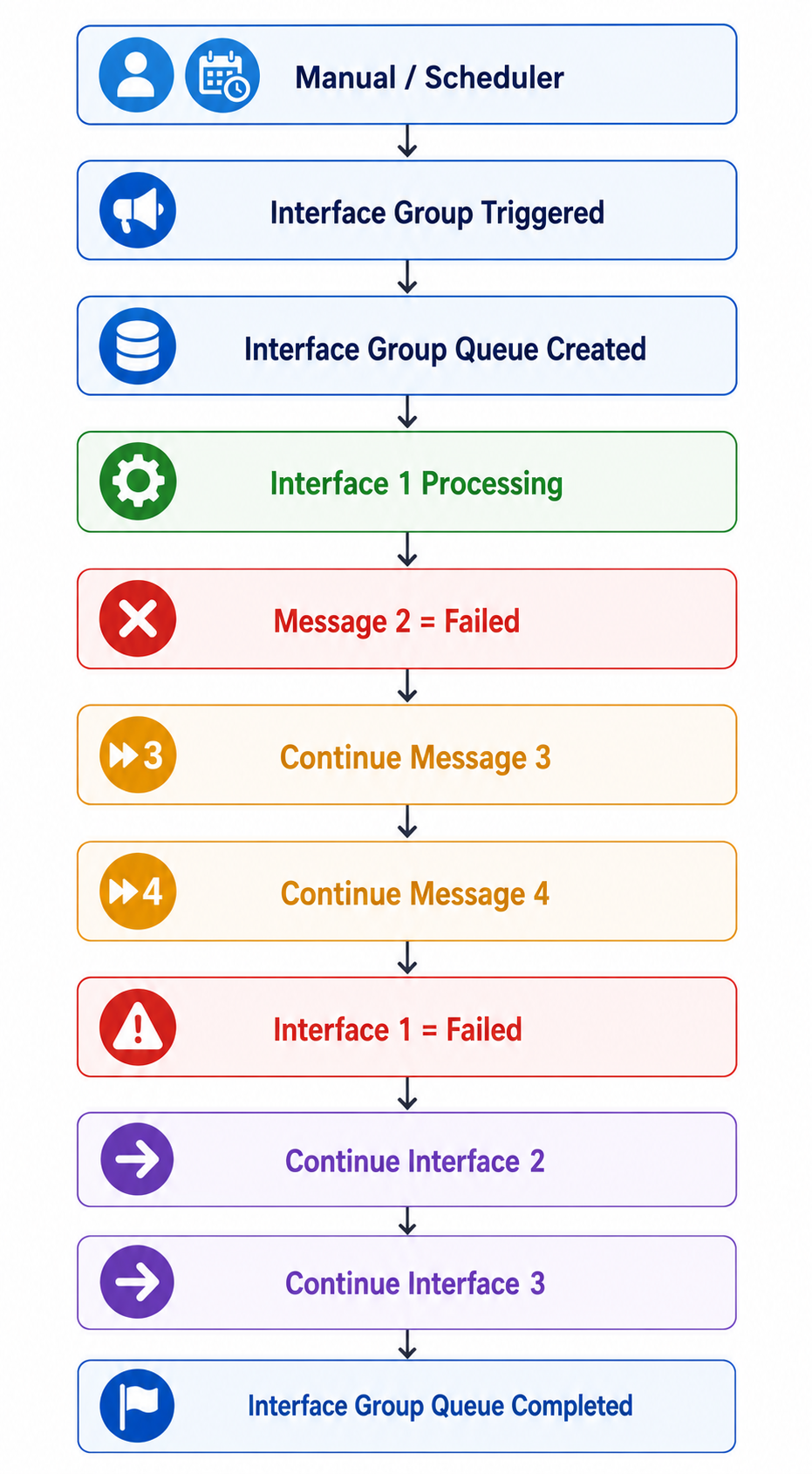

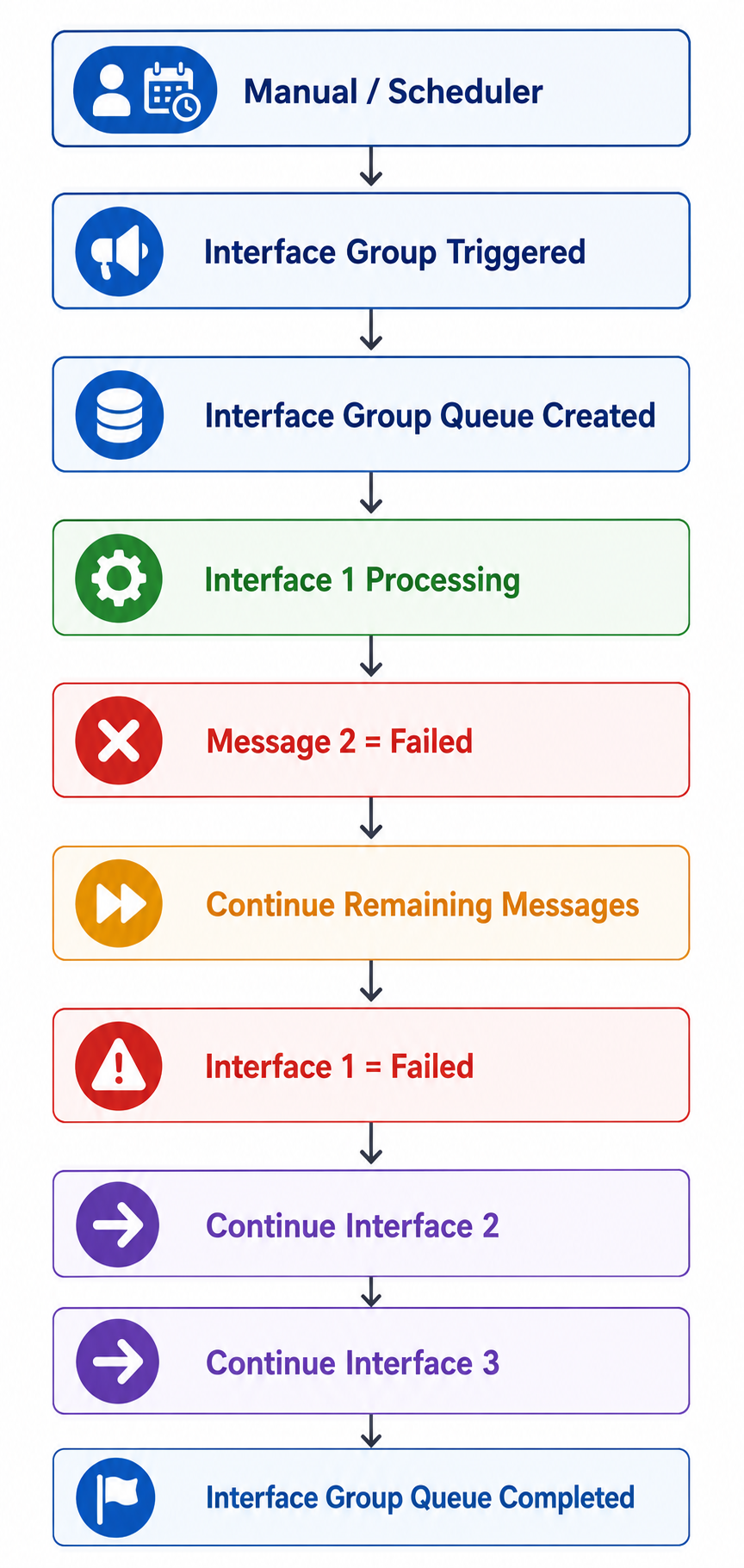

15.2 Processing Flow

15.3 Processing Result

• Remaining processing continues

• Queue orchestration never stops

• Queue completes successfully

16. EO + Stop when an error occurs

Even if the Interface configuration is:

• Stop when an error occurs

• Continue when an error occurs

16.1 Runtime Behavior

Under EO:

• Remaining Messages continue

• Remaining Interfaces continue

• Queue processing completes

**16.2 Processi

17. EOIO Processing Behavior

EOIO means:
Stop Next Interface When an Error occurs.

Under EOIO processing:

• Queue orchestration respects Interface Execution Mode

• Failed Interfaces stop remaining Interface execution

18. EOIO + Continue when an error occurs

18.1 Runtime Behavior

If one Message fails:

• Remaining Messages continue processing

• Interface eventually becomes Failed

• Queue changes to HOLD

• Remaining Interfaces stop processing

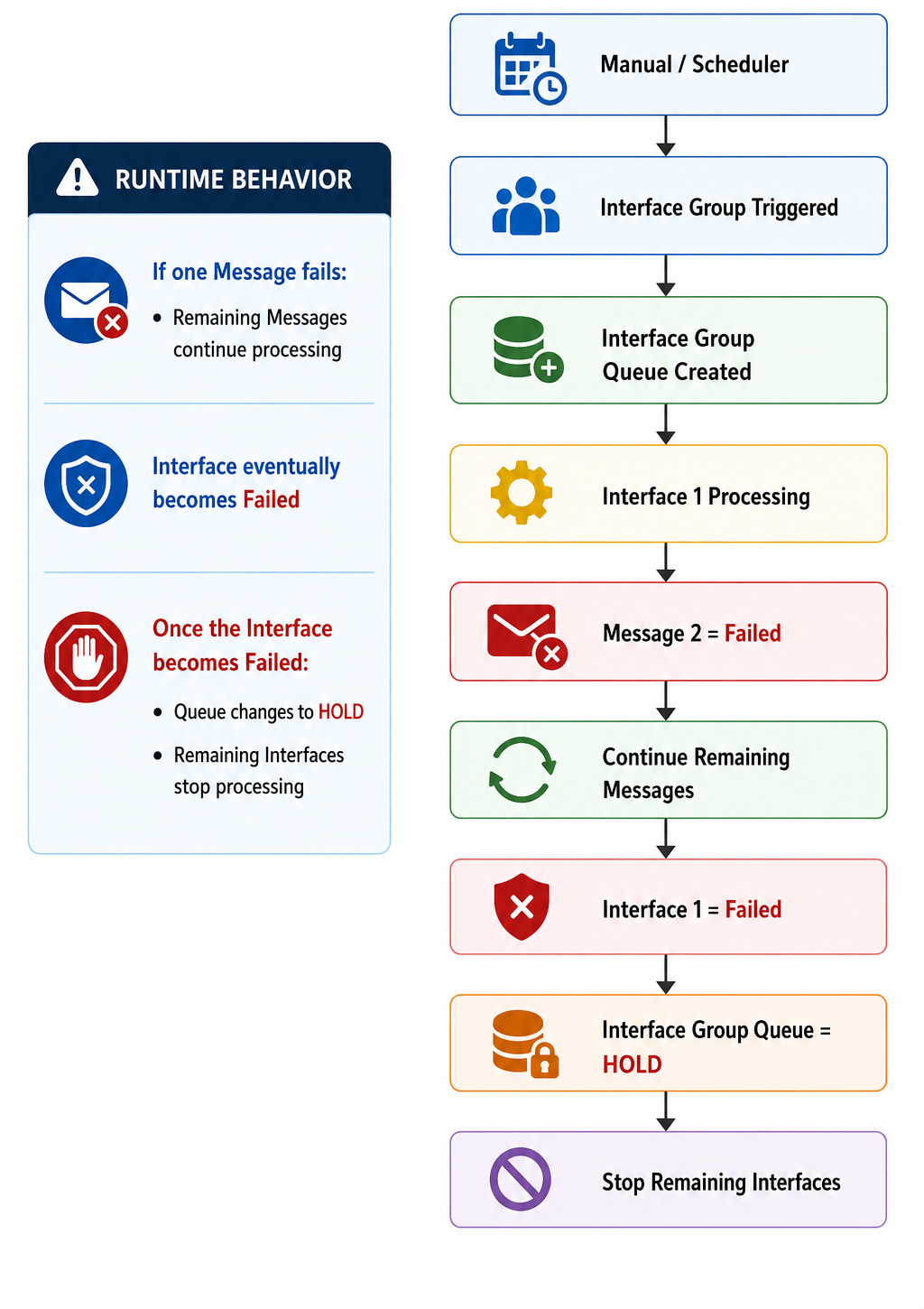

18.2 Processing Flow

18.3 Processing Result

• Current Interface finishes processing

• Queue orchestration stops afterward

• User recovery required

19. EOIO + Stop when an error occurs

19.1 Runtime Behavior

If one Message fails:

• Remaining Messages stop immediately

• Interface immediately becomes Failed

• Queue changes to HOLD

• Remaining Interfaces stop processing

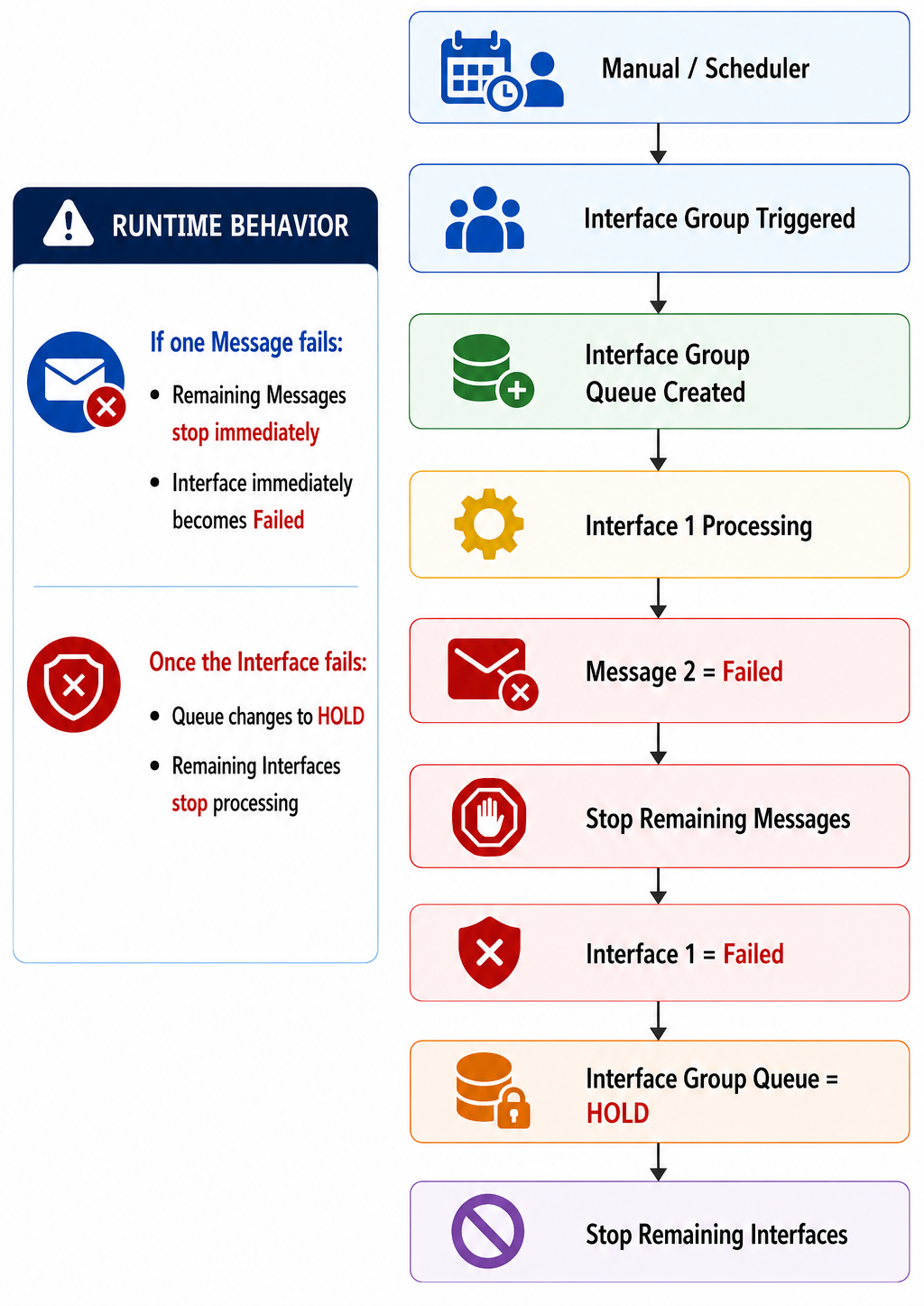

19.2 Processing Flow

19.3 Processing Result

• Processing stops immediately

• Queue enters HOLD status

• Remaining Interfaces are not executed

20. Restart Processing Strategy

Restart Processing Strategy controls where queue reprocessing resumes after recovery.

20.1 Available Restart Strategies

21. Continue from the beginning

Under this strategy:

• Queue reprocessing starts from the first Interface

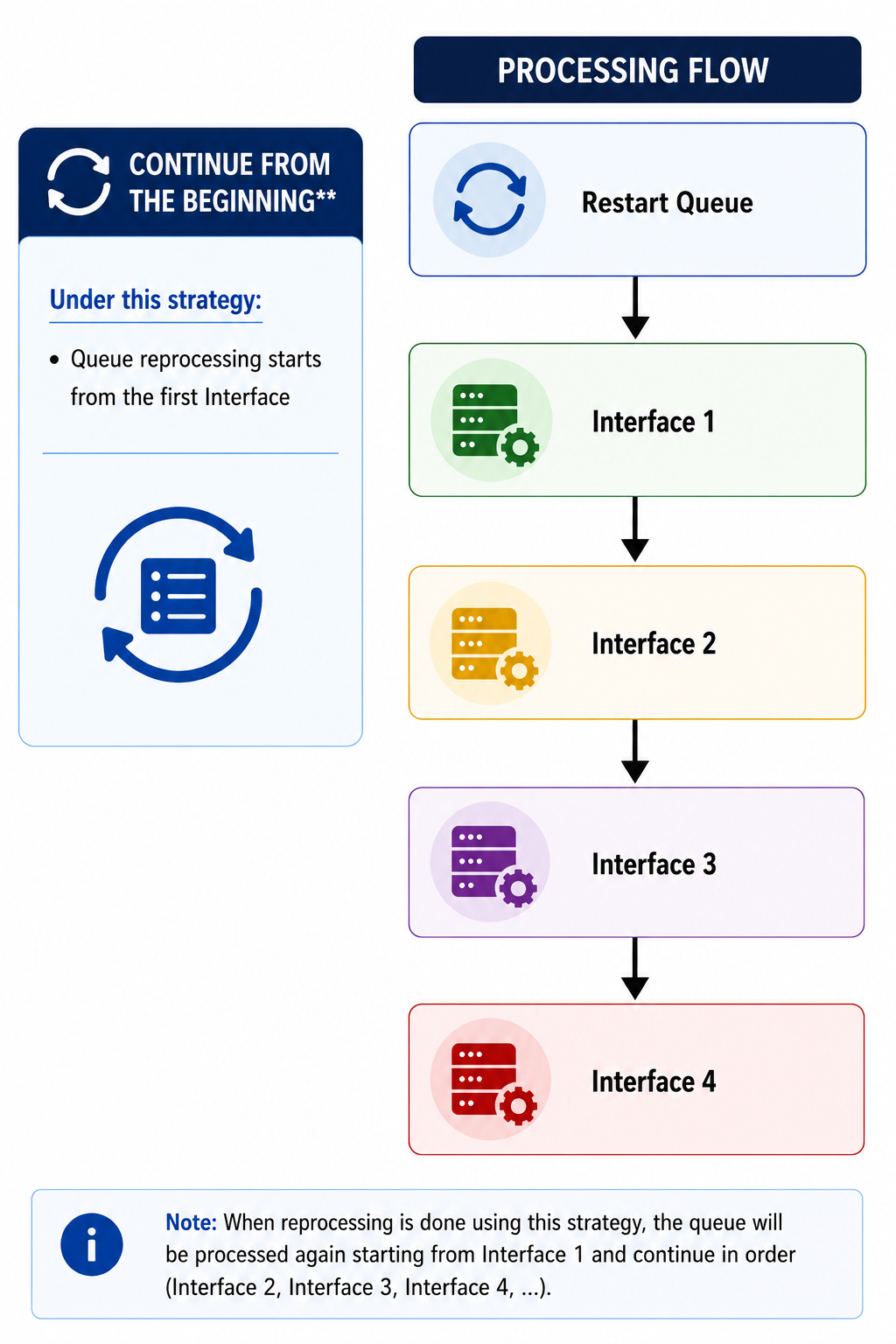

21.1 Processing Flow

This strategy ensures full processing consistency.

22. Continue from the failed interface

Under this strategy:

• Queue resumes processing from the failed Interface

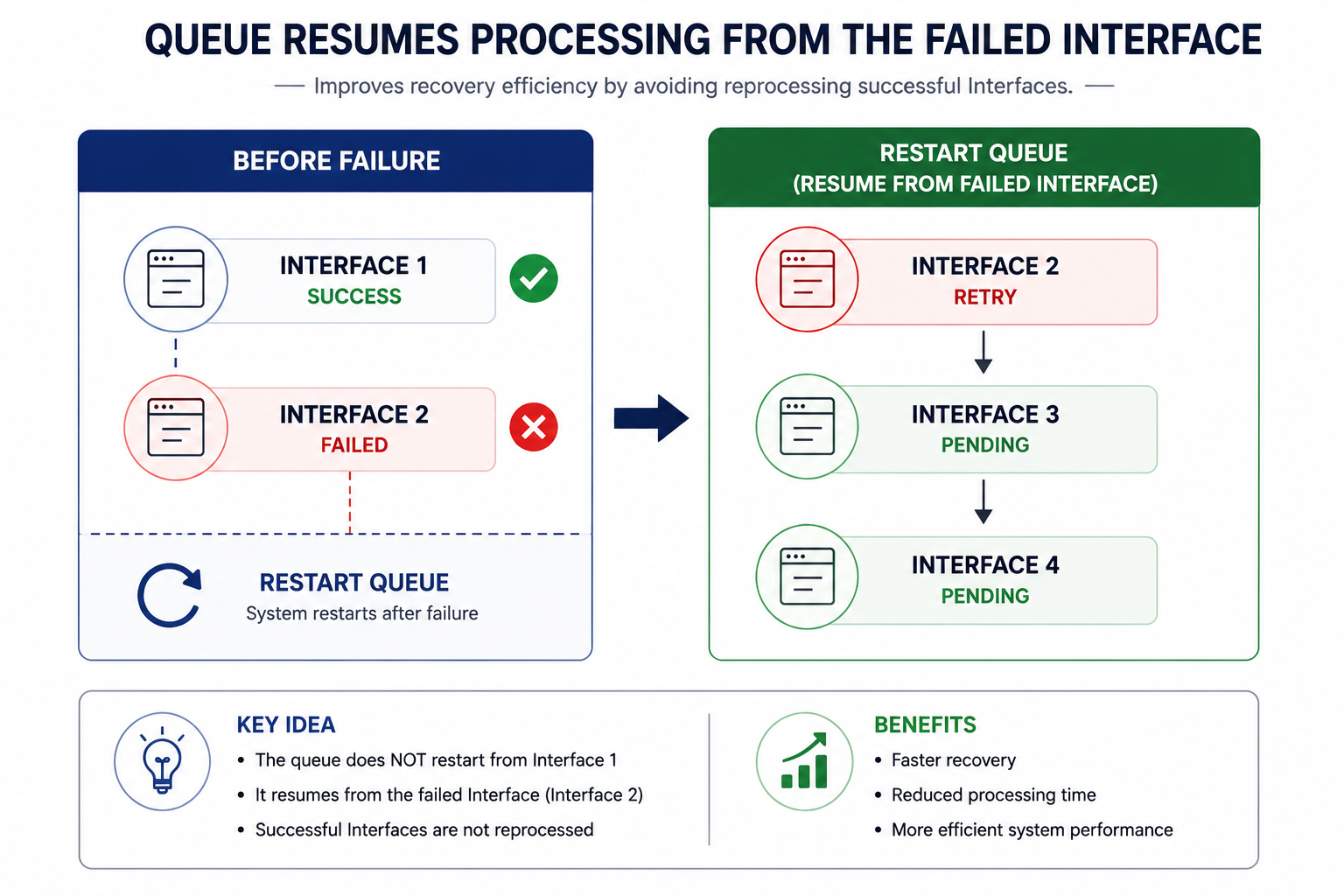

22.1 Processing Flow

This strategy improves recovery efficiency by avoiding reprocessing successful Interfaces.

23. Queue Recovery

Queues in HOLD status require manual recovery.

23.1 Recovery Steps

1. Resolve the failed issue

2. Change queue status:


1. Restart queue processing

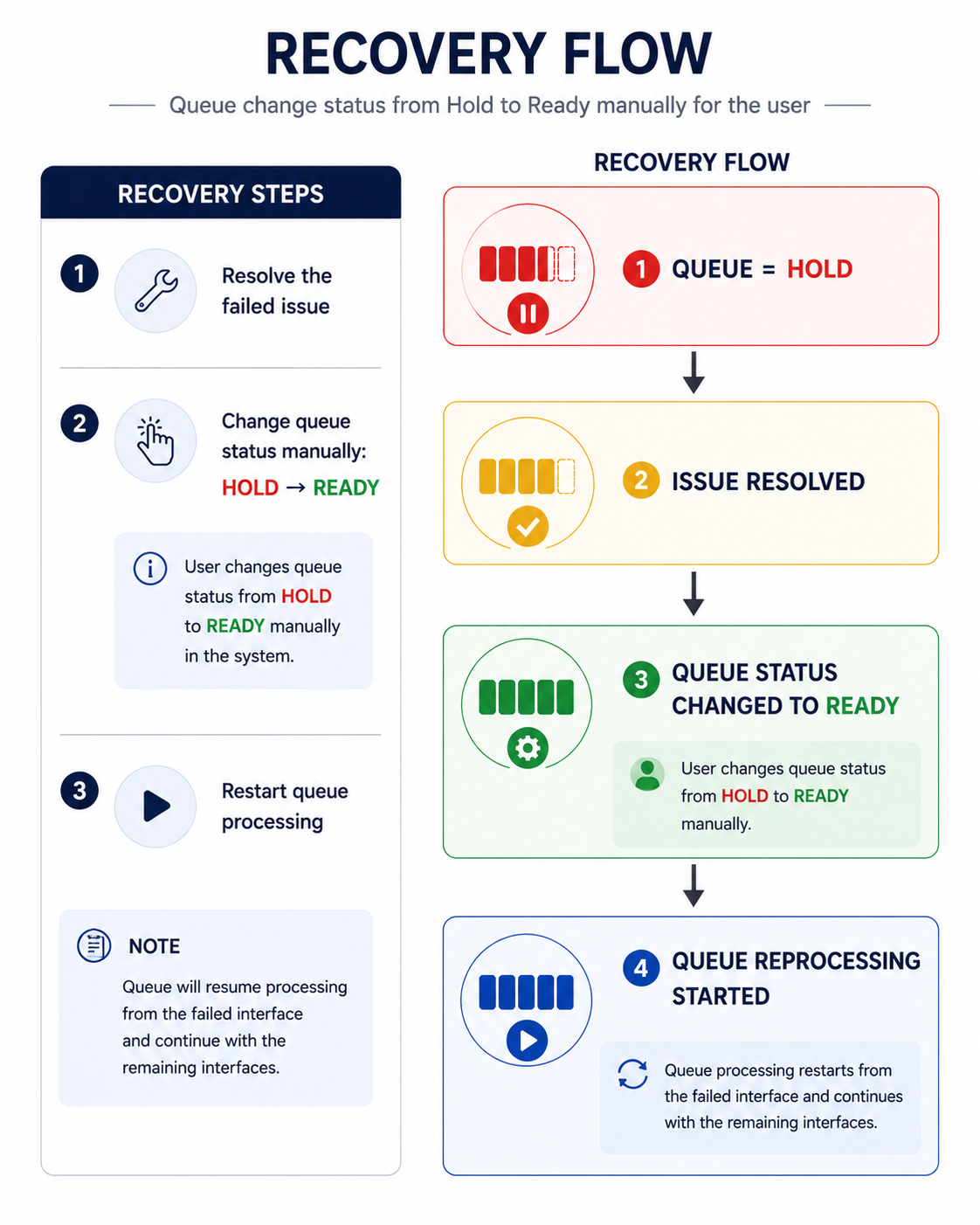

23.2 Recovery Flow

23.3 Typical Recovery Actions

• Correct invalid payload data

• Fix mapping configurations

• Restore authentication credentials

• Resolve connectivity issues

• Fix external system failures

24. Functional Summary

The Interface Group Queue framework provides:

• Enterprise-level runtime orchestration

• Sequential and parallel execution

• Message-level processing control

• Runtime monitoring

• HOLD and recovery management

• Restart processing strategies

• Operational governance and scalability
