8. Processing of interface group

Introduction

An interface group is a unit to group logical interfaces together. You can group an interface that is related to each other (Account and contact to one interface group) to the processing at the same time. Interface group is the object user define at configuration time. This processing can read data from Agent database adapter such as Oracle, Ms. SQL, My SQL,..... and it also can read data from Agent file adapter such as SFTP, FTP, and FTPs. We have two type interface group

EO: this group the member of the interface group can be processed in any sequence. We just need to start the execution of the different interfaces in the group after the order. The execution order can follow the sequence of the group, if the user has not defined the sequence then the execution order is random.
EOIO: The interface in this group will have the sequence number. The user must define the sequence number because we are processing the interface based on this sequence. If the group has an error, it will stop the processing of the group.

How to do manually an interface group type EO?

Go to Agent control board and connection destination .

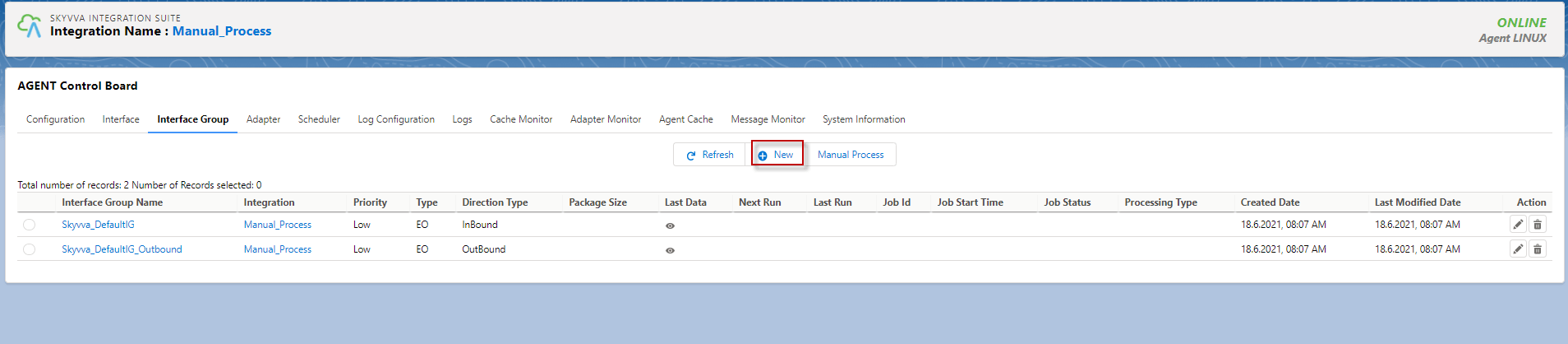

Go to Tap Interface Group on Agent Control Board and click New Button.

create an inbound interface group

Add interfaces into an interface group

Go to interface group detail and click on the "Add interface" button.

Do Manual process per-interface group

Before you do the manual process you need to check to make sure that the interface group, Adapter, Integration, IChain, mapping, or workflow that we set on an interface is caches retrieved.

Select on interface group and click on the Manual Process button.

After the user click on the Manual Process button.

You need to check the message monitor to ensure that salesforce received data from the database correctly.

How to run the scheduler per-interface group type EO? Step1: Agent Control Board

Before you run the schedule you make sure your interface group, Adapter, Integration, Interface, mapping, IChain, Workflow, is cache retrieved correctly.

The agent will be generated scheduler after the user click the scheduler tab

Set the time to Run At

Click on Action Button

After start the scheduler

Navigate to message monitor to check the result

How to do manually an interface group type EOIO?

Navigate to the Agent control board and click on the interface group tab. Click New button to create Interface Group

Create inbound interface group type EOIO

Add interfaces into an interface group

Before you do the manual process you need to check to make sure your properties are cache retrieved.

Go to the Interface group tab

select one interface group and click the Manual Process button.

After clicking the Manual Process button.

Checking the result on message monitor to ensure that database sends data to salesforce correctly.

How to run the scheduler per-interface group type EOIO? Step1: Agent Control Board

Before you run the scheduler you need to check to make sure that the interface group, adapter, interface, Ichain, Mapping, or workflow that we set on an interface is cache retrieved.

The agent will be generated a scheduler after the user clicks the scheduler tab.

Set the time to Run At

Click on the Action button.

After you start the scheduler.

You need to check the message monitor tab to make sure salesforce is received data from the database is correct.
