3. Alerting Scheduler for Batch processing with threshold value setting.

Alerting Scheduler for Batch processing with threshold value setting:-

• The scheduler is in the Scheduler Tab of the Batch Control Board. Its call Alert. Alert Tab is also created and it is used for monitoring Working Basket limit, and EOIO queue’s status. If the status of the EOIO queue(s) is 'Hold' or the threshold from the alert tab is smaller than the working basket value, a notify email will be sent to the assigned alert channels.
• The Alert Scheduler is to notify user email and send message to External Email when:

• To activate this alerting, you have to set up the alert in, “Alert” tab from Batch Control Board.  Input the value in Threshold including Email then Save. Start the scheduler.

Follow the procedure given below:-

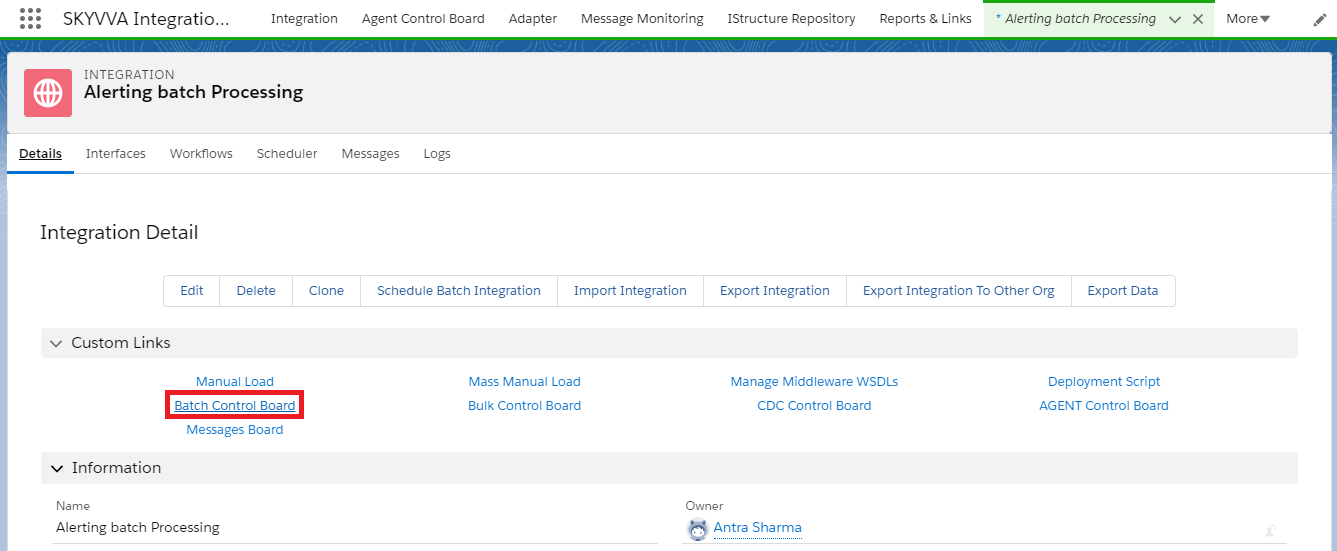

• Go to the Integration Detail page and click on the Batch Control board as shown below.

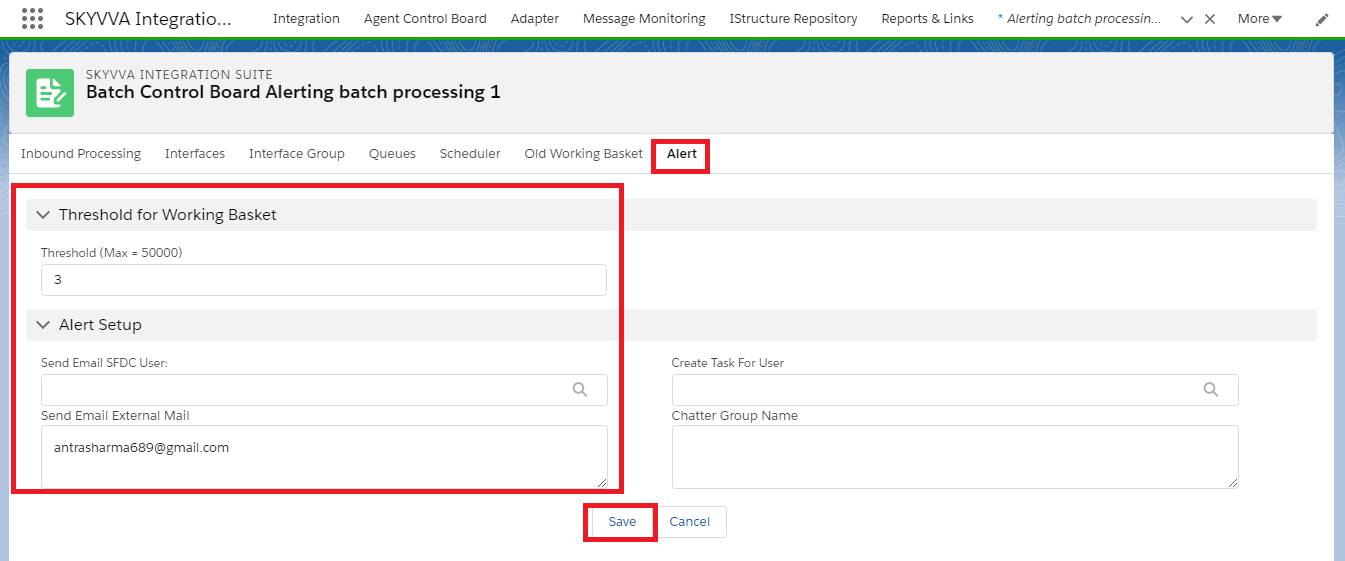

• At the Batch Control board click on "Alert" tab. And enter threshold value for example 3. Click on save button.

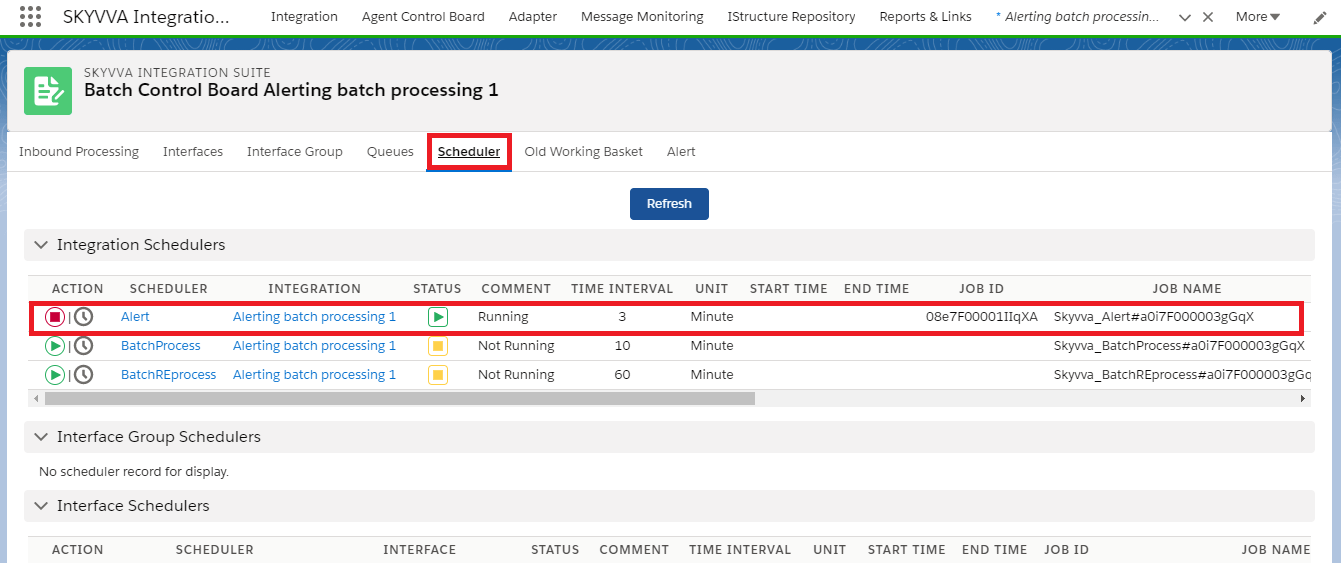

• Click on the Scheduler tab. And the start Alert Scheduler.

• After the time you set on the scheduler. Check the mail. As shown below.
