6.4 How to call S/4 HANA BAPI from Salesforce

Posting BAPI to SAP S/4 HANA From Salesforce using Skyvva SAP S/4 HANA Adapter

Importing BAPI/RFC's from Import SAP metadata To Import SAP metadata first we need to create SAP Connection in skyvva as shown below Go to Integration details tab and then select SAP Control Board

Provide the details as shown for the SAP system

In the Configuration tab. Provide the details Here we need to provide the sap configuration details as below Type: SAP S/4 HANA Deployment: Embedded Logical System: tr5 Host Url: http://xxxx.com Port: 16xxx Username: xxxx Password: SAPID: System Id Client: 820

Once we provide the details we need to ping the SAP Connection. Then we can see the pop-up like its successfully connected to SAP Backend.

Now we have to provide the salesforce details as shown below. Consumer Key and Consumer Secret we can get from the connected App.

Click on Ping Connection of Salesforce to check if its connected successfully.

We got the Consumer Key and Consumer Secret from App manager. With this connection. we can import the IDOC/RFC's from SAP. Create Metadata Provider

Create Repository

From the Repository Click on Import SAP Metadata Tab

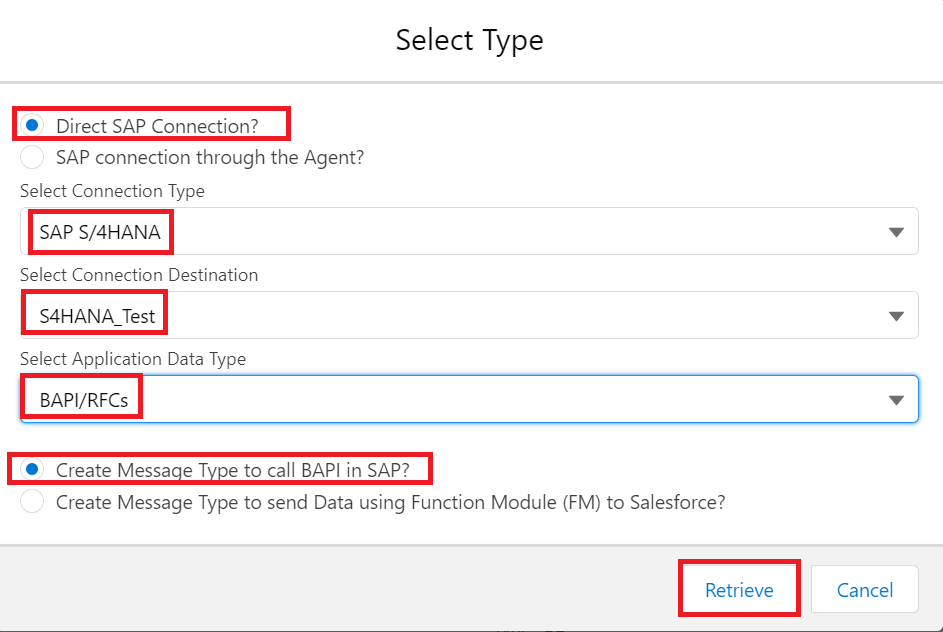

Here we need to give the details of connection type, Connection Destination which we created earlier in the SAP Control Board and Select the Application Data type BAPI/RFC's and then click on Retrive.

Select the BAPI name to create message type

Below is the message type template for BAPI

This message type we use in the outbound interface and inbound interface

Creating the SAP S/4 HANA Adapter in Skyvva We need to provide the following details to create the Skyvva SAP ERP adapter Name - Name of the adapter Type - SAP S/4 HANA Description - BAPI S/4 HANA Adapter Direction - Outbound Status - Active Deployment - On Premise objectFormat - BAPI

Connection Destination - It means the SAP Connection which we created earlier for the backend connection - S4HANA_Test Now click on save button to create the adapter. Creating an Outbound Request interface: Provide the Name, sObject type, Description, Processing mode, Status, Metadata provider, Repository, Message type, outbound adapter and the SQL statement as shown in the screenshots below In the message type we have to select the root message type then it will automatically point to Request in the request interface and point to Response in the response interface. In our example BAPI_CUSTOMER_CREATEFROMDATA1 is the root message type as shown below.

Add the response interface in the request interface.

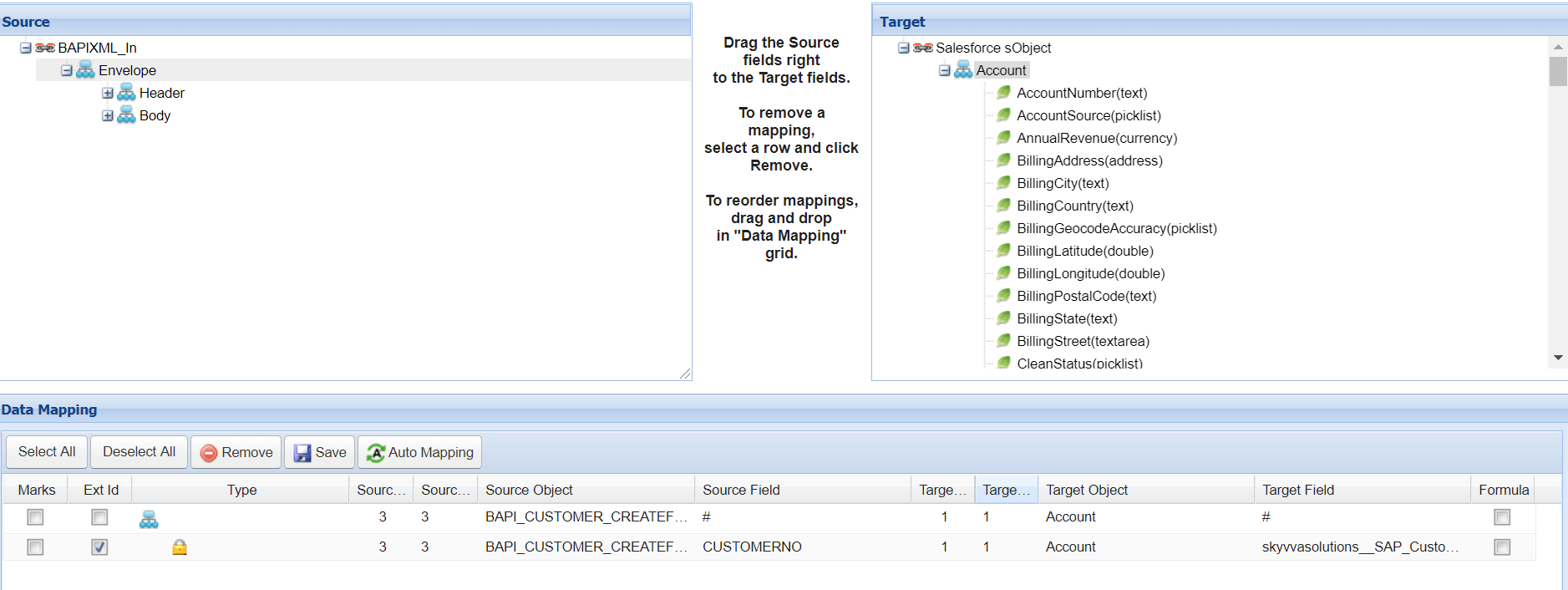

For outbound interface we have to do mapping in Skyvva as shown.

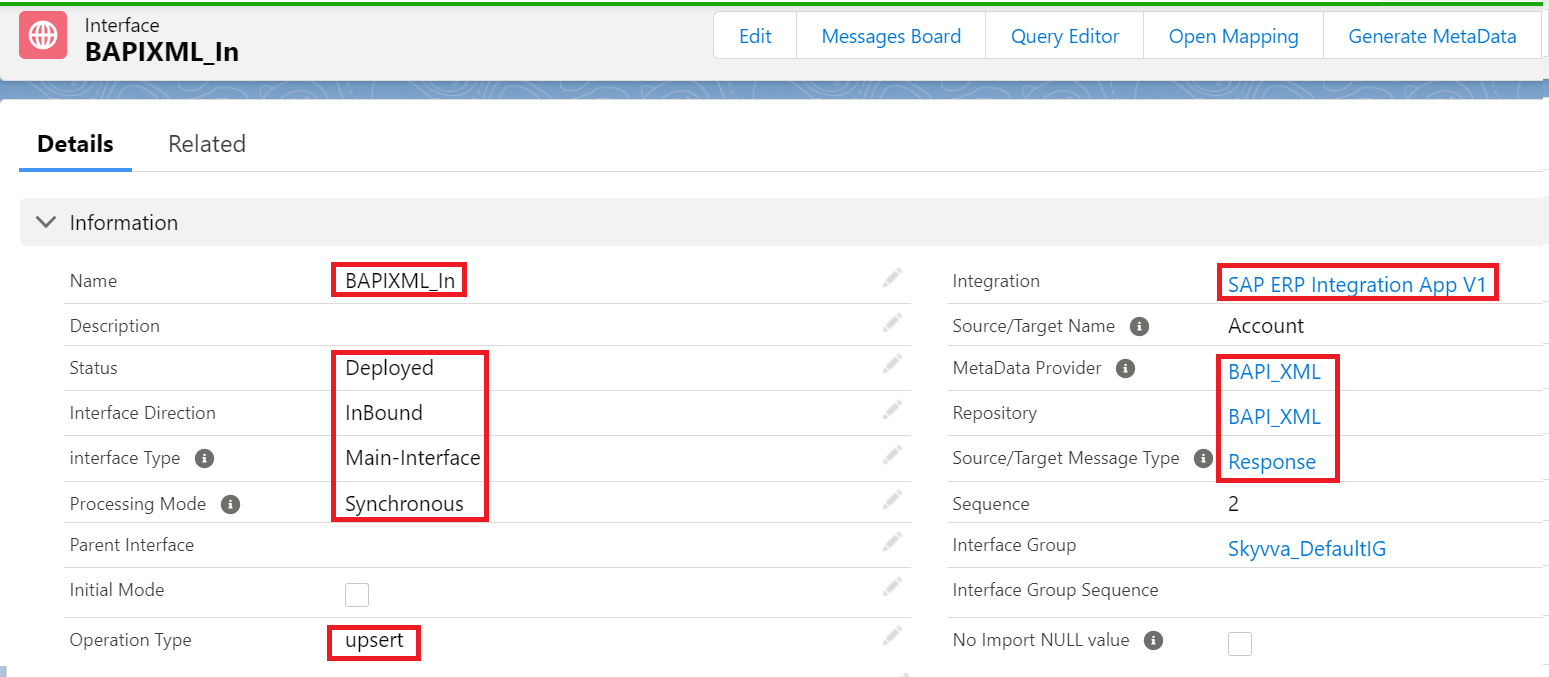

Save the interface once provide all the necessary details. Creating an Inbound Response Interface: Provide the Name, sObject type, Description, Processing mode, Status, Operation Type, Metadata provider, Repository, Message type as shown in the screenshots below

Do the inbound mapping as shown below.

Now do the callout using below apex code: skyvvasolutions.CallOutControl c=new skyvvasolutions.CallOutControl(); c.returnXml=true; c.returnListRecord=true; c.isCreateMessage=true; c.actionDoIntegrate=true; String[] ids=new String[]{'0013E00001DKgY9QAL'}; skyvvasolutions.Iservices.invokeCalloutV3('BAPIXML_ERP','BAPIXML_Out',ids,'SYNC', c);

Now we can see the message in the message monitor:

Click on Related to as shown in below screenshot

Then we can see the updated customer ID in SKYVVA as shown below
