9. CDD and CDT Scheduler.

CDC is made up of two components, the CDD and the CDT. CDC stands for Change Data Detection and CDT is stands for Change Data Transfer. These two components have different functionality. CDD is a scheduler that is running to call batch Apex in order to collect data change and save all those data into Change Pointer Object. CDT is another scheduler that is running to collect the records from the Change Pointer Object and sent to the external System such as SAP … etc. The Schedule will execute callout as a parallel of future, queueable, batch based on priority, integration resource, and interface group type (EO/EOIO). Change Data Detection Scheduler:- With CDD, you can detect all the changed data in Salesforce to any external system. CDD is a scheduler that is running to call batch Apex in order to collect data change and save all those data into the Change Pointer table. Change Data Transfer Scheduler:- CDT is another scheduler that is running to collect the records from the Change Pointer Object and sent to the external System such as SAP… etc. The Schedule will execute callout as the parallel of future, queueable, batch based on priority, integration resource, and interface group type (EO/EOIO). CDD and CDT Scheduler is located on three different pages

• CDC Control Board,
• Integration page detail
• Integration Admin Tab.

CDC Control Board: CDC Control Board is a dashboard where we can monitor Change Pointer, Interfaces, and Scheduler. Each tab holds different functionality. Change Pointer is a table that stores change pointer records. So we can monitor them on Change Pointer table in CDC Control Board rather than on the Integration Admin tab. This withal applies for Interfaces and Schedulers tab.

• Log in to Salesforce and enter the Integration detail page.
• Click on CDC Control Board

• Click on Scheduler Tab
• Set the time and start the schedule CDD or CDT.

 Scheduled CDD

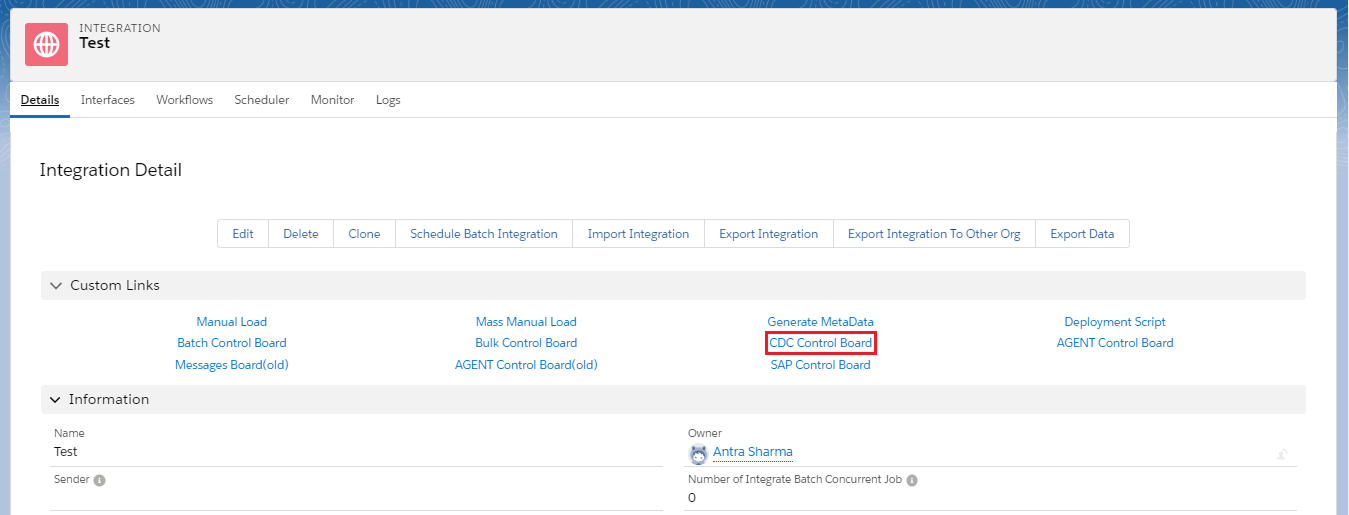

• Open Integration Details Tab
• Go to custom Link section and click on CDC Control board
• Go to the Scheduler tab.
• Start the scheduler on an outbound section and set the time as you prefer.

Step5: Monitoring CDD

• Enter Integration Details Tab
• CDC Control board Tab and apply a filter on:

-Integration name

• Interface Name
• Status
• Search

Schedule CDT

• Go Integration Details Tab
• Go to Scheduler Tab
• Start the Schedule and set the minute as you wish

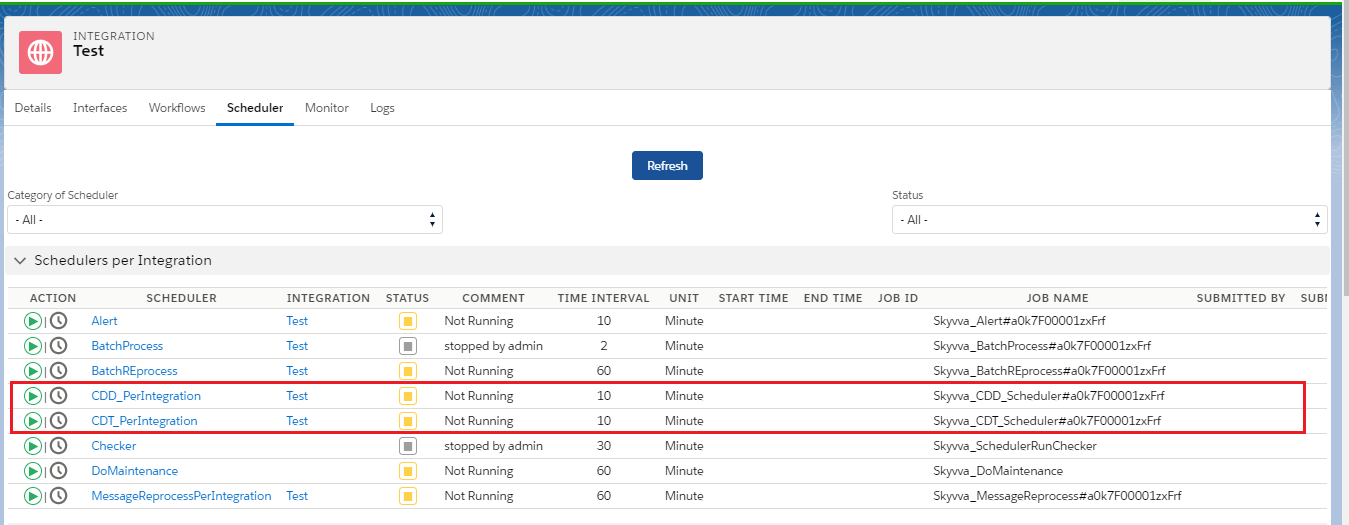

Integration Detail Page

• Log in to Salesforce and enter Integration Detail Page.
• Click on the Scheduler tab.
• And check the two schedulers.

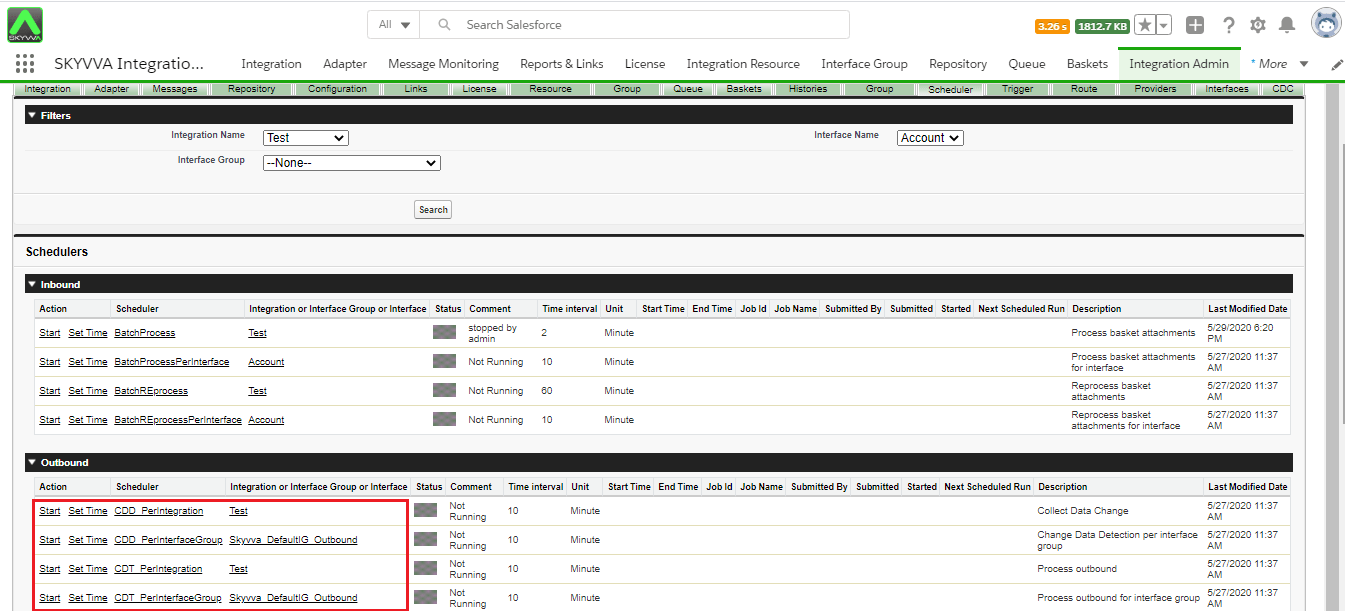

Integration Admin Tab

• Log in to Salesforce and select on Admin Tab
