6. V3 IntegrateWithIMessage API Service

How to create tree hold in hierarchical message type?

Since the user now completely understand; How to create tree hold in the hierarchical message type, by hitting upper link now we guide to follow below: How to Use SKYVVA V3 IntegrateWithIMessage Inbound API Services

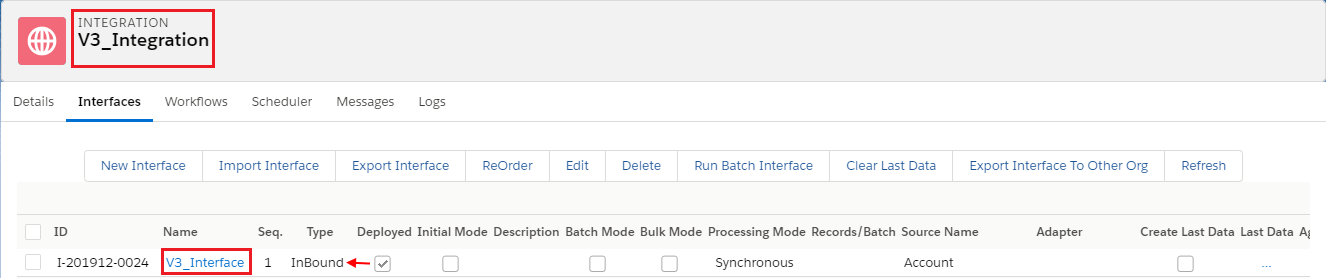

Now Create an Integration
Create Inbound Interface

Search

MetaData Provider
Repository
Source/Target Message Type
Click on Open Mapping Button

Map the target fields according to AccountTestV3, ContactTestV3, CaseTestV3 to the Salesforce Source sObject
Save

[su_box title="Note" box_color="#2a8af0" title_color="#000000"]

User have to map node to node first Example: AccountTestV3 to Account, ContactTestV3 to Contact(AccountId) & CaseTestV3 to Case(ContactId)
Similarly Copy both InterfaceID which is _V3_Interface_Contact_1.1 & _V3_Interface_Case_1.1.1 after mapping from IChainedInterface section's Related List of V3_Interface
Copy both Interface Id's to our json code "a0a2v00000ZibjuAAB""a0a2v00000ZibjvAAB"

[/su_box] Switch to the Classic Mode and copy URL, currently, we are supporting Classic URL and again Switch to classic mode.

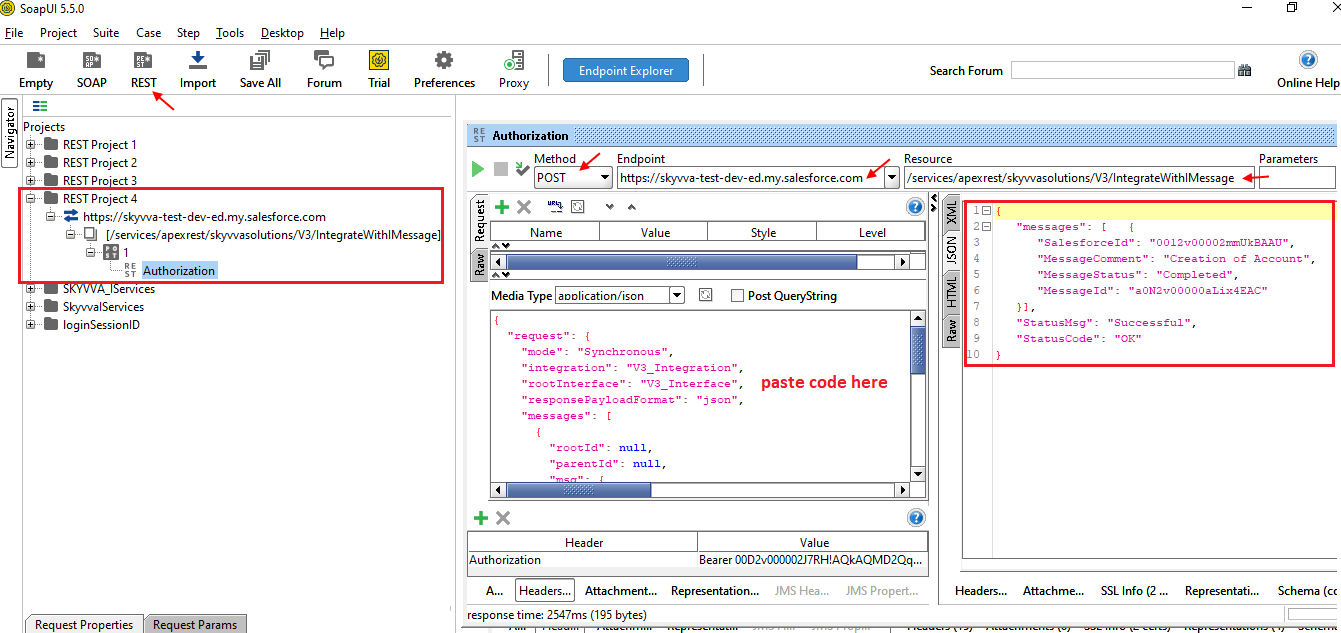

Go to Soup UI

Click on REST
Create a New Project
End point https://skyvva-test-dev-ed.my.salesforce.com
REST Project 3
Provide Name Authorization
Method POST

Now follow the fig. Which is shown below URL : https://skyvva-test-dev-ed.my.salesforce.com Resource : /services/apexrest/skyvvasolutions/V3/IntegrateWithIMessage [aux_code language="javascript" theme="tomorrow" title="" extra_classes=""]{ "request":{ "mode":"Synchronous", "integration":"V3_Integration", "rootInterface":"V3_Interface", "responsePayloadFormat":"json", "messages":[ { "msg":{ "Name":"IM#2020-01-03 01:21:55.639001", "skyvvasolutions__Type__c":"InBound", "skyvvasolutions__Status__c":"New", "skyvvasolutions__HasChild__c":true, "skyvvasolutions__HLevel__c":0, "skyvvasolutions__HPath__c":"/Account[0]", "skyvvasolutions__isRoot__c":true, "skyvvasolutions__TransferId__c":"1234", "skyvvasolutions__ProcessMode__c":"Hierarchical", "skyvvasolutions__Data__c":"{\"AccountNumber\":\"10001\",\"Name\":\"TestAccount1\",\"BillingCountry\":\"Cambodia1\",\"BillingCity\":\"Phnom Penh1\",\"Account_ID\":\"A-001\"}", "skyvvasolutions__External_Id2__c":"RSAZ-JZWCYZ0M", "skyvvasolutions__Integration__c":"a0W2v000019f2zPEAQ", "skyvvasolutions__Interface__c":"a0a2v00000ZiaweAAB" } }, { "rootId":"RSAZ-JZWCYZ0M", "parentId":"RSAZ-JZWCYZ0M", "msg":{ "Name":"IM#2020-01-03 01:21:55.639001", "skyvvasolutions__Type__c":"InBound", "skyvvasolutions__Status__c":"New", "skyvvasolutions__HasChild__c":true, "skyvvasolutions__HLevel__c":1, "skyvvasolutions__HPath__c":"/Account[0]/Contact[0]", "skyvvasolutions__isRoot__c":false, "skyvvasolutions__TransferId__c":"1234", "skyvvasolutions__ProcessMode__c":"Hierarchical", "skyvvasolutions__Data__c":"{\"Cont_ID\":\"C-001\",\"Last Name\":\"Dara1\",\"FirstName\":\"Contact1\",\"Email\":\"test.2019_1111@gmail.com\",\"Phone\":\"1111\"}", "skyvvasolutions__External_Id2__c":"HOIK-JZWCYZ1Z", "skyvvasolutions__Integration__c":"a0W2v000019f2zPEAQ", "skyvvasolutions__Interface__c":"a0a2v00000ZibjuAAB" } }, { "rootId":"RSAZ-JZWCYZ0M", "parentId":"HOIK-JZWCYZ1Z", "msg":{ "Name":"IM#2020-01-03 01:21:55.639001", "skyvvasolutions__Type__c":"InBound", "skyvvasolutions__Status__c":"New", "skyvvasolutions__HasChild__c":false, "skyvvasolutions__HLevel__c":2, "skyvvasolutions__HPath__c":"/Account[0]/Contact[0]/Case[0]", "skyvvasolutions__isRoot__c":false, "skyvvasolutions__TransferId__c":"1234", "skyvvasolutions__ProcessMode__c":"Hierarchical", "skyvvasolutions__Data__c":"{\"Subject\":\"ErrorCase1\",\"SuppliedPhone\":\"1111\"}", "skyvvasolutions__External_Id2__c":"V3GP-JZWCYZ1Z", "skyvvasolutions__Integration__c":"a0W2v000019f2zPEAQ", "skyvvasolutions__Interface__c":"a0a2v00000ZibjvAAB" } } ] } } [/aux_code]

Go back to Salesforce Click on Message Monitoring Tab

Select your Integration Name
Select Interface Name
OK

Scroll down to Message section

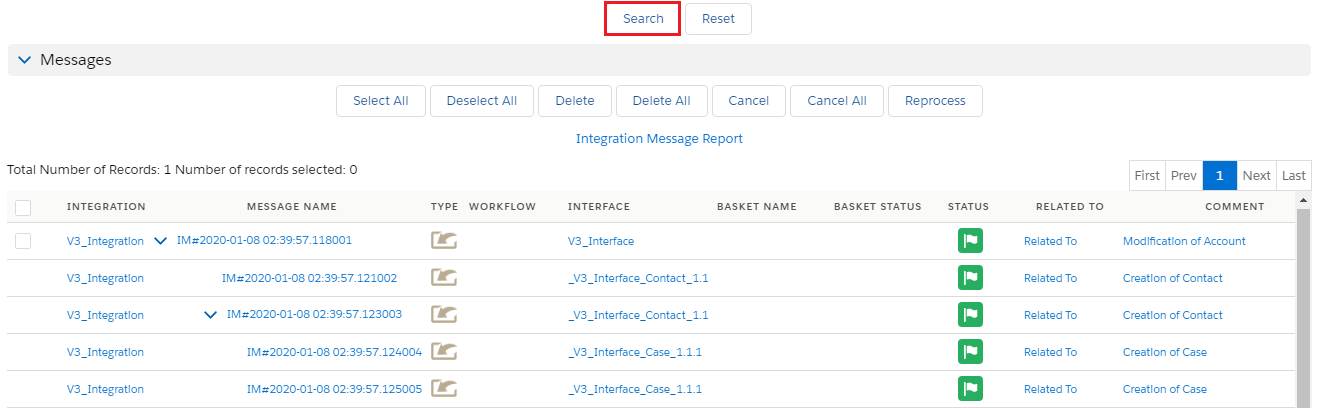

Click on Search Button
See record Create Successfully
