1. Administration of the Agent using the Agent Control Board

Introduction

The new agent control board is a component which can connect different application system. Besides the component connect that we build on salesforce already.  But some protocol we cannot build on salesforce which technically not possible. That’s why we build a new component called “Any Connect” which is based on apache camel is open source around the world.

Screen Configuration:

Kanban TAB Salesforce -> Agent This is the second Kanban tab. On this tab, we define a new connection for the direction Salesforce -> Agent. If the user selects an existing connection then we will display the configuration and the user can, for example, do a ping test. In a new creation mode, he will enter the properties needed for the connection from Salesforce to Agent.

After entering the data the user can click on the button 'ping' to make a ping test. If success he can save the setting to the table 'adapterInstance__c' where the field direction is set to 'SF2A'. The record is only saved into the Salesforce table and not to the H2 database on the agent. Caching this record is not needed. In this screen, the user can create the connection to different agent instances and for each instance, we will create a record in the table 'adapterInstance__c'. Screen Configuration: Kanban TAB Agent -> Salesforce This is the third kanban tab. This tab is the 'Agent -> Salesforce' tab where we can display the connection entry for the direction Agent -> Salesforce and do the ping test or create a new connection. We need to specify the credential to log in to Salesforce from the Agent. We need different fields for authentication. For the basic authentication, we need the following fields are

These Articles provide users a cosmetic overview of the Administration part to maintain our SKYVVA Any Connect. Articles also explain to the user, How to install SKYVVA Any Connect, features, and working. Follow the Reference link for more understanding - How to use the Agent Control Board?

Since the user now completely understand; How to use the Agent Control Board, by hitting the upper link, now we understand the Architect of the Agent Control Board to follow below:

Connections save successfully

To ensure that your system's cache after performing a system refresh. It appears that the cache was up-to-date after using the "Save" button, which uses an updated connection that includes the correct client-id and client-secret.

To ensure that the cache remains synchronized with the SKYVVA Integration Agent app, it is necessary to perform the "Save" step after every system refresh. This is important because the new object Id’s need to be synced to the agent again. If user skip this step, the cache will continue to contain the old object Ids from before the system refresh.

By following this process consistently, user can maintain an accurate and updated cache that reflects the current state of the system.

If the connected app was deleted after a system refresh and user are unable to restore the connection using the function on the configuration tab, updating the connection manually would indeed be the correct way to proceed. Since the connected app is no longer available, user cannot rely on automated restoration methods.

To update the connection manually in Salesforce, user will need to follow these general steps:

By updating the connection manually, user can reestablish the integration between your Salesforce instance and the SKYVVA Integration Agent app that was previously connected.

[su_box title="Note" box_color="#2a8af0" title_color="#000000"]Once user have completed these steps, the SKYVVA Integration Agent app should be ready to use the new client-id and client-secret for the updated connection. The cache should be rebuilt with the updated data, and all adapters should be linked to the correct connection. [/su_box]

To carry out the steps you provided after a system refresh, follow these instructions:

Obtain the new client-id and client-secret required for the updated connection.

Identify the cache or caching mechanism used in your system.

Review the adapters in user system that rely on the connection you updated in step 1.

[su_box title="Note" box_color="#2a8af0" title_color="#000000"]During setup, the SKYVVA Integration Agent will establish a connection destination, which refers to the target location where it will send the updated cache record. This connection destination could be an API endpoint. The agent will configure the necessary parameters such as the endpoint URL. [/su_box]

[su_box title="Note" box_color="#2a8af0" title_color="#000000"]

[/su_box]

Agent Control Board has these Tabs Configuration Tab — In which user has to Provide all information under the : PROPERTIES FILE Tab

AGENT Server Credential under Salesforce–> AGENT Tab user has to provide the info.

Salesforce Credential under Agent-> Salesforce Tab user has to provide the info.

User has to provide all such information then the only user has to play with Agent Control Board Interface Tab — Through which the user has to select Interface which is already linked (child) of Integration and further process into Salesforce respectively

Interface Group — There are two types are Interface Group

Users can easily Edit, Delete, and create new information on Interface Group Name with the help of radio button options.

Adapter Tab — Through which the user can get all Inbound and Outbound Adapter type which is already linked with the related list on Interface detail page called Inbound Setup & Outbound Setup. Users can easily create, edit update and delete Adapter.

[su_box title="Note" box_color="#2a8af0" title_color="#000000"]

[/su_box] Schedulers — Through which the user can get all Inbound and Outbound Schedulers related to Integration  Schedulers is a type of scheduled job which runs regularly bases on-time setting.

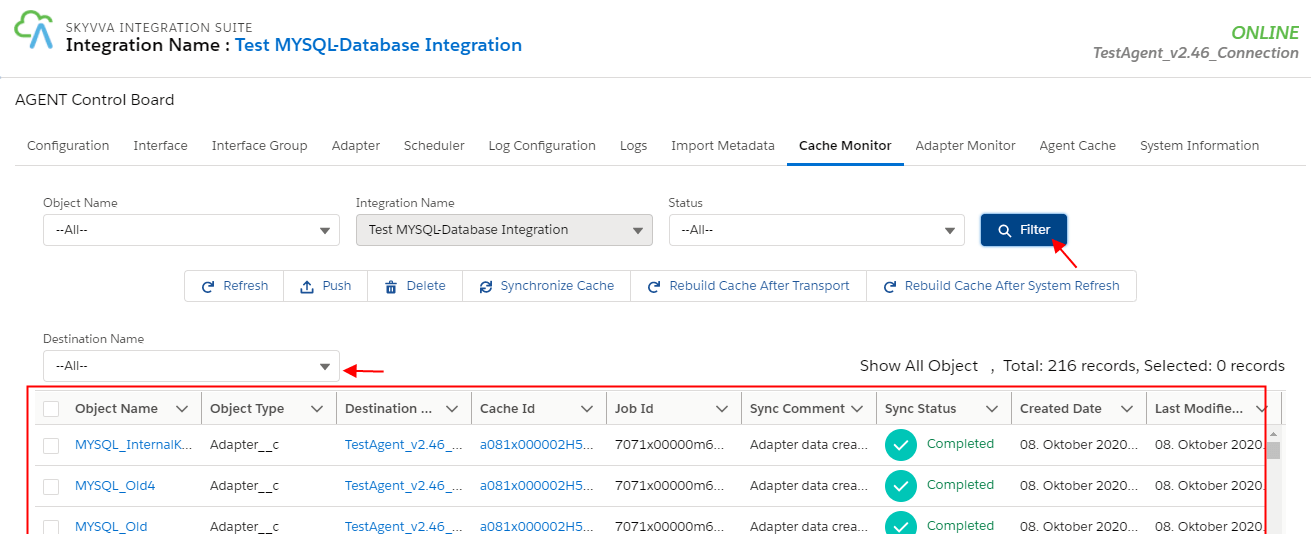

Cache Monitor — Monitor is used to checking the integration result after processing the Inbound or Outbound interface. The integration result includes Pending, Failed, Completed, Cancelled status, and the reason why it failed. Additionally, we can know the real sObject is integrated successfully with completed status. –  How to use Cache Monitoring?

Logs — The log tab is used to show the log file from the Agent. The physical log file is created and kept in the local folder of the Agent and we need to view the file in Salesforce because we don't want to get into the Agent Server. Sometimes we don't have any access from the customer to access the Agent-Server and thus it is not possible to read the log file to analyze the error. Therefore we want to have the possibility to get the log file and show it on the Log tab in Salesforce.

Log Configuration — We're using Logback as the controlling framework for Logs. Logs will be segregated in mainly 2 categories are

At any point in time, we can update the Logging configuration through the APIs build in the system. There will be a default Logging setting which will remain active in case of any starts or restarts of the Agent service. This Logging is not present in the DB rather in the logback.xml. At any point, if we want to create a logging profile, we can do so using the APIs built and described below. Then to activate we need to use activate API. –  How to use Log and Log Configuration Tab on Agent Control Board?

Import MetaData— The new agent control board is a component which can connect different application system. Besides the component connect that we build on salesforce already.  But some protocols we cannot build on salesforce which technically not possible. That’s why we build a new component called “Any Connect” which is based on apache camel is open source around the world. –  How to Import Metadata from Agent Control Board?

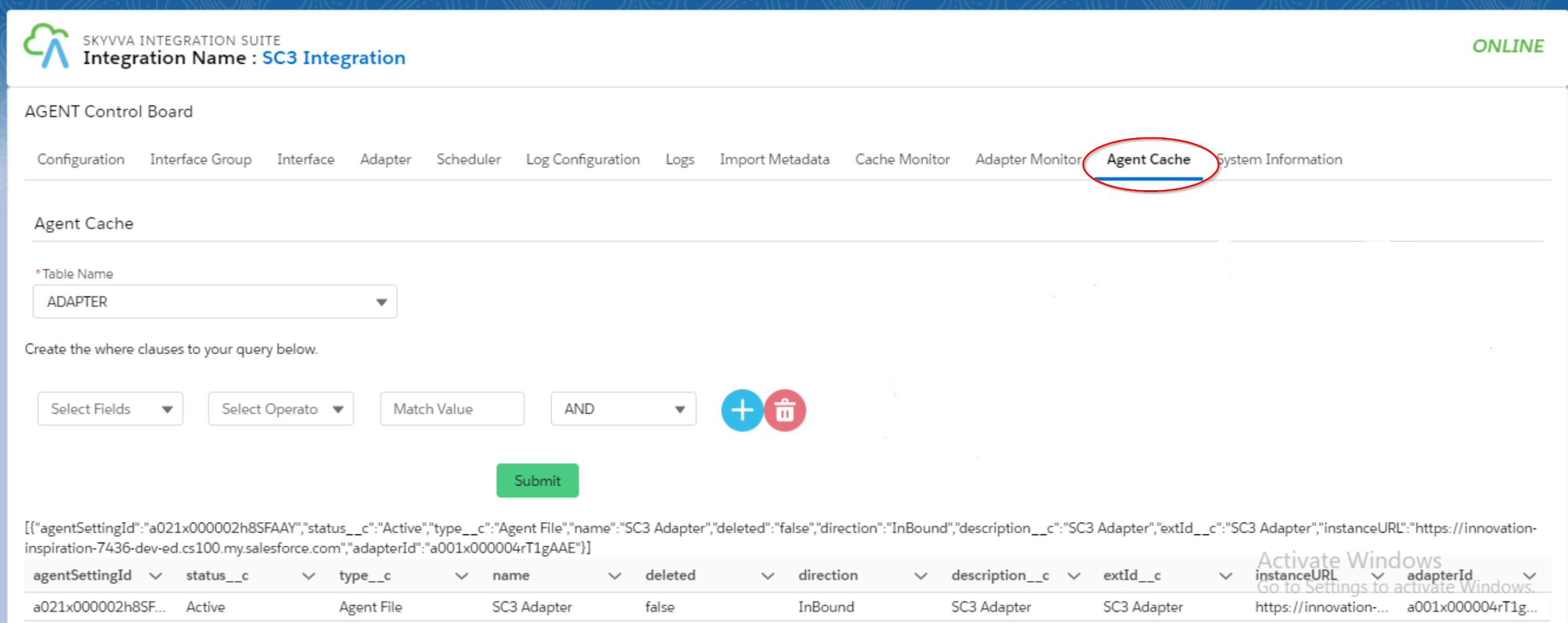

Agent Cache— This tab shows us the table content e.g the cache on the h2 database in the Agent. We have to control and verify the content if it is caching down to the Agent and if the content is correct. Getting this possibility we do not need to ask the customer for the access to h2 database on their installation. We can do it the right way as SKYVVA support to find the inconsistency regarding the cache in between Salesforce and Agent. This simplifies our support life later in production use to the Agent.

–  How to use Agent Cache on Agent Control Board?

Adapter Monitor— This function allows the user to monitor the adapter. We provide only the monitor the file adapter to see files in the folder that users have to specify in the adapter property at the moment. This helps user to see, if we have too many files and thus it reaches a critical situation eg. we have stuck. Kafka and pulsar adapter could make sense to see the message in the queue/topic. But we have not found any function which allows user to look into the queue without consuming the content and thus remove it automatically after the view. Therefore it makes sense from the business requirement but technically we cannot do that.

System Information

AGENT

Operating System

Memory
