3. How to use Agent File Adapter For Producer

Introduction

In this tutorial, we will learn how Agent File Adapter works for Producer. Agent File adapter for producer uses for writing a file from salesforce to file. Agent file adapter for Producer means outbound Agent File Adapter. To use the Agent File adapter for Producer, we need to configure the Agent Control Board, and we need to create an Agent File Adapter. In this chapter, we will learn how to use the Agent File adapter for the producer, and we will know how to do outbound with CSV, Excel file type.

Pre-required

Firstly, you need to have some required step before you can use the Agent File adapter:

Create Metadata Provider, Istructure Repository
Create Integration and Configure a new agent control board
Create Agent File Adapter (Outbound) on the new Agent Control Board
Create an Outbound interface
Checking Cache monitoring status
Callout to new Agent

How to use Agent File Adapter for Producer? Step-1: Create Message Type

Create Metadata Provider
Create a Repository

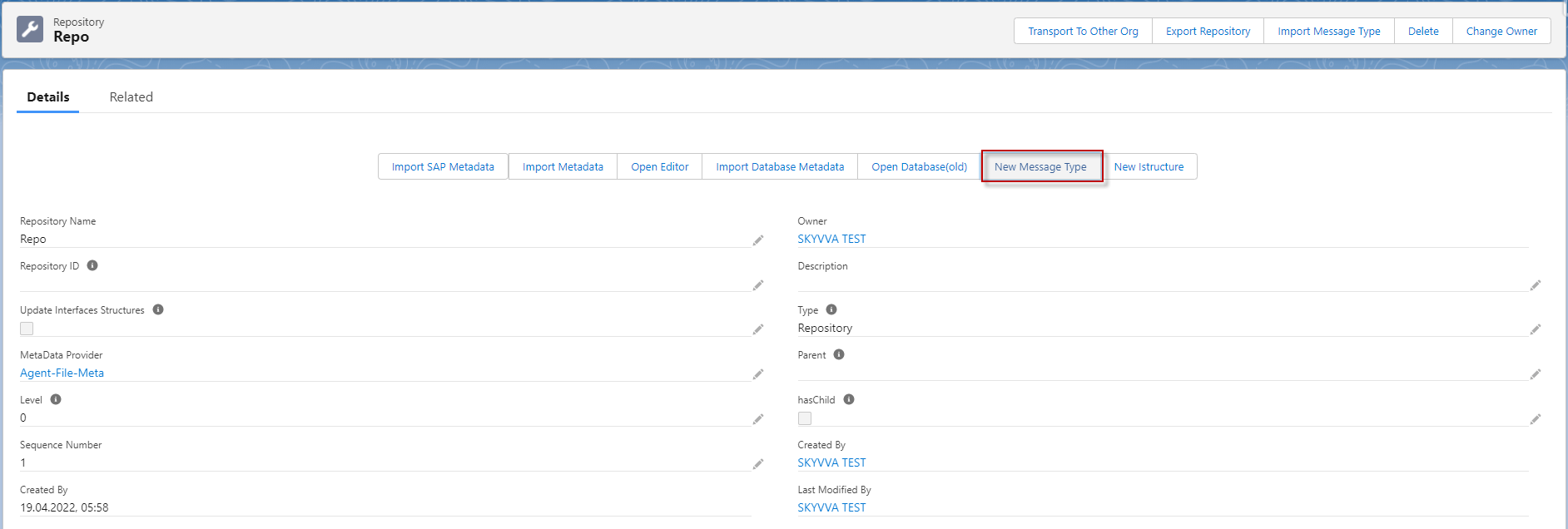

Go to the Repository details page then click the New Message type button

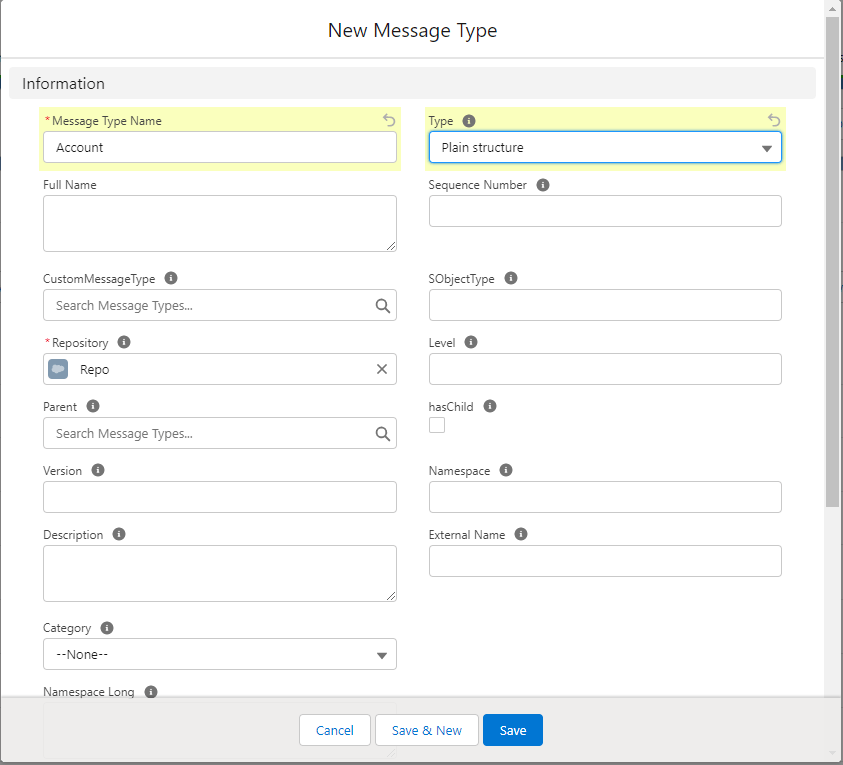

Fill all required fields then click the Save button

Navigate to the Related tab and select Message type field Entry

After that, we got the Message type

Step-2: Create Integration and test connection destination. Create new Integration by following the guide #article/what-is-an-integration-and-how-to-create-it

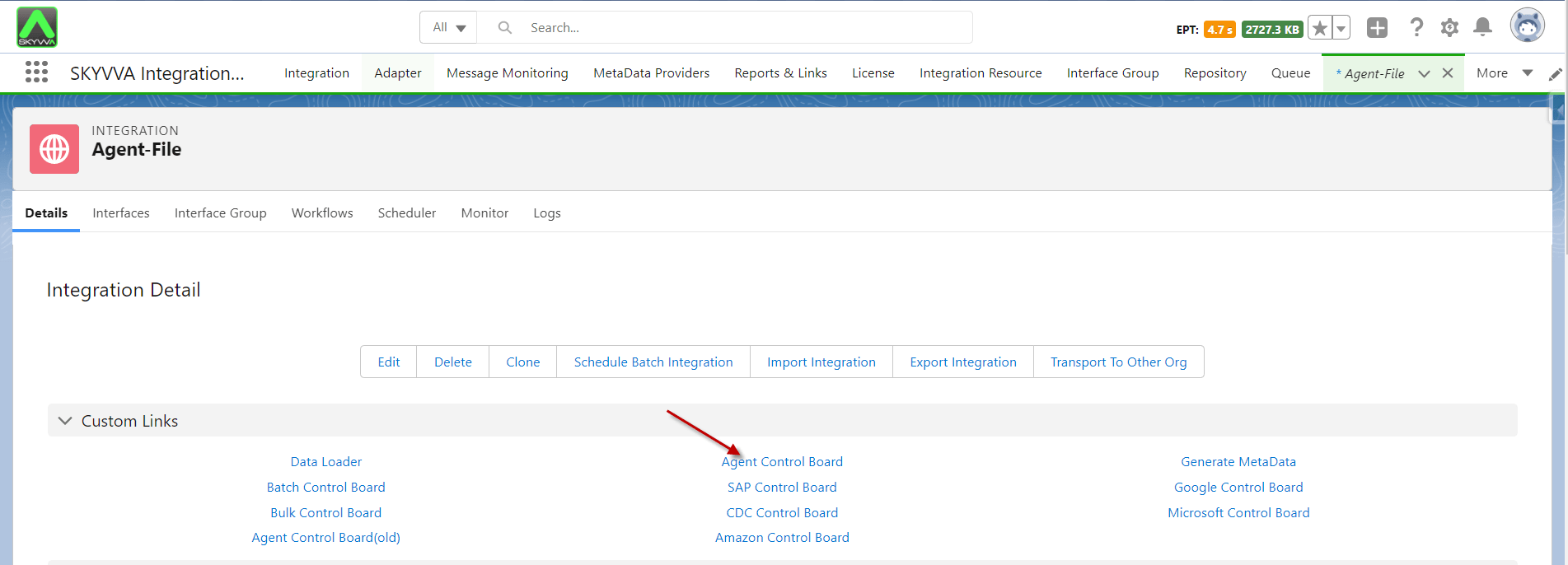

Navigate to AGENT Control Board as shown below:

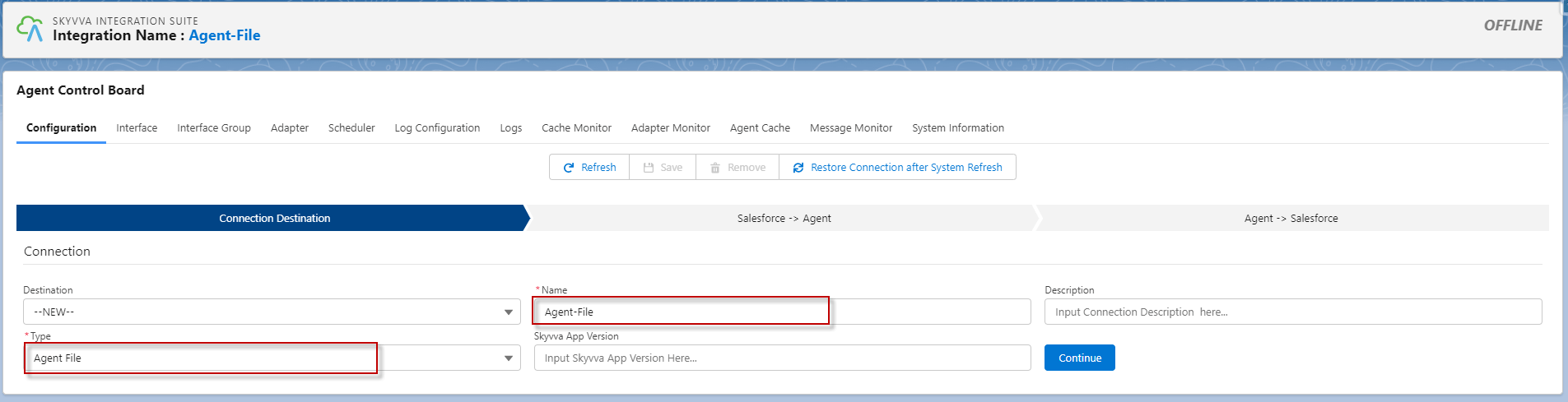

In the configuration tab enter the connection destination name, select the adapter type and click on the button "Continue"

Fill in all the required detail

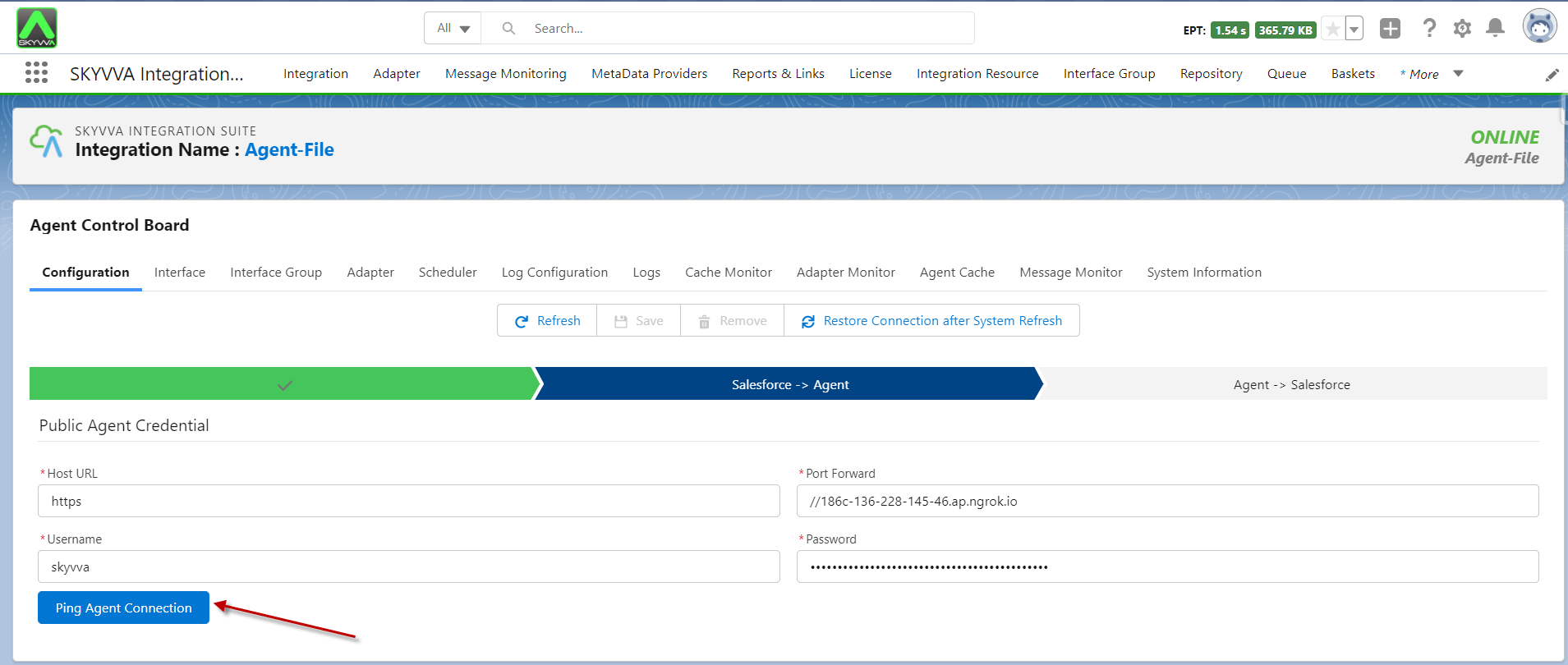

Click the button Ping Agent Connection

Fill in all the required details
Click the button Ping Salesforce Connection

Ping connection successfully

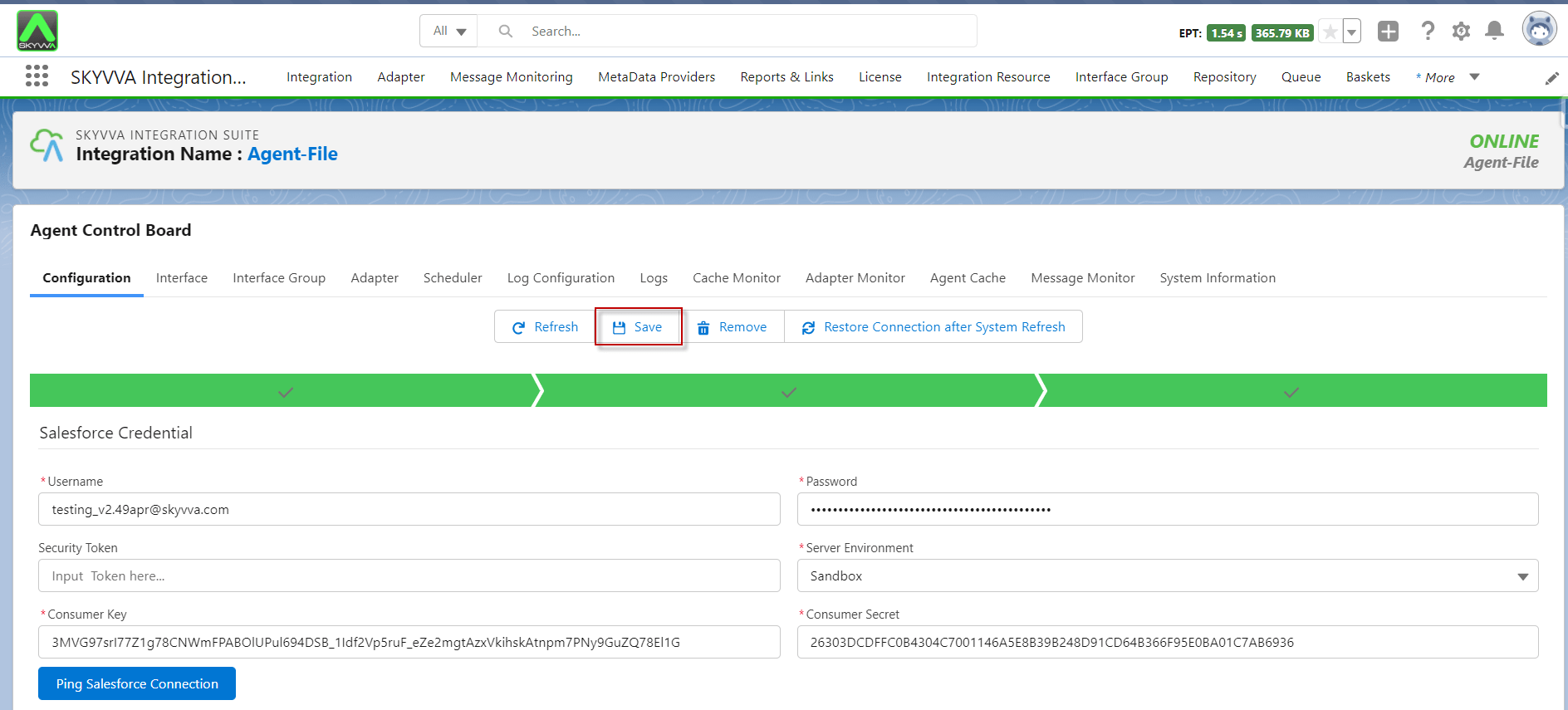

Save the connection destination

Case 1: Create Outbound Agent File Adapter for CSV format and Protocol: Local. Step-3: Create an outbound Agent File Adapter on the new Agent Control Board

Navigate to the Adapter tab after that click the button New

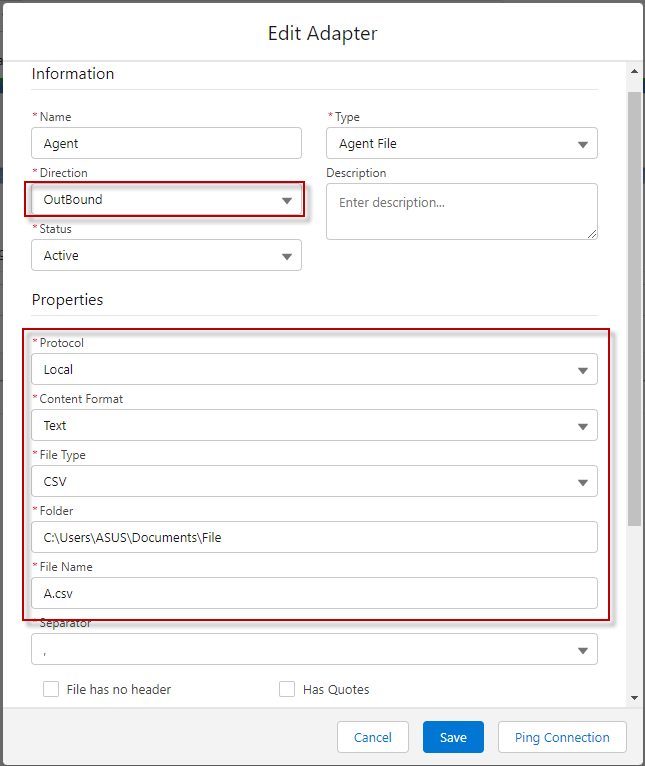

Fill all required fields

Name: any Name

-Type: Agent File -Direction: Outbound -Status: Active -Protocol: Local -File Type: CSV -Folder: location folder -File Name: Account.csv -Outbound File Threshold Size(MB): 5 -File Handling Mode: you can choose the mode -Connection Destination: your destination name

Step-4: Create Outbound Interface

For creating the Interface need to follow this guide #article/1-what-is-an-interface-and-how-to-create-it
Create an outbound Interface for Asynchronous mode, operation(upsert), Choose Adapter, Metadata Provider, Repository, and Message Type

[su_box title="Note" box_color="#2a8af0" title_color="#000000"] Agent File Adapter support only Asynchronous Mode.[/su_box]

Mapping:

Step-5: Check Cache monitoring status

Integration:

Interface:

Mapping

Adapter:

Interface Group:

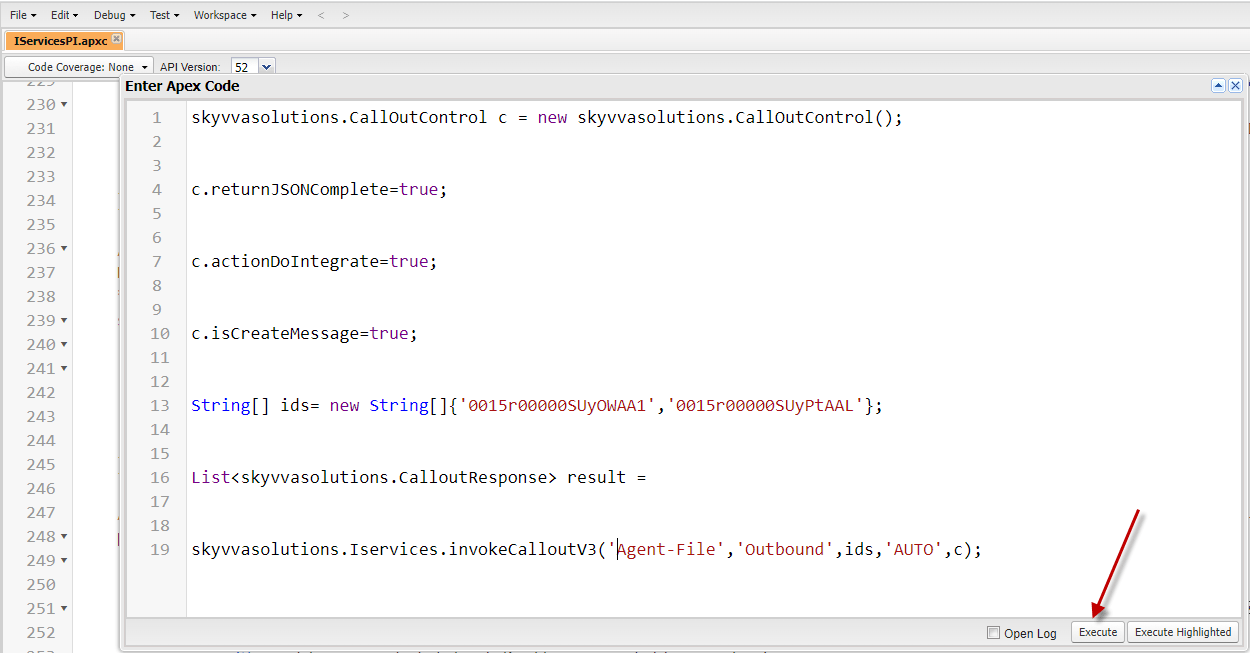

Navigate to Developer Console, Open Execute Anonymous Windo, and then past the callout code. As show below:

[aux_code language="javascript" theme="tomorrow" title="Callout" extra_classes=""] skyvvasolutions.CallOutControl c = new skyvvasolutions.CallOutControl(); c.returnJSONComplete=true; c.actionDoIntegrate=true; c.isCreateMessage=true; String[] ids= new String[]{'0011j00000qwCoXAAU','0011j00000qhAC1AAM'}; List result = skyvvasolutions.Iservices.invokeCalloutV3('Agent-File','Outbound',ids,'AUTO',c); [/aux_code]

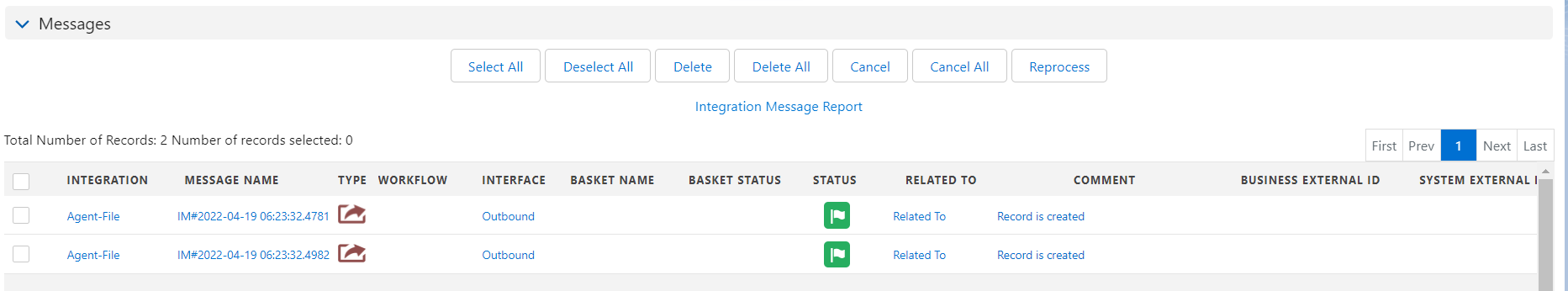

As a result of message monitoring, those record has been sent out

CSV File:

Case 2: Create Outbound Agent File Adapter for Excel format and Protocol: Local.

Create an Outbound Agent File adapter

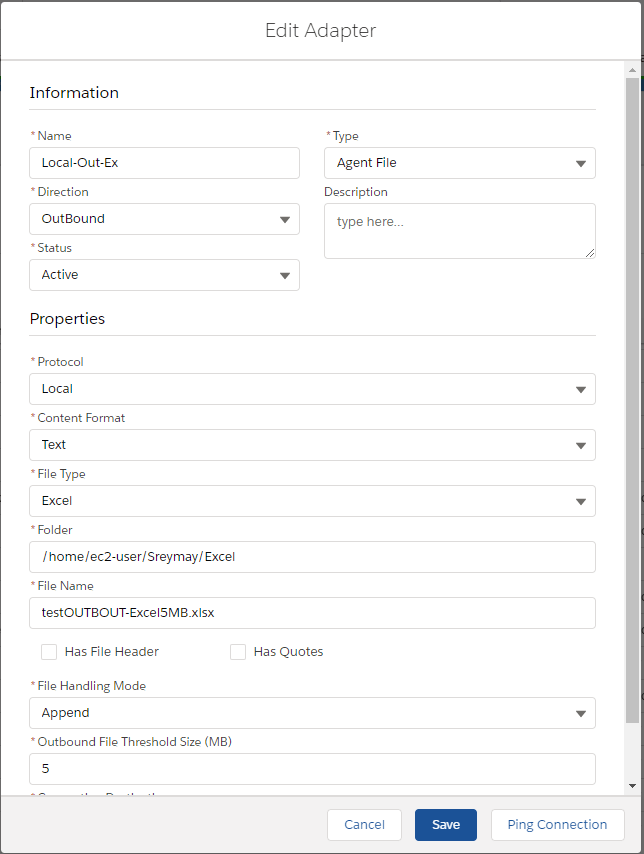

Go to Agent control board -> Click Adapter -> Click New button. (We configuration like the case 1 but choose File Type Excel )

Create an outbound Interface for Asynchronous mode, operation(upsert), Choose Adapter, Metadata Provider, Repository, and Message Type

Outbound adapter

Mapping:

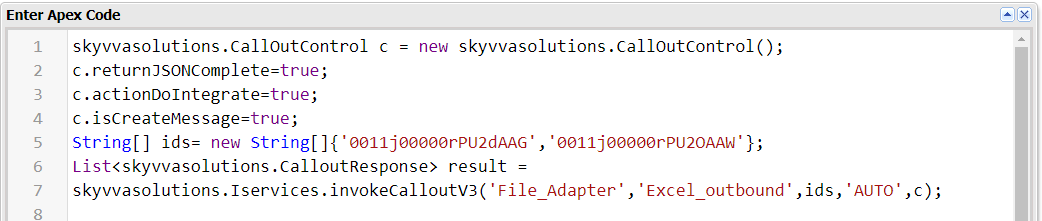

Callout:

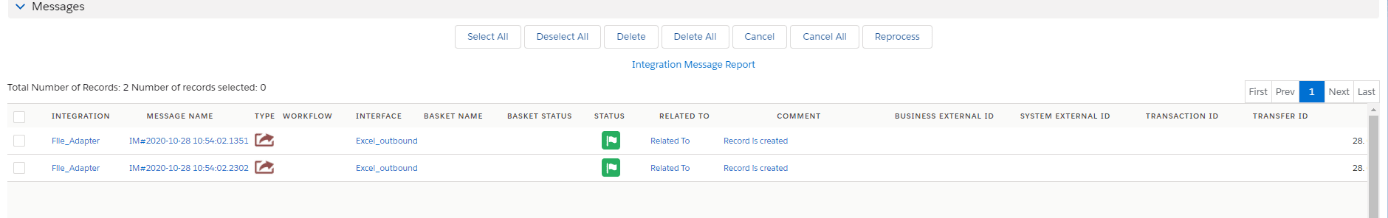

As a result of message monitoring, those record has been sent out

Excel file:

Case 3: Create Outbound Agent File Adapter for CSV format and Protocol: FTP.

Create an Outbound Agent File adapter

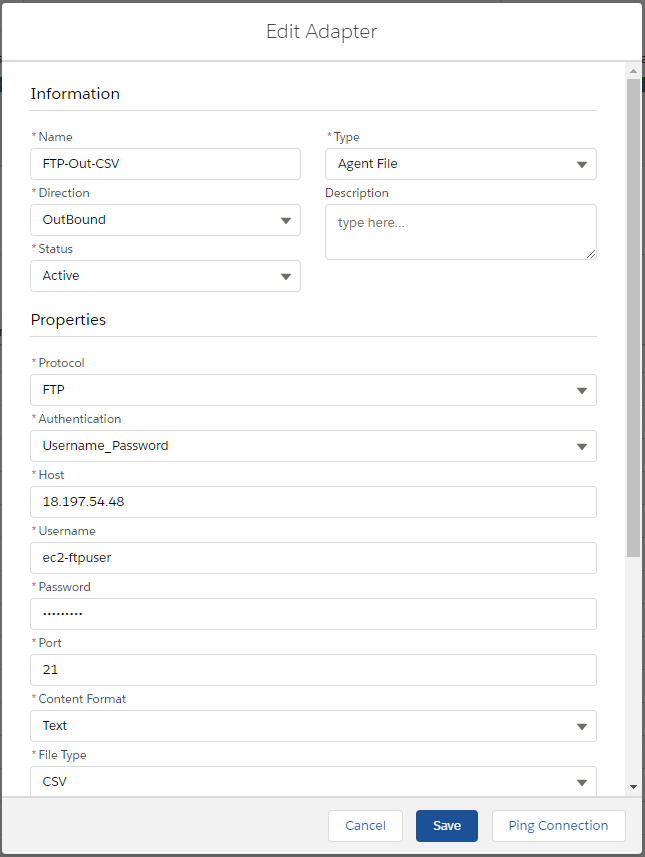

Fill all required field

-Name: any Name -Type: Agent File -Direction: Outbound -Status: Active -Protocol: FTP -Host: Public IP Address -Username: FTP Username -Password: FTP password -Port: FTP Server Port -File Type: CSV -Folder: location Folder -File Name: Account.csv -File Handling Mode: Append -Outbound File Threshold Size (MB): 5 -Connection Destination: your destination name

Create an Outbound Interface with Message Type.

Outbound Adapter

Mapping

Callout:

Message Monitor

CSV:

Case 4: Create Outbound Agent File Adapter for CSV format and Protocol: SFTP.

Create an Outbound Agent File adapter

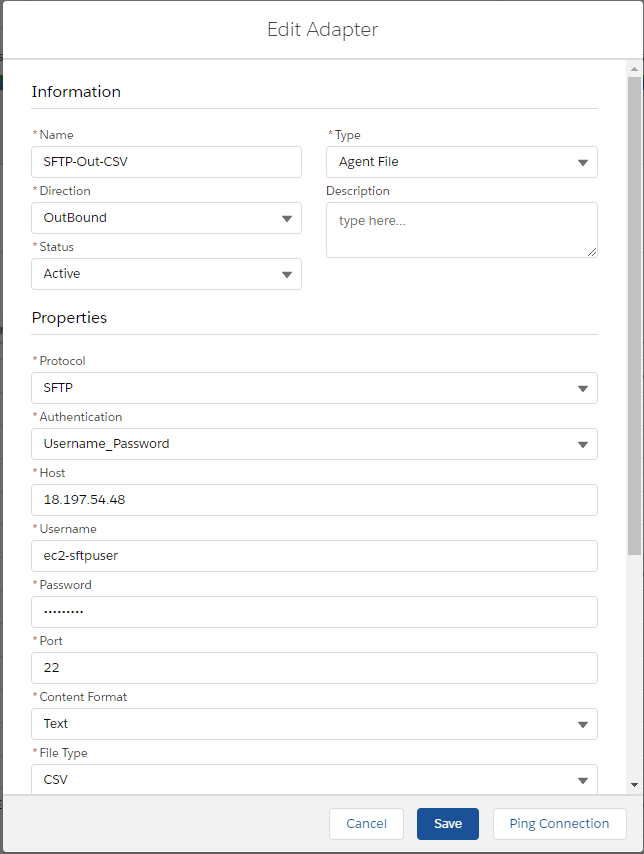

Fill all required field

Name: any Name -Type: Agent File -Direction: Outbound -Status: Active -Protocol: SFTP -Host: Public IP Address -Username: SFTP Username -Password: SFTP password -Port: SFTP Server Port -File Type: CSV -Folder: C: File_Adapter -File Name: Account.csv -File Handling Mode: Append -Outbound File Threshold Size (MB): 5 -Connection Destination: your destination name

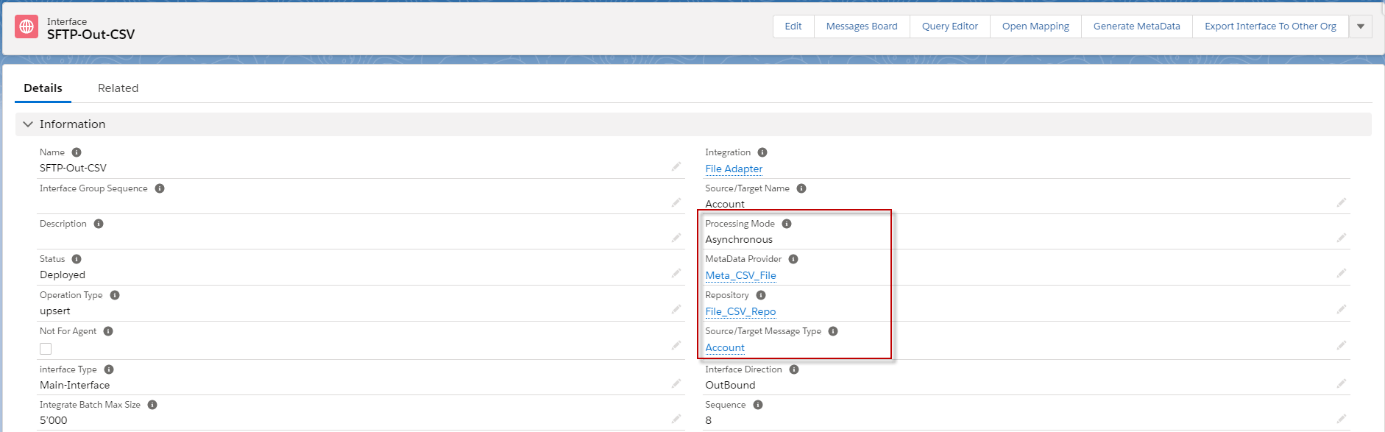

Create an Outbound Interface with Message Type.

Outbound adapter

Mapping

CallOut:

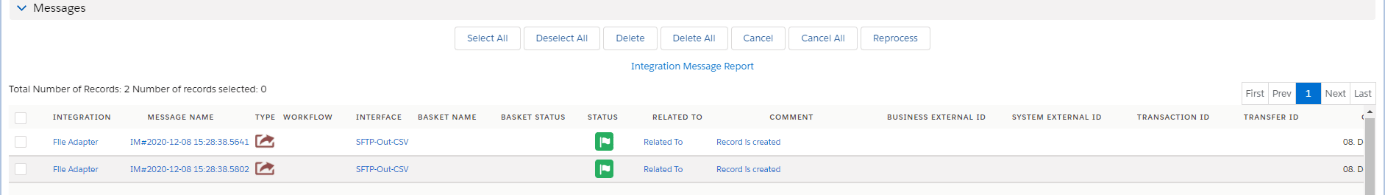

Message Monitor

CSV:

Summary: Agent File adapter for Producer uses for writing data from salesforce to file. Finally, we have learned about how to do outbound data from salesforce to file. In Agent adapter for a producer can work with CSV, and Excel data records.
