5. Configuration examples

Below are some example scenarios:

Based on the above figure, below is a short explanation:

“Automatic Reprocessing” checked: This integration will be covered for message reprocessing when the MessageReprocess scheduler run
When the Maintenance scheduler runs, it will perform as follows:

Log deletion: since the “Number of Days to Keep Logs & Log Files” is blank and “Log Levels to Delete” are “Error; Warning; Info” and “Delete Log Files” and “Delete Logs” are checked, then it will delete both logs with the specified levels and log files immediately – no matter when records lastly modified. Note: as per run, only 1000 logs and 1000 log files will be covered.
Message deletion: since the “Number of Days to Keep Messages” is blank and the “Delete Messages” checked and no other message statuses selected, then it will delete only “completed” messages immediately – no matter when records lastly modified.

Based on the above figure, below is a short explanation:

“Automatic Reprocessing” unchecked: This integration will not be covered for message reprocessing when the MessageReprocess scheduler run
When the Maintenance scheduler runs, it will perform as follows:

Log deletion: since the “Number of Days to Keep Logs & Log Files” is blank and “Log Levels to Delete” are “Error; Warning; Info” and “Delete Log Files” and “Delete Logs” are checked, then it will delete both logs with the specified levels and log files immediately – no matter when records lastly modified. Note: as per run, only 1000 logs and 1000 log files will be covered.
Message deletion: since the “Number of Days to Keep Messages” is blank and the “Delete Messages” checked and no other message statuses selected, then it will delete only “completed” messages immediately – no matter when records lastly modified.

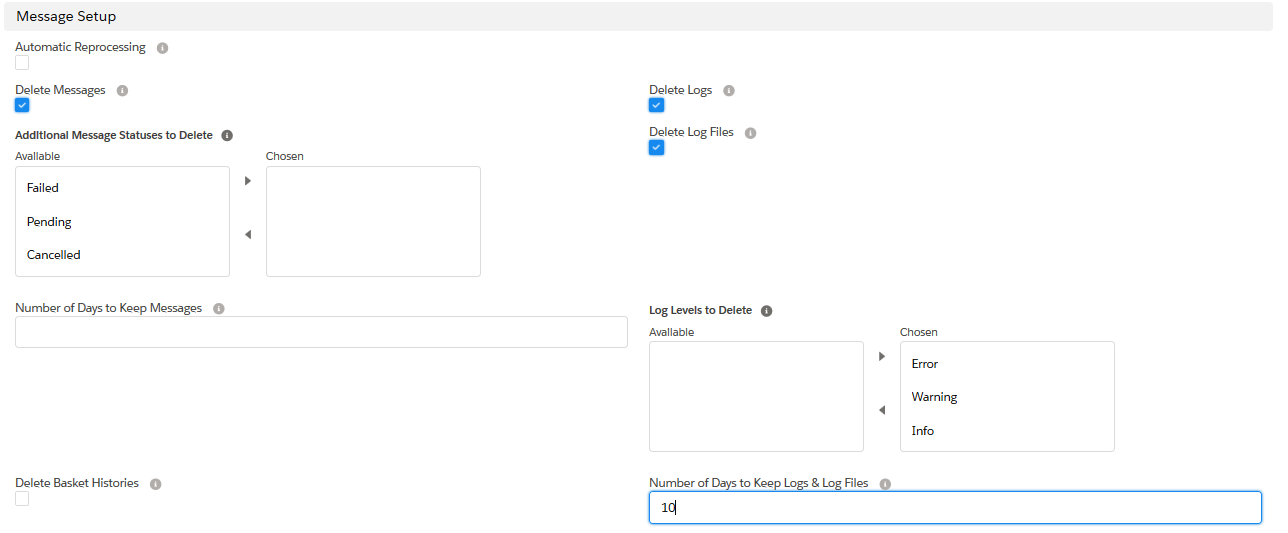

Based on the above figure, below is a short explanation:

“Automatic Reprocessing” unchecked: This integration will not be covered for message reprocessing when the MessageReprocess scheduler run
When the Maintenance scheduler runs, it will perform as follows:

Log deletion: since the “Number of Days to Keep Logs & Log Files” is 10 days and “Log Levels to Delete” are “Error; Warning; Info” and “Delete Log Files” and “Delete Logs” are checked, then it will keep those logs with the specified levels and log files for 10 days - those records last modified within 10 days and the others will be covered for deletion. Note: as per run, only 1000 logs and 1000 log files will be covered.
Message deletion: since the “Number of Days to Keep Messages” is 7 days and the “Delete Messages” checked and no other message statuses selected, then it will keep messages for 7 days - those records last modified within 7 days and the others will be covered for deletion.
