How to Configure the HTTP Protocol?

1. Overview

The SKYVVA SAP BTP Integration Suite Adapter supports the HTTP protocol for communication between Salesforce and SAP BTP Integration Suite.

When HTTP is selected as the protocol, the adapter supports:

• V3 Payload Format
• SAP-PO Payload Format

• Interface API V2
• Interface API V3

In addition, HTTP supports both JSON and XML for the request and response message formats.

2. HTTP Protocol

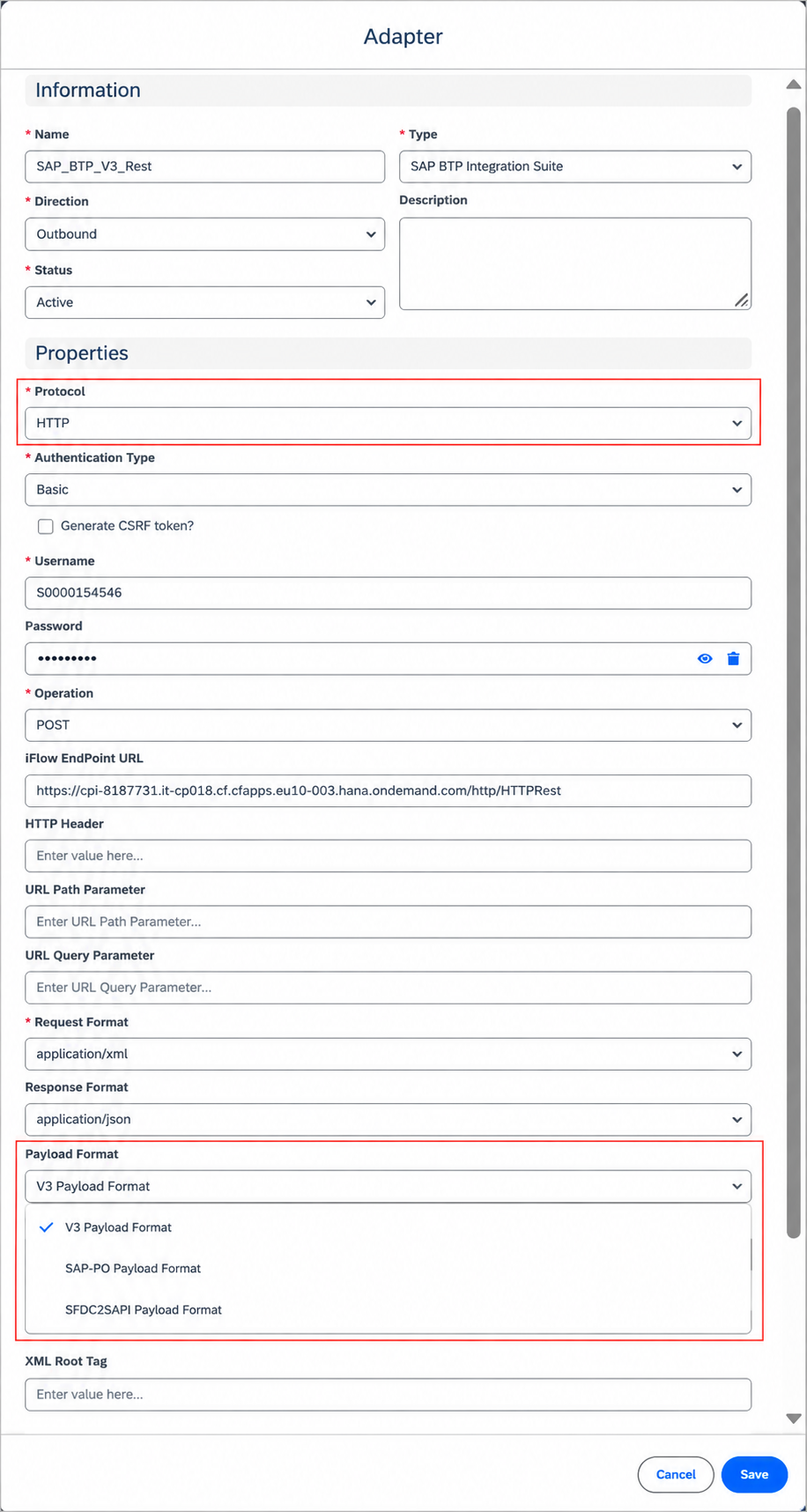

When HTTP is selected in the SKYVVA SAP BTP Integration Suite Adapter, the following payload formats are available:

1. V3 Payload Format
2. SAP-PO Payload Format

2.1 HTTP Payload Format Support

Testing Result: The HTTP protocol supports V3 Payload Format and SAP-PO Payload Format with both Interface API V2 and Interface API V3. SFDC2SAPI Payload Format is not supported with HTTP.

3. HTTP Request Format

The HTTP protocol supports the following request message formats:

• JSON
• XML

3.1 JSON Request

When the request format is configured as JSON, the adapter sends the HTTP request body in JSON format.

Example:

{
  "Account": {
    "BillingCity": "Phnom Penh",
    "BillingCountry": "Cambodia",
    "Name": "Coca"
  }
}

3.2 XML Request

When the request format is configured as XML, the adapter sends the HTTP request body in XML format.

Example:

<Account>
    <BillingCity>Phnom Penh</BillingCity>
    <BillingCountry>Cambodia</BillingCountry>
    <Name>Coca</Name>
</Account>

3.3 Request Format Support

4. HTTP Response Format

The HTTP protocol also supports the following response message formats:

• JSON
• XML

4.1 JSON Response

Example:

{
  "status": "success",
  "message": "Message processed successfully"
}

4.2 XML Response

Example:

<Response>
    <Status>success</Status>
    <Message>Message processed successfully</Message>
</Response>

4.3 Response Format Support

5. HTTP Protocol Compatibility

The complete HTTP protocol testing result is:

6. SOAP and HTTP Protocol Comparison

Based on the SOAP testing from the previous section and the HTTP testing, the protocol support can be summarized as follows:

Important: The key difference in payload-format support is that SOAP supports V3 Payload Format, SAP-PO Payload Format, and SFDC2SAPI Payload Format, while HTTP supports only V3 Payload Format and SAP-PO Payload Format.

7. HTTP Testing Result Summary

The testing confirms that the HTTP protocol of the SKYVVA SAP BTP Integration Suite Adapter supports:

• Interface API V2
• Interface API V3
• V3 Payload Format
• SAP-PO Payload Format
• JSON request format
• XML request format
• JSON response format
• XML response format

The HTTP configuration can be represented as follows:

HTTP Protocol
│
├── Interface API V2
│   ├── V3 Payload Format ────────> Supported
│   └── SAP-PO Payload Format ────> Supported
│
├── Interface API V3
│   ├── V3 Payload Format ────────> Supported
│   └── SAP-PO Payload Format ────> Supported
│
├── Request Format
│   ├── JSON ─────────────────────> Supported
│   └── XML ──────────────────────> Supported
│
├── Response Format
│   ├── JSON ─────────────────────> Supported
│   └── XML ──────────────────────> Supported
│
└── SFDC2SAPI Payload Format ─────> Not Supported

Key Testing Result: With the HTTP protocol, both V3 Payload Format and SAP-PO Payload Format support Interface API V2 and Interface API V3. HTTP requests and responses can use either JSON or XML. The SFDC2SAPI Payload Format is not supported with HTTP.
