How to Use the REST Adapter to Transfer Data from One Salesforce Org to Another Salesforce Org?

Introduction

Transferring data between Salesforce org using the SKYVVA integration application and the REST adapter involves several steps to ensure smooth and efficient data migration. Here's a step-by-step guide on how to accomplish this:

Install and configure the SKYVVA integration application in both the source and target Salesforce org.

Identify the specific data objects and fields that need to be transferred from the source org to the target org.

In the SKYVVA integration application, create integration flows to define the data transfer process. These flows include source and target connections, data mappings, and any necessary transformations or validations.

Before performing the actual data transfer, conduct thorough testing of the integration flows. This helps identify and resolve any issues, ensuring that the data is correctly transferred without any errors or data loss.

Once testing is successful, execute the integration flows to transfer the data from the source Salesforce org to the target org. Monitor the transfer process to ensure it completes successfully and verify that the data in the target org matches the source data.

Continuously monitor the integration flows for any issues. Perform regular maintenance and updates to the integration configurations as needed to accommodate any changes in data structures as per business requirements.

By following these steps, you can effectively use the REST adapter within the SKYVVA integration application to transfer data between Salesforce org, ensuring a smooth and accurate data migration process.

Pre-required

Create a connected app in source org.

Rest Adapter Template

{ "Rest Service":{ "Request":{ "URL":{ "PATH Parameter":{ //flat Structure }, "QUERY Parameter":{ //flat Structure } }, " Header ":{ //flat Structure }, "Body":{ //flat Structure //Custom Hierarchical Business Message type } }, "Response":{ "root":{ //web service response } } } }

Name of Message Type Type of Message Type

Rest Service

ex:  REST_Upsert_Account_ByExternalId_Service REST_Service

Request REST_Request

URL REST_Request_URL

PATH Parameter REST_Request_URL_Path_Parameter

QUERY Parameter REST_Request_URL_Query_Parameter

Header REST_Request_Header

Body REST_Request_Body

Response REST_Response

Root(it should be anything)

Ex: Root, response_body, res_body Plain structure

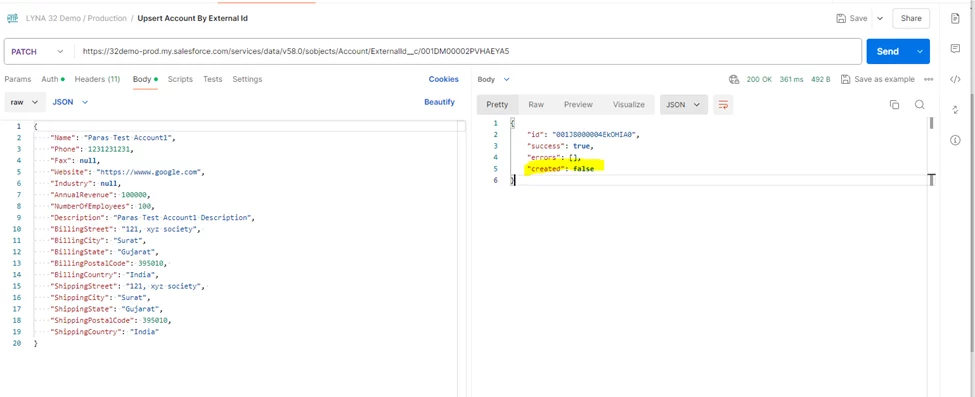

Operation Type: Upsert (Insert or Update)

The "Upsert" operation in the SKYVVA integration application allows for efficient data management by combining the functionalities of both insert and update operations. When executing an upsert, the application checks if a record already exists based on a specified key. If the record exists, it updates the existing data; if not, it inserts a new record. This dual capability streamlines processes reduces repetition, and ensures data consistency. By simplifying the integration workflow, upsert enhances productivity and ensures that the data remains accurate and up-to-date within the system.

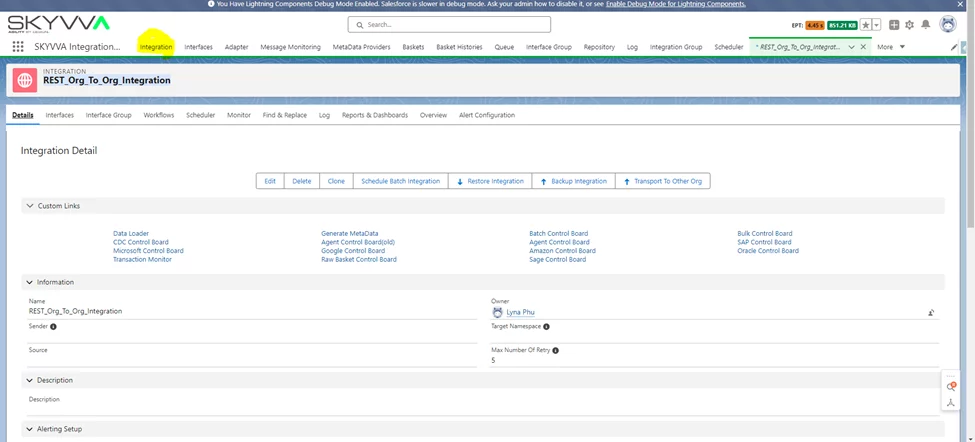

Create Metadata & Repository and REST Template for your service:

Message Type: REST_Upsert_Account_ByExternalId_Service

Go to the Interfaces tab of your integration and click on the ‘New Interface’ button.

Here, you need to provide the following details:

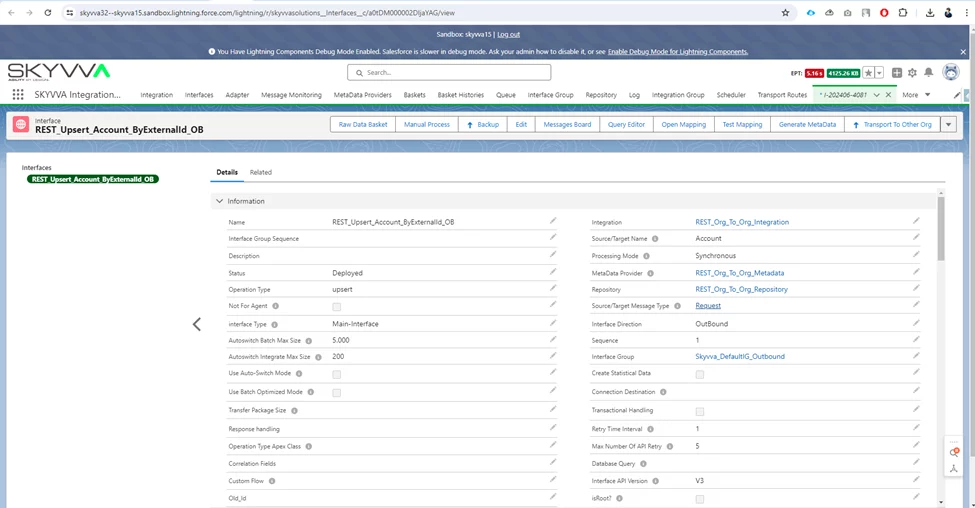

Outbound Interface: REST_Upsert_Account_ByExternalId_OB

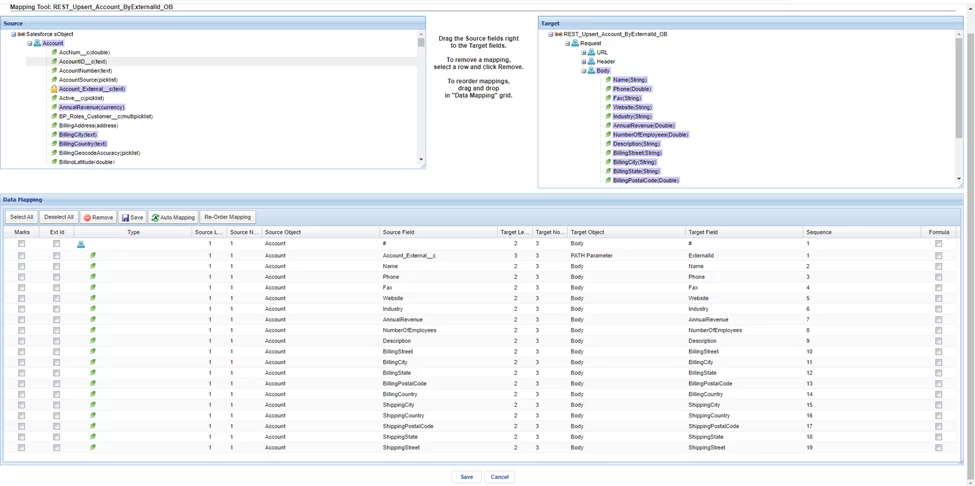

Mapping:

Go to the Adapter Tab:

Outbound Adapter: REST_Upsert_Account_ByExternalId_OB

Now that the Request Part is completed, we can send requests from the source to the target system. Now we need to create an inbound interface to process our web service response.

Go to the Interfaces tab of your integration and click on the ‘New Interface’ button.

Here, the user needs to provide the following details:

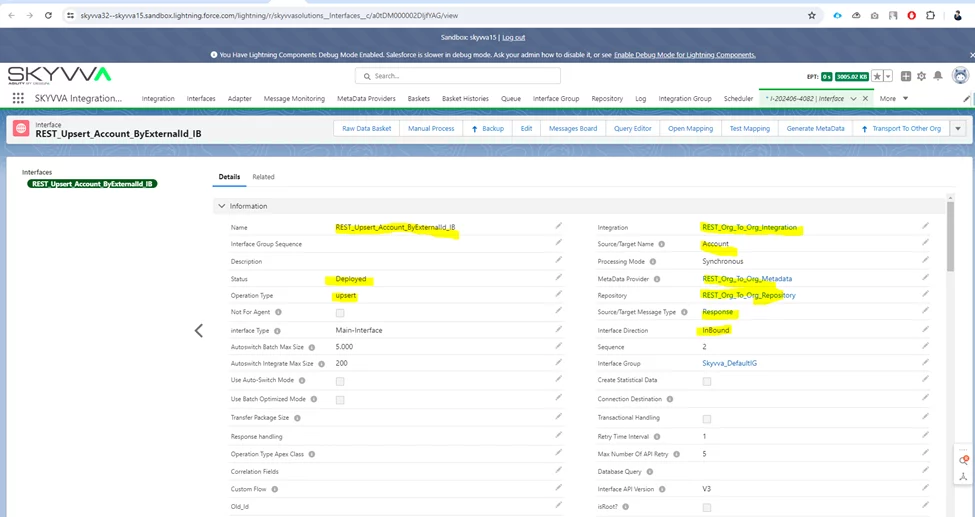

Inbound Interface: REST_Upsert_Account_ByExternalId_IB

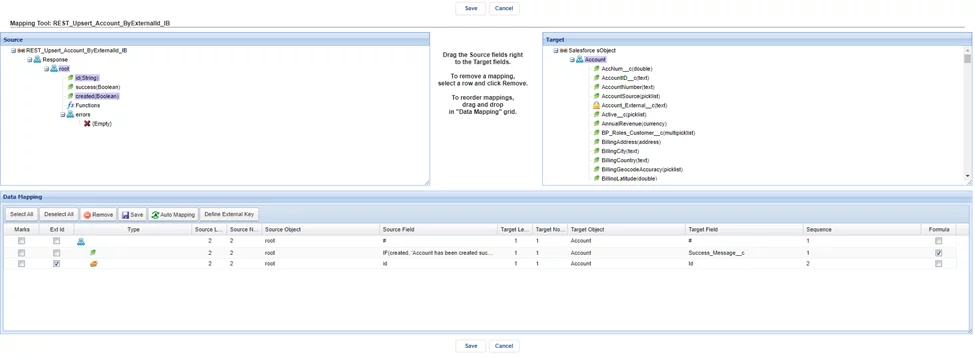

Go to the Mapping:

Link Inbound Interface with Outbound Interface:

skyvvasolutions.CallOutControl c = new skyvvasolutions.CallOutControl(); c.returnJSONComplete=true; c.actionDoIntegrate=true; c.isCreateMessage=true; String[] ids= new String[]{'001DM00002PVHAEYA5'}; List<skyvvasolutions.CalloutResponse> result = skyvvasolutions.Iservices.invokeCalloutV3('REST_Org_To_Org_Integration','REST_Upsert_Account_ByExternalId_OB',ids,'SYNC',c);

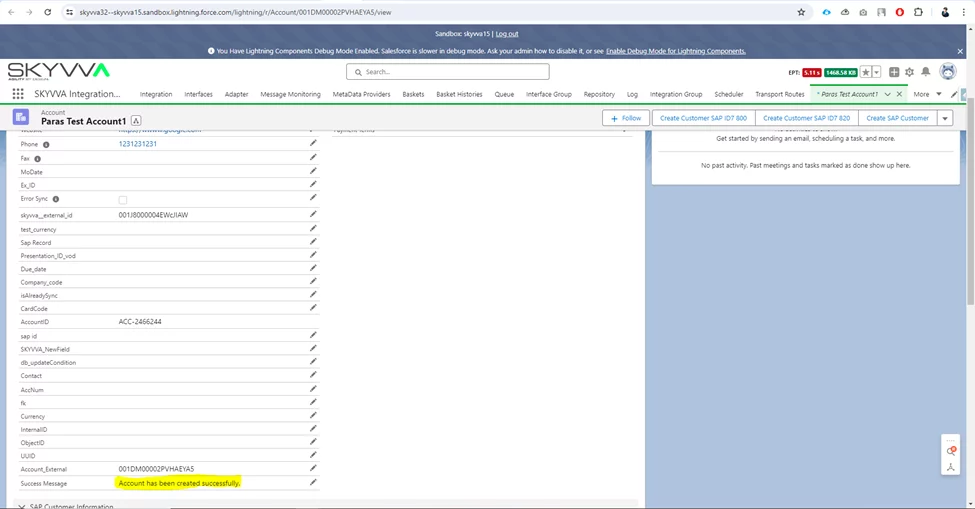

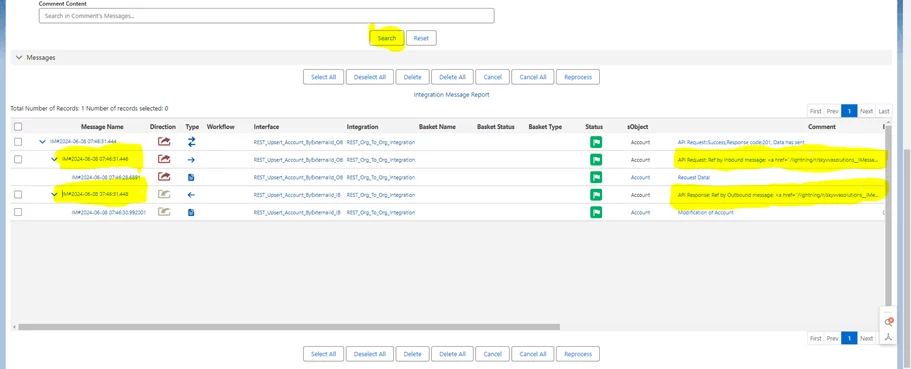

Go to Message Monitoring: (It will display your request and response status)

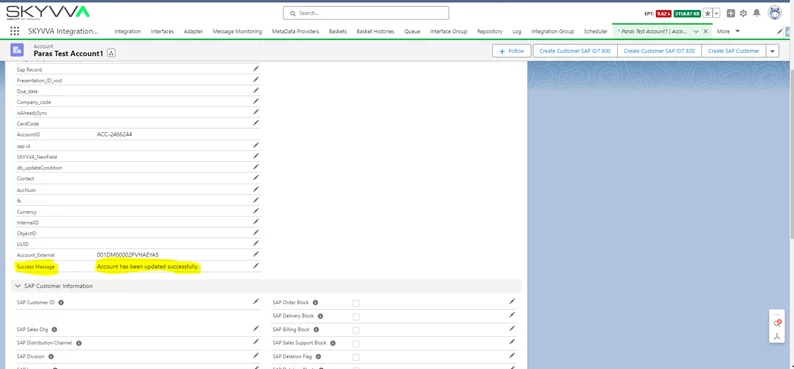

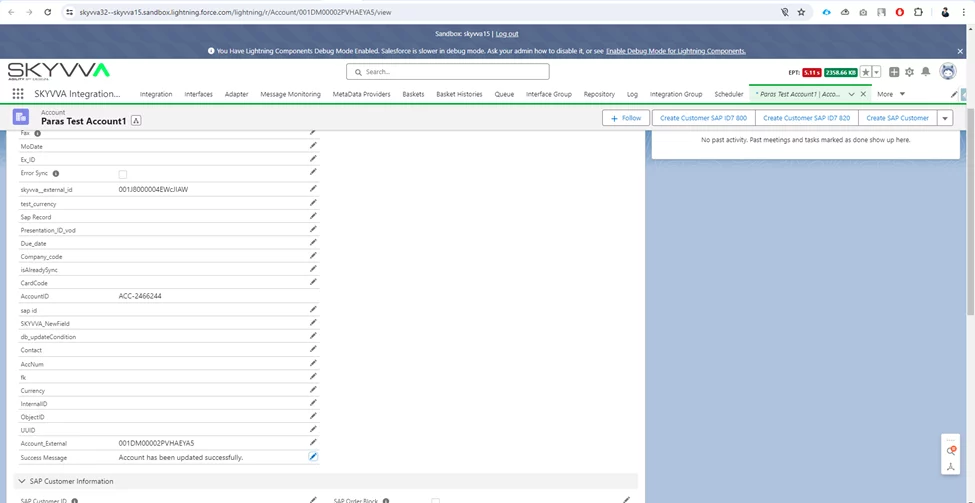

[su_box title="Result:" box_color="#2a8af0" title_color="#000000"]

[/su_box]

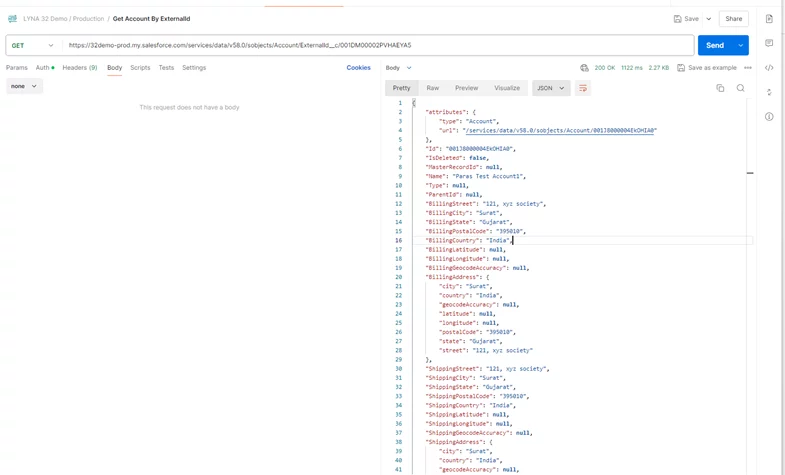

Operation Type: GET

The "GET" operation type in the SKYVVA integration application allows users to retrieve data from Salesforce. This operation is essential for accessing and extracting information stored within the Salesforce environment. Utilizing the feature-rich API, users can perform GET requests to fetch hierarchical data efficiently. This functionality supports seamless data retrieval without the need to specify message types explicitly, enhancing flexibility and ease of use. Consequently, the GET operation simplifies integration processes, enabling users to access necessary data swiftly and integrate it into their workflows with minimal effort.

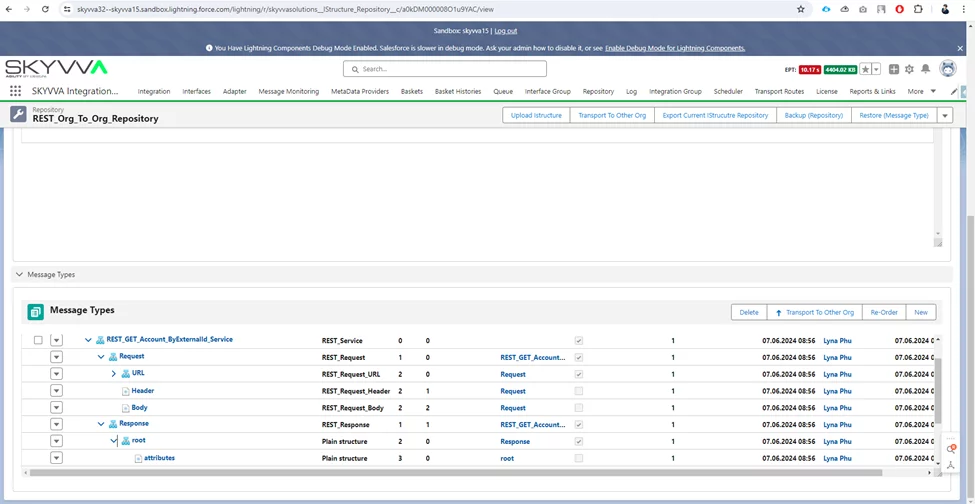

Create Metadata & Repository and REST Template for your service:

Here, the user needs to provide the following details:

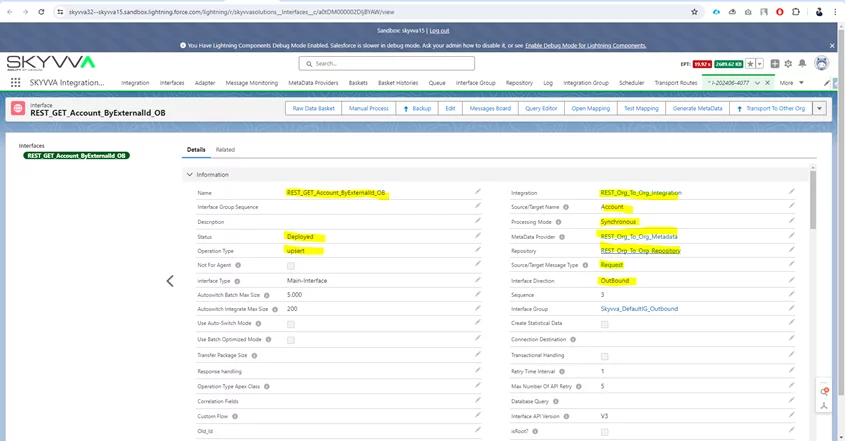

Outbound Interface: REST_GET_Account_ByExternalId_OB

Go to Mapping:

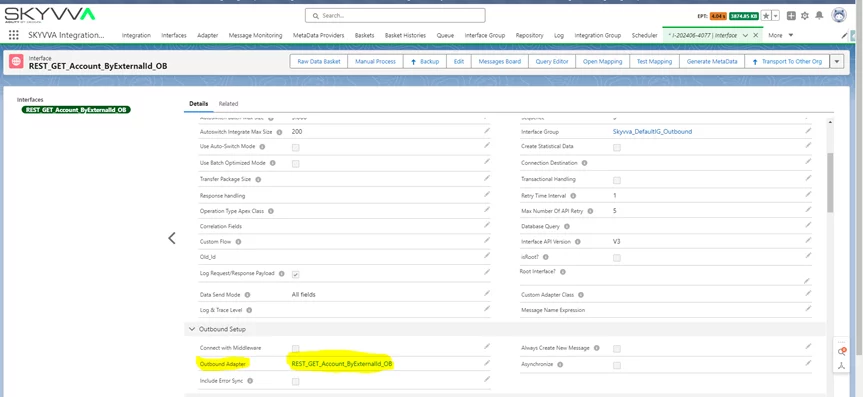

Go to the Adapter Tab:

Now that the Request Part is completed, we can send requests from the source to a target system. Now we need to create an inbound interface to process our web service response.

Here, you need to provide the following details:

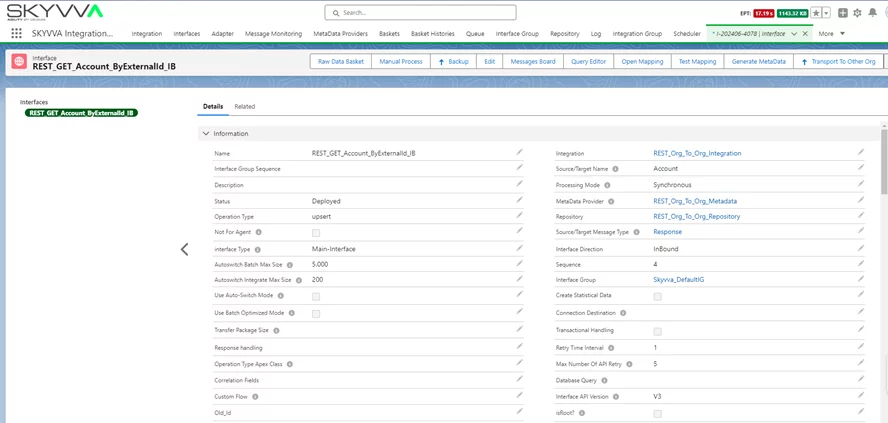

Inbound Interface: REST_GET_Account_ByExternalId_IB

Go to Mapping:

Link Inbound Interface with Outbound Interface:

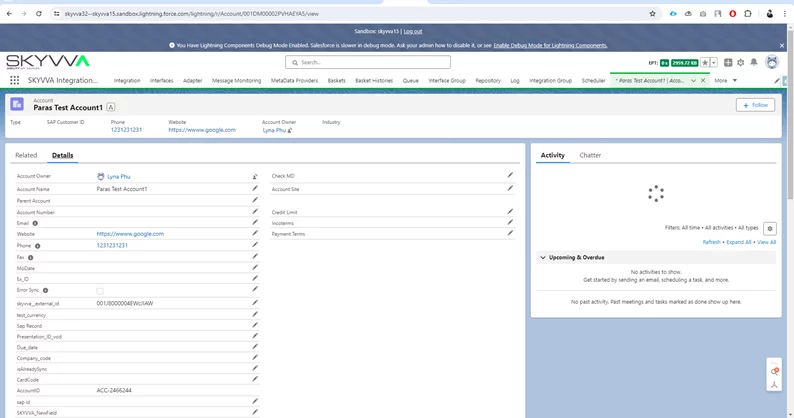

Callout: (This will execute your outbound interface and it will generate dynamic data for your request using account '001DM00002PVHAEYA5')

skyvvasolutions.CallOutControl c = new skyvvasolutions.CallOutControl(); c.returnJSONComplete=true; c.actionDoIntegrate=true; c.isCreateMessage=true; String[] ids= new String[]{'001DM00002PVHAEYA5'}; List<skyvvasolutions.CalloutResponse> result = skyvvasolutions.Iservices.invokeCalloutV3('REST_Org_To_Org_Integration','REST_GET_Account_ByExternalId_OB',ids,'SYNC',c);

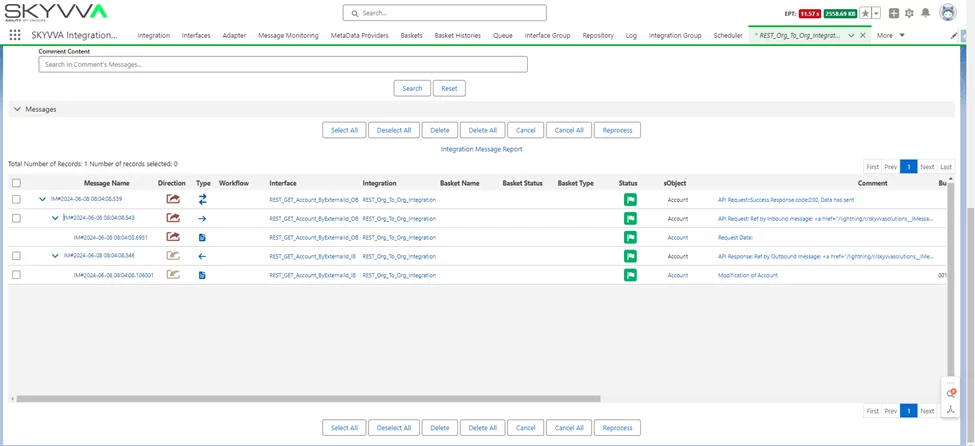

Go to Message Monitoring: (It will display your request and response status)

Operation Type: Delete

The "Delete" operation type in the SKYVVA integration application allows users to remove records from Salesforce efficiently. This operation is essential for maintaining data accuracy and cleanliness within the system. By specifying the records to be deleted, users can streamline data management processes and prevent the accumulation of outdated or incorrect information. The SKYVVA integration application ensures that the deletion process is executed securely and effectively, minimizing the risk of data loss or errors. This feature supports various integration business scenarios, enhancing overall system performance and reliability by keeping the Salesforce database up-to-date and relevant.

Create Metadata & Repository and REST Template for your service:

Message Type: REST_Delete_Account_ByExternalId_Service

Here, you need to provide the following details:

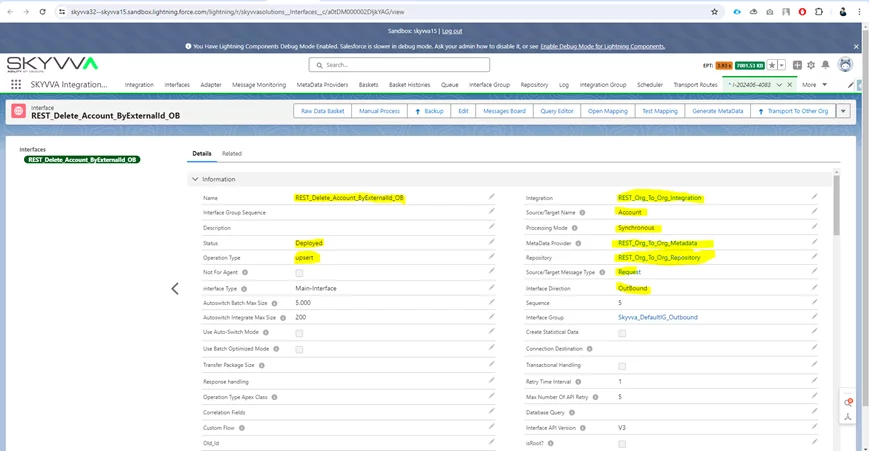

Interface Name: REST_Delete_Account_ByExternalId_OB

Outbound Interface: REST_Delete_Account_ByExternalId_OB

Go to Mapping:

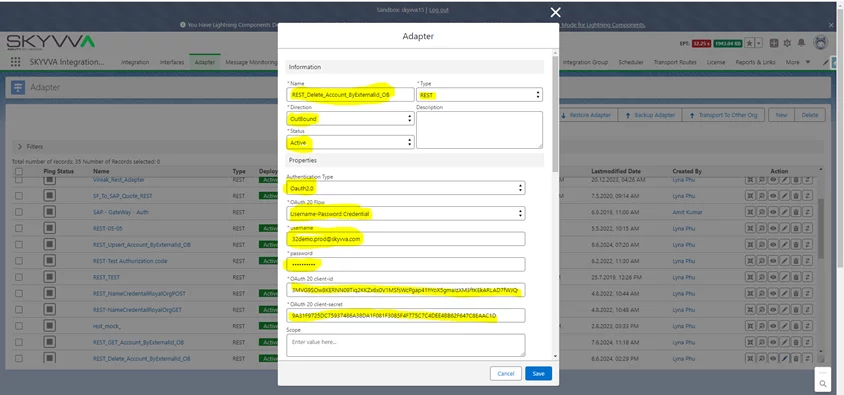

Go to the Adapter Tab:

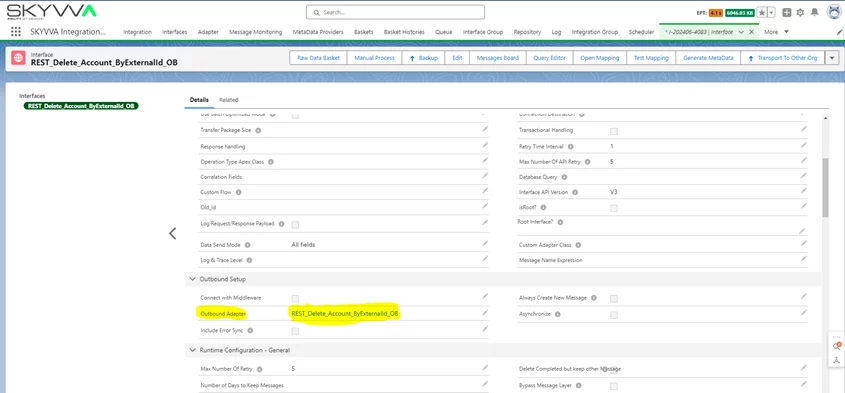

Outbound Adapter: REST_Delete_Account_ByExternalId_OB

Now that the Request Part is completed, we can send requests from the source to the target system.

skyvvasolutions.CallOutControl c = new skyvvasolutions.CallOutControl(); c.returnJSONComplete=true; c.actionDoIntegrate=true; c.isCreateMessage=true; String[] ids= new String[]{'001DM00002PVHAEYA5'}; List<skyvvasolutions.CalloutResponse> result = skyvvasolutions.Iservices.invokeCalloutV3('REST_Org_To_Org_Integration','REST_Delete_Account_ByExternalId_OB',ids,'SYNC',c);

Go to Message Monitoring: (It will display your request and response status)

Summary

Now user understands how to transfer data between Salesforce org using the SKYVVA Integration application, and utilizes the REST adapter with the operation type: (Insert or Update), Get, Delete. Configure the source and target connections, select the appropriate operation, and map the data fields to facilitate seamless data migration and synchronization.
