4. Set type for imapping record for REST request mapping

When making rest API call we want to use our mapping tool to map the request structure of the API. Test Case: Create Rest Request Type with Outbound Interface -Create One MetaData Providers->Create three IStructure Repository as the screenshot below:

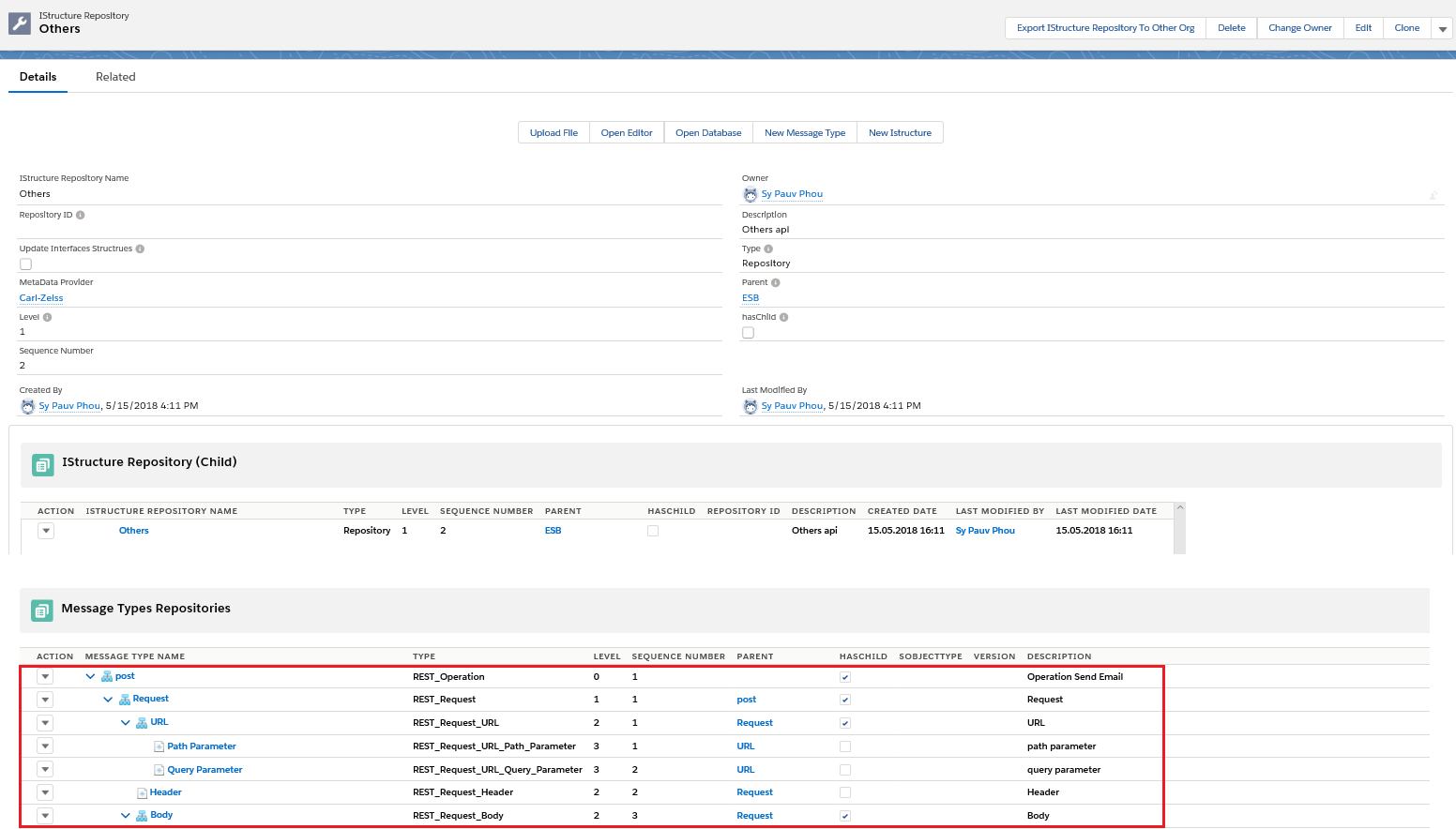

Click Others in IStructure Repository Name->Create some Message Type below:

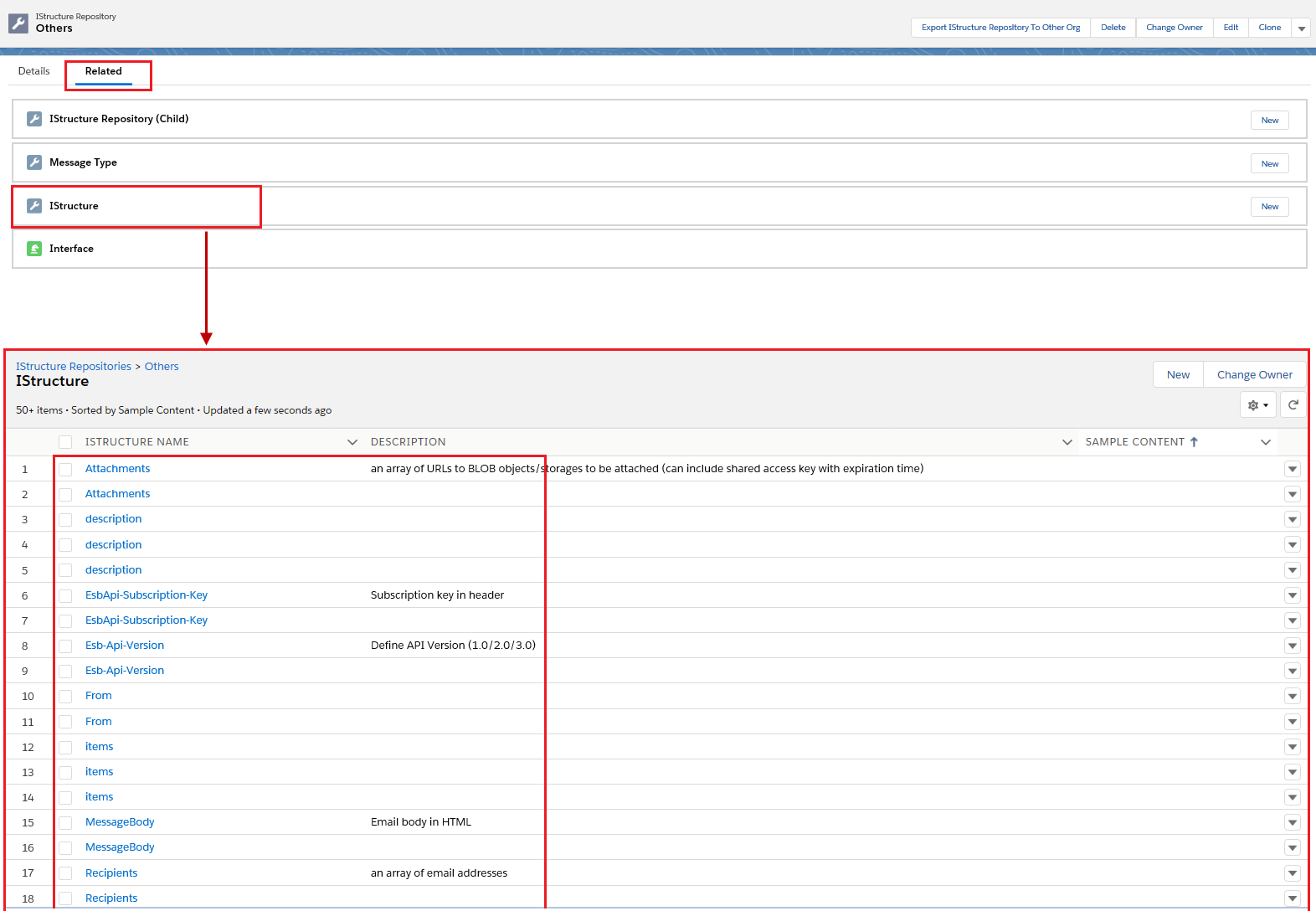

Create some IStructure like the screenshot in Other Istructure Repository

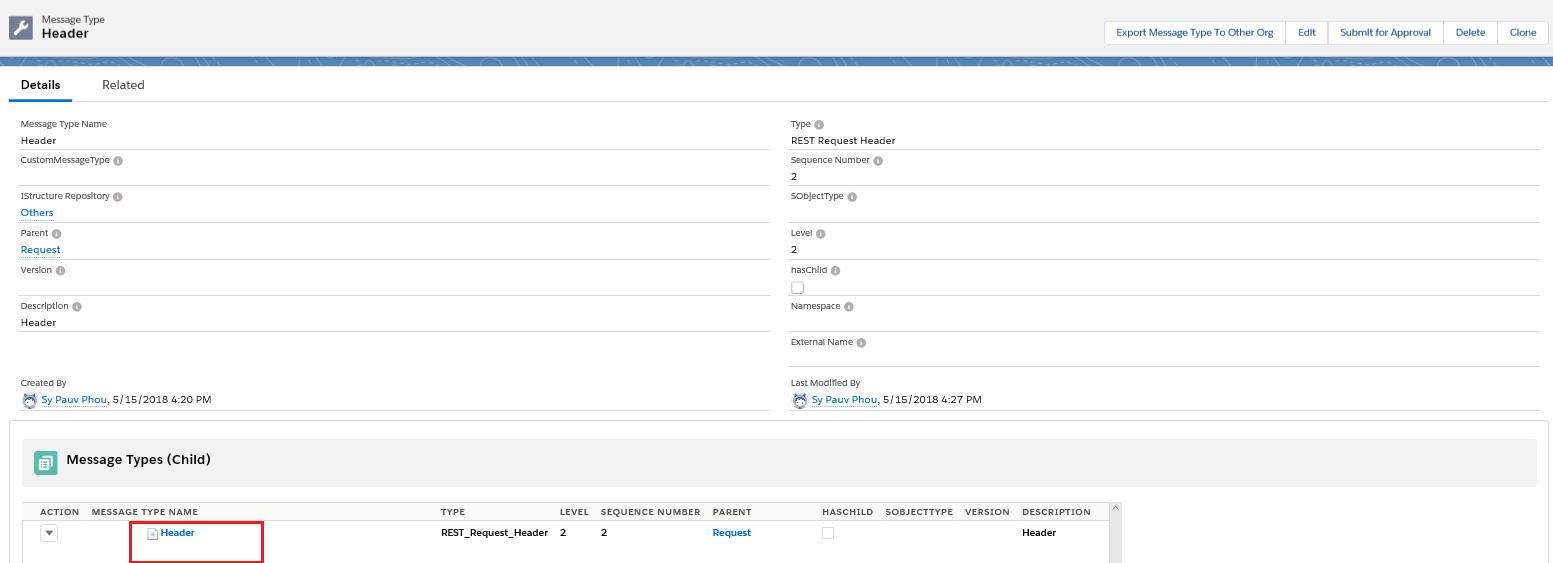

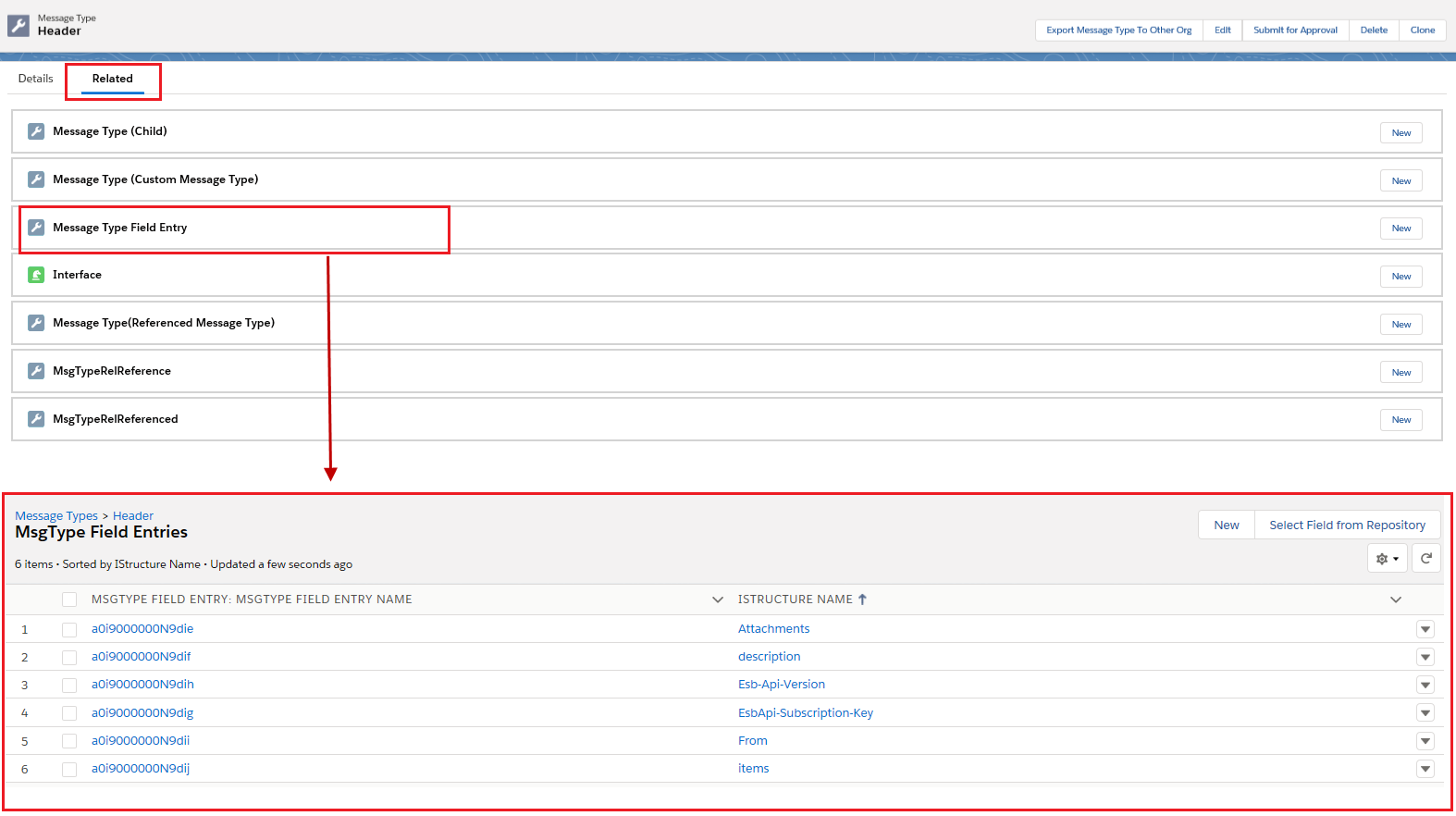

Add some MsgType Filed Entries in Header Message Type:

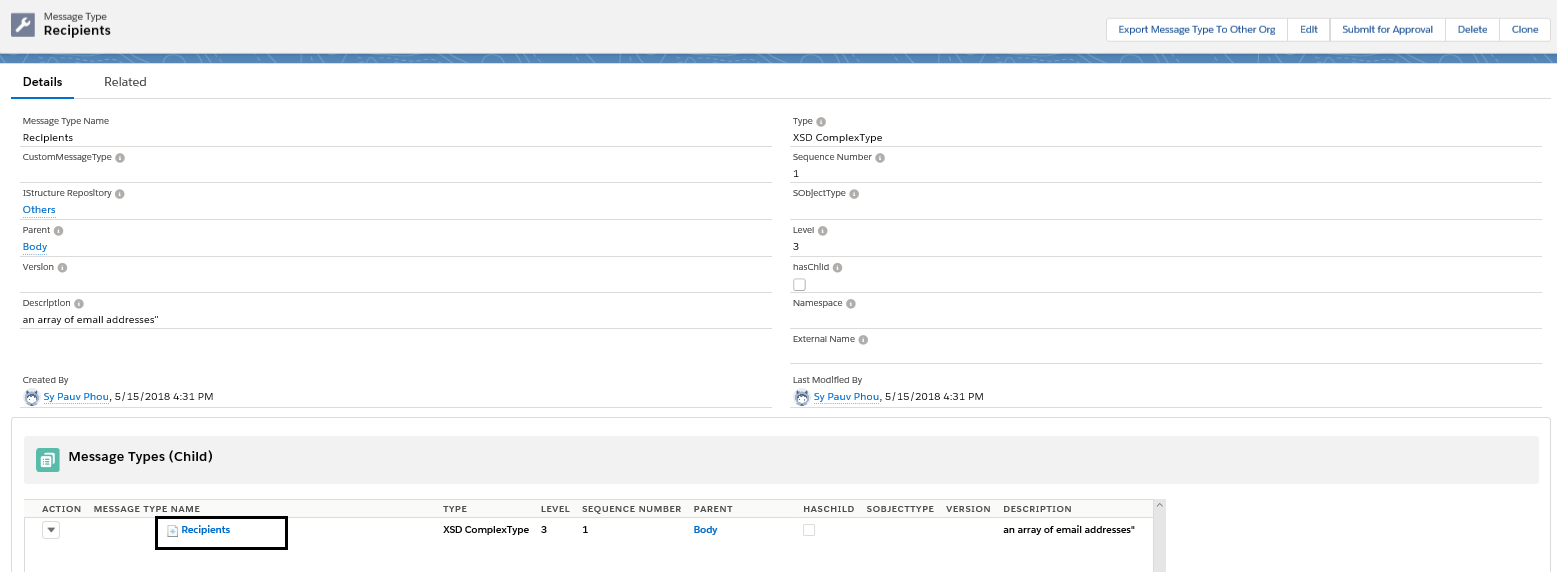

Add some MsgType Filed Entries in Recipients Message Type:

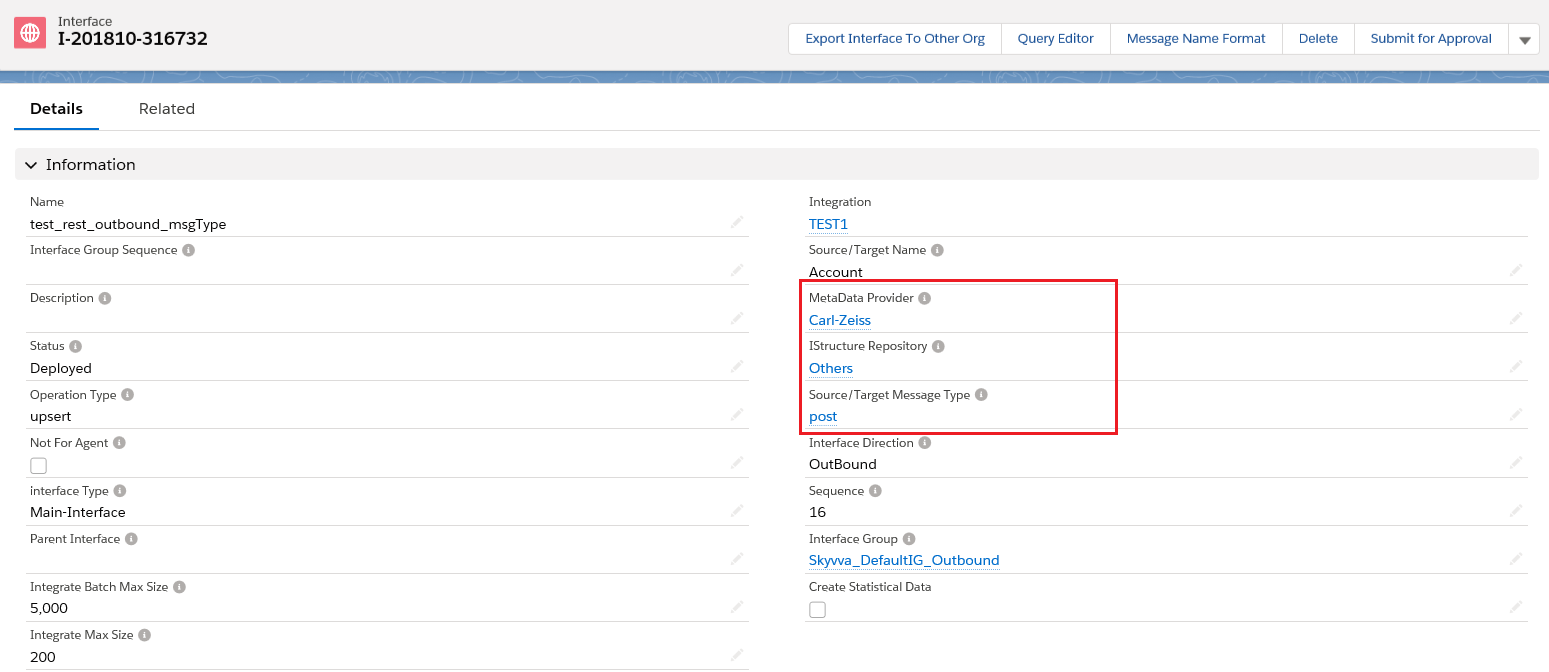

Create an Outbound interface->add message type in this interface as the screenshot below:

Navigator to Mapping section->Map Target and source filed->Save

Enter to IMapping section in Interface->click IMapping Name

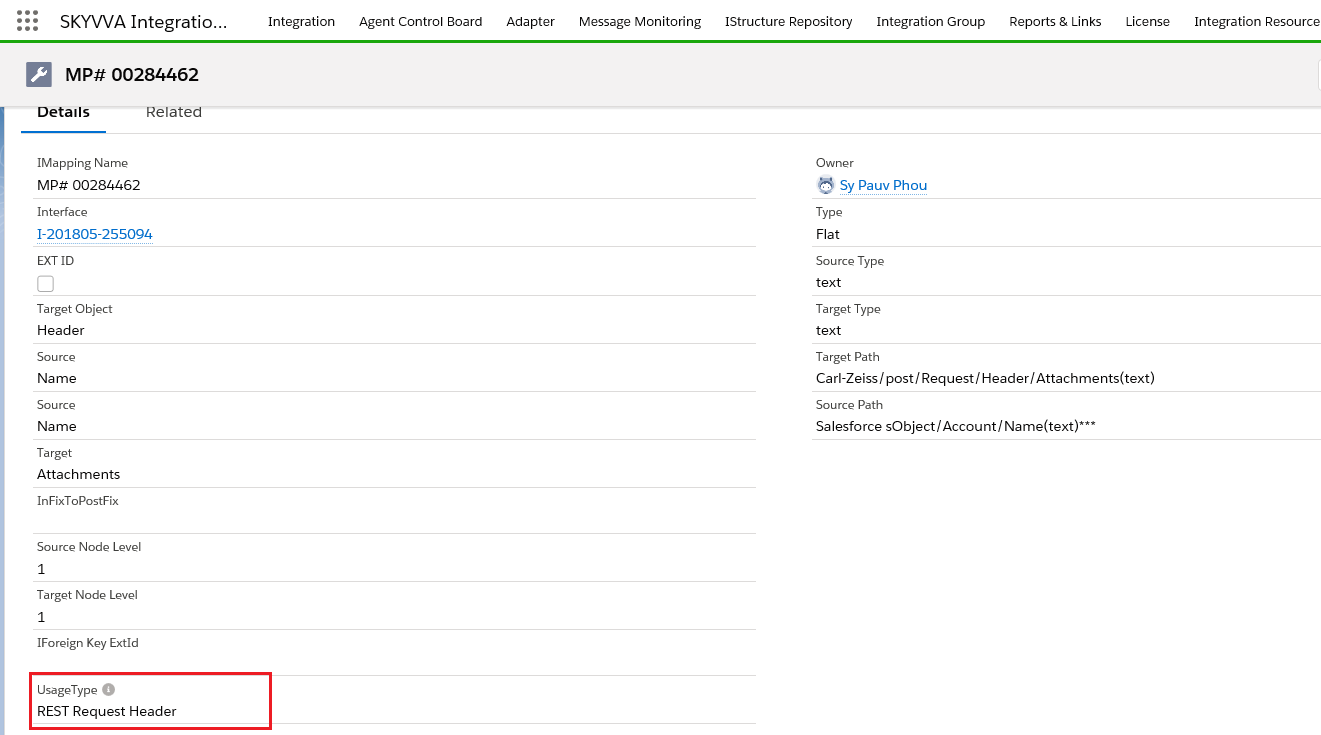

Check UsageType in UsageType Field:

Please verify it with the message type: Result: it is the same Imapping Details
